PU16F LTE

Code: 217455 Category:

£0.00

1 in stock

UHF band multiple x4 panels aerial complete with F connector.

  • Steel reflector and aluminium radiant elements.
  • The very low vertical section allows installation in locations with particular climatic conditions, for example in snowy areas.
  • This aerial benefits from a built in 4G LTE filter within the dipole to guarantee high signal quality and excellent LTE filtering.
  • White plastic parts.

1 in stock

Technical Chars

Code 217455
Elements no. 16
Band UHF
Channel E21-E60
Bandwidth MHz 470-790
Gain dBi 18.5
Front/Back ratio dB 28
Return loss dB -10
Beamwidth (-3dB) ° ±10
Wind load at 120km/h (720N/m²) kg (N) 26 (255.06)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 167 x 72
Quantity Masterbox pcs 1
Unit weight kg 4.9
Total weight kg 5.3
Accessories
Horizontal polarization Included
Horizontal polarization Tilt adjustment N.P.
Vertical polarization N.P.
Vertical polarization Tilt adjustment N.P.
Auxiliary boom N.P.
Gain Pattern

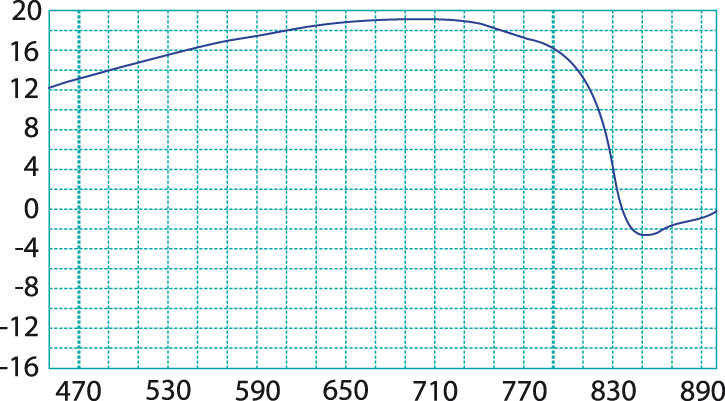

Gain

Pattern

This post is also available in: English

Additional information

Manuale

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Manuali_AVD/217455_PU16F_LTE_MA.pdf

Immagine HD

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Product/Antenne/217455_PU16F_LTE_HR.jpg

Declaration of Conformity available on ce.fracarro.com
