Code: 217911 Category:


1 in stock

Broadband biconical aerial complete with F connector and tube reflectors.

  • No tool needs for mounting BLU series, thanks to premounted elements, quick coupling radiator and reflectors and mast bracket with zenith adjustment and wingnut.
  • 4G LTE filter inserted in the radiator dipole.
  • High gain, optimum impedance adaptation and excellent directivity.
  • BLU coupling design of the band III reflector is Exclusive patents of Fracarro.

1 in stock

Technical Chars

Code 217911
Elements no. 4 / 8
Band 3+DAB / UHF
Channel E5-E12 + DAB / E21-E60
Bandwidth MHz 174-240 / 470-790
Gain dBi 7 / 13
Front/Back ratio dB 20 / 32
Return loss dB -14 / -18
Beamwidth (-3dB) ° ±30 / ±26
Wind load at 120km/h (720N/m²) kg (N) 9 (88.2)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 118 x 100
Quantity Masterbox pcs 8
Unit weight kg 2.76
Total weight kg 26.0
Horizontal polarization Included
Horizontal polarization Tilt adjustment Included
Vertical polarization Included
Vertical polarization Tilt adjustment Included
Auxiliary boom N.P.

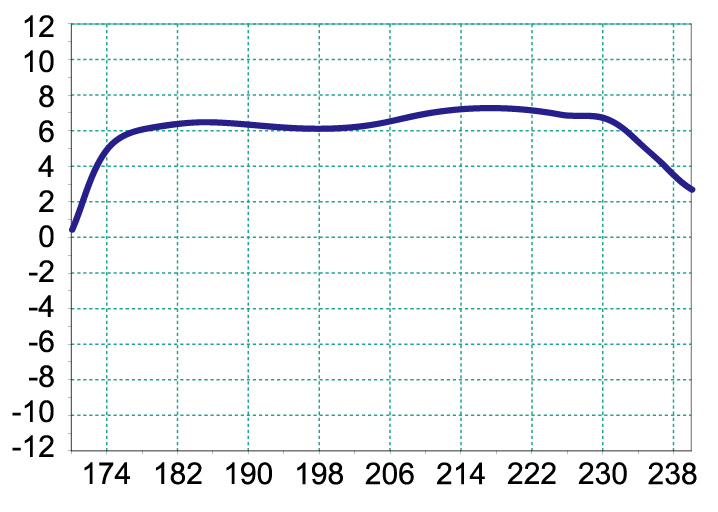

Gain Pattern
