ANT1200A

Code: 213001 Category:

£0.00

1 in stock

FM band aerial complete with F connector. Different design for the radio signals reception.

1 in stock

Technical Chars

Code 213001
Elements no. 1
Band FM
Bandwidth MHz 87.5-108
Gain dBi 2.1
Front/Back ratio dB Omni
Return loss dB -16
Beamwidth (-3dB) ° 360
Wind load at 120km/h (720N/m²) kg (N) 3 (29.43)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 96 x 77
Quantity Masterbox pcs 10
Unit weight kg 0.90
Total weight kg 10.6
Accessories
Horizontal polarization Included
Horizontal polarization Tilt adjustment N.P.
Auxiliary boom N.P.
Gain Pattern

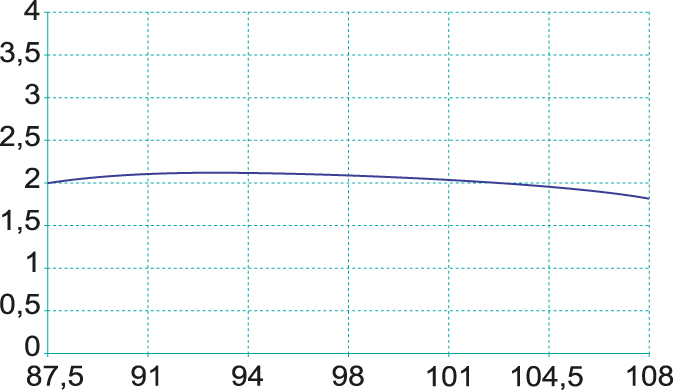

Gain

Pattern

This post is also available in: English

Additional information

Manuale

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Manuali_AVD/213001_ANT1200A_MA.pdf

Immagine HD

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Product/Antenne/213001_ANT1200A_HR.jpg

Declaration of Conformity available on ce.fracarro.com
