DAB

Code: 213010 Category:

£0.00

1 in stock

DAB band aerial complete with F connector. Different design for the digital radio signals reception.

1 in stock

Technical Chars

Code 213010
Elements no. 1
Band DAB
Channel DAB
Bandwidth MHz 216-240
Gain dBi 2.1
Front/Back ratio dB Omni
Return loss dB -16
Beamwidth (-3dB) ° 360
Wind load at 120km/h (720N/m²) kg (N) 2 (19.62)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 59 x 8
Quantity Masterbox pcs 8
Unit weight kg 0.54
Total weight kg 4.4
Accessories
Horizontal polarization Included
Horizontal polarization Tilt adjustment N.P.
Auxiliary boom N.P.

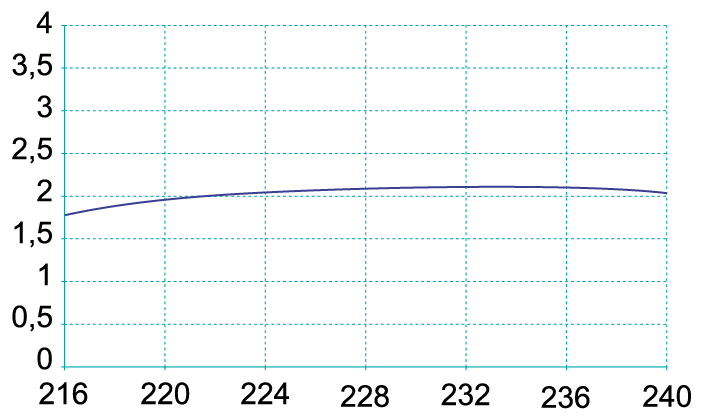

Gain Pattern

Gain

Pattern

This post is also available in: English

Additional information

Manuale

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Manuali_AVD/213010_DAB_MA.pdf

Immagine HD

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Product/Antenne/213010_DAB_HR.jpg

Declaration of Conformity available on ce.fracarro.com
