BLU10HD 5G

Code: 217915 Category:

£0.00

1 in stock

10 elements UHF band biconical aerial complete with F connector and grid reflectors.

  • No tool needs for mounting BLU series, thanks to premounted elements, quick coupling radiator and reflectors and mast bracket with zenith adjustment and wingnut.
  • 5G and 4G LTE filter inserted in the radiator dipole.
  • High gain, optimum impedance adaptation and excellent directivity.

1 in stock

Technical Chars

Code 217915
Elements no. 10
Band UHF
Channel E21-E48
Bandwidth MHz 470-694
Gain dBi 15,5
Front/Back ratio dB 30
Return loss dB -16
Beamwidth (-3dB) ° ±24
Wind load at 120km/h (720N/m²) kg (N) 7.2 (70.56)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 119 x 50
Quantity Masterbox pcs 10
Unit weight kg 2.22
Total weight kg 24.6
Accessories
Horizontal polarization Included
Horizontal polarization Tilt adjustment Included
Vertical polarization Included
Vertical polarization Tilt adjustment Included
Auxiliary boom N.P.
Gain Pattern

Gain

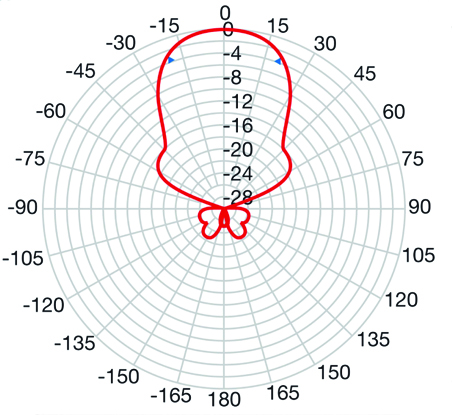

Pattern

This post is also available in: English

Additional information

Manuale
Immagine HD

Declaration of Conformity available on ce.fracarro.com
