BLU22HD 5G

Code: 217916 Category:

£0.00

1 in stock

22 elements UHF band biconical aerial complete with F connector and grid reflectors.

  • No tool needs for mounting BLU series, thanks to premounted elements, quick coupling radiator and reflectors and mast bracket with zenith adjustment and wingnut.
  • 5G and 4GLTE filter inserted in the radiator dipole.
  • High gain, optimum impedance adaptation and excellent directivity.

1 in stock

Technical Chars

Code 217916
Elements no. 22
Band UHF
Channel E21-E48
Bandwidth MHz 470-694
Gain dBi 18
Front/Back ratio dB 30
Return loss dB -18
Beamwidth (-3dB) ° ±19
Wind load at 120km/h (720N/m²) kg (N) 12.2 (119.65)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 242 x 50
Quantity Masterbox pcs 2
Unit weight kg 3.54
Total weight kg 7.5
Accessories
Horizontal polarization Included
Horizontal polarization Tilt adjustment Included
Vertical polarization Included
Vertical polarization Tilt adjustment Included
Auxiliary boom N.P.
Gain Pattern

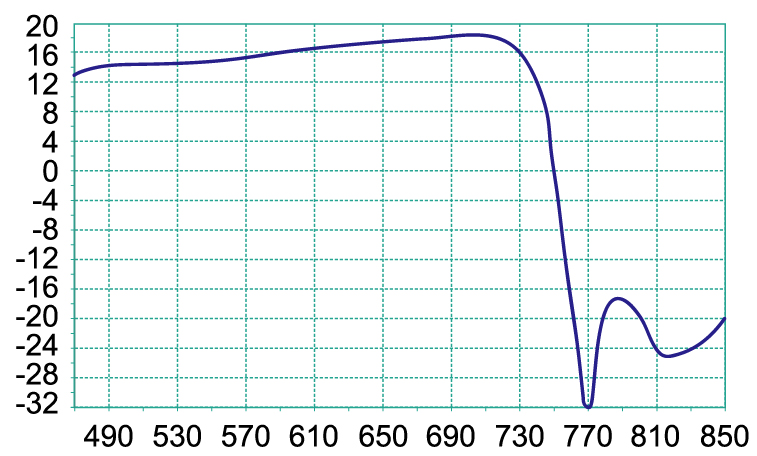

Gain

Pattern

This post is also available in: English

Additional information

Manuale
Immagine HD

Declaration of Conformity available on ce.fracarro.com
