5 elements UHF band Loop Yagi aerial complete with F connector and grid reflector.

  • No tool needs for mounting ALPHA series, thanks to premounted elements, quick coupling radiator and reflectors and mast bracket with zenith adjustment and wingnut.
  • 4G LTE filter inserted in the radiator dipole.
  • Excellent gain, impedance matching and directivity.
  • Exclusive design patented by Fracarro.

1 in stock

Technical Chars

Code 213218
Elements no. 5
Band UHF
Channel E21-E60
Bandwidth MHz 470-790
Gain dBi 14
Front/Back ratio dB 38
Return loss dB -18
Beamwidth (-3dB) ° ±22
Wind load at 120km/h (720N/m²) kg (N) 5.7 (55.86)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 81 x 50
Quantity Masterbox pcs 10
Unit weight kg 2.77
Total weight kg 31.0
Horizontal polarization Included
Horizontal polarization Tilt adjustment Included
Vertical polarization Included
Vertical polarization Tilt adjustment Included
Auxiliary boom N.P.

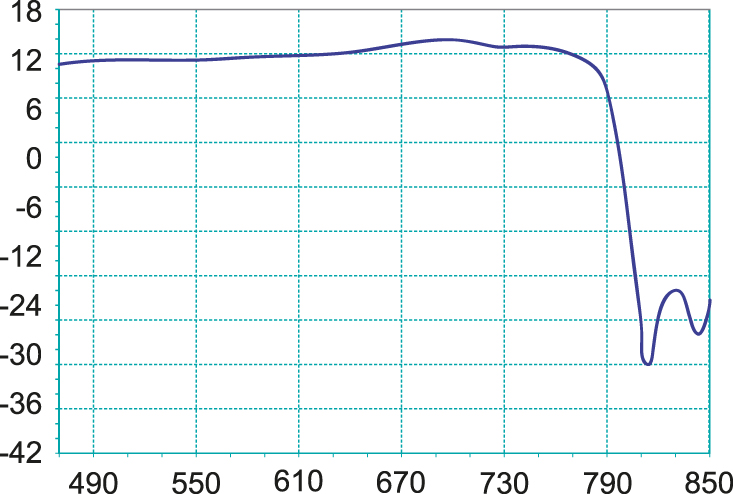

Gain Pattern
