BLU5HDLTE

Code: 217910 Category:

£0.00

1 in stock

UHF band biconical aerial complete with F connector and grid reflectors.
Tool less mounting BLU series, thanks to premounted elements, quick coupling radiator and reflectors and mast bracket with zenith adjustment and wingnut.
High gain, optimum impedance adaptation and excellent directivity.
LTE filter inserted in the radiator dipole.

  • Biconic UHF band antenna with F connector
  • Pre-assembled directors, radiator and quick-coupling reflectors on a slide already present on the cradle. Assembly is completed without the aid of any tools
  • Particular attention in the choice of materials to obtain a higher strength
  • High gain, excellent impedance matching and excellent directivity
  • Innovative attachment to the mast with standard adjustment and knurled surface that allows excellent resistance and seal to the mast and butterfly nut to be able to tighten it without the aid of any tool
  • An LTE filter has been inserted in the radiator dipole to guarantee the quality of the distributed signal and to obtain excellent filtering of the interfering signals in the LTE band (790-860) reserved for mobile telephony

1 in stock

Description

BLU5HDLTE
Code 217910
Elements no. 5
Band UHF
Channel E21-E60
Bandwidth MHz 470-790

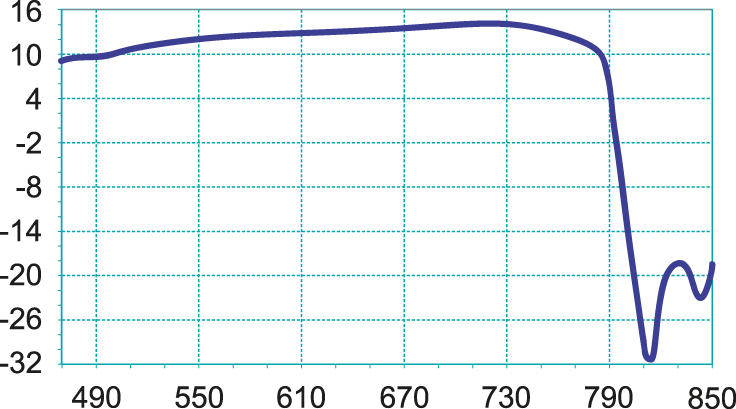

Gain dBi 14
Front/Back ratio dB 30
Return loss dB -16
Beam width (-3dB) ° ±25
Wind load at 120km/h (720N/m²) kg (N) 5.7 (55.86)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 84 x 50
Quantity Master box pcs 10
Unit weight kg 1.75
Total weight kg 19.4
Accessories
Horizontal polarization Included
Horizontal polarization Tilt adjustment Included
Vertical polarization Included
Vertical polarization Tilt adjustment Included
Auxiliary boom N/A

This post is also available in: ENGLISH

Additional information

Manuale

https://fracarro.com/wp-content/uploads/assets/Manuali/Line_AVD/217910_BLU5HD_LTE_MA.pdf

Immagine HD

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Product/Antenne/213104_TAULTEKILLER+_HR.jpg

Declaration of Conformity available on ce.fracarro.com
