Premounted 4 elements and high quality Band III aerial complete with F connector.
- High gain, optimum impedance adaptation and excellent directivity.
- Exclusive Fracarro design
BLV4F
£0.00
1 in stock
1 in stock
Technical Chars
| Code | 218038 | |
| Elements | no. | 4 |
| Band | 3 | |
| Channel | E5-E12 | |
| Bandwidth | MHz | 174-230 |
| Gain | dBi | 10.5 |
| Front/Back ratio | dB | 20 |
| Return loss | dB | -23 |
| Beamwidth (-3dB) | ° | ±31 |
| Wind load at 120km/h (720N/m²) | kg (N) | 3.0 (29.43) |
| Connector | Type | F |
| Impedance | Ω | 75 |
| Max mast (Ø) | mm | 60 |
| Dimensions (L x H) | cm | 64 x 87 |
| Quantity Masterbox | pcs | 10 |
| Unit weight | kg | 1.23 |
| Total weight | kg | 14.5 |
| Accessories | ||
| Horizontal polarization | Included | |
| Horizontal polarization Tilt adjustment | Included | |
| Vertical polarization | PV10 (210011) | |
| Vertical polarization Tilt adjustment | PV10 (210011) | |
| Auxiliary boom | N.P. |
| Gain | Pattern |
 |
 |

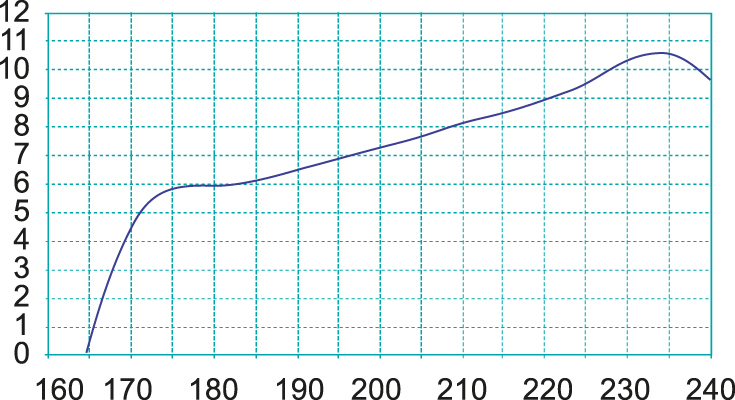

Gain
Pattern
This post is also available in: English
Additional information
| Manuale | |
|---|---|
| Immagine HD | https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Product/Antenne/218038_BLV4F_HR.jpg |
Declaration of Conformity available on ce.fracarro.com
