BLV6F

Code: 218058 Category:

£0.00

1 in stock

Premounted 6 elements and high quality Band III aerial complete with F connector.

  • High gain, optimum impedance adaptation and excellent directivity.
  • Exclusive Fracarro design

1 in stock

Technical Chars

Code 218058
Elements no. 6
Band 3
Channel E5-E12
Bandwidth MHz 174-230
Gain dBi 13
Front/Back ratio dB 24
Return loss dB -22
Beamwidth (-3dB) ° ±24
Wind load at 120km/h (720N/m²) kg (N) 4.5 (44.14)
Connector Type F
Impedance Ω 75
Max mast (Ø) mm 60
Dimensions (L x H) cm 149 x 87
Quantity Masterbox pcs 3
Unit weight kg 2.00
Total weight kg 6.7
Accessories
Horizontal polarization Included
Horizontal polarization Tilt adjustment Included
Vertical polarization PV10 (210011)
Vertical polarization Tilt adjustment PV10 (210011)
Auxiliary boom N.P.
Gain Pattern

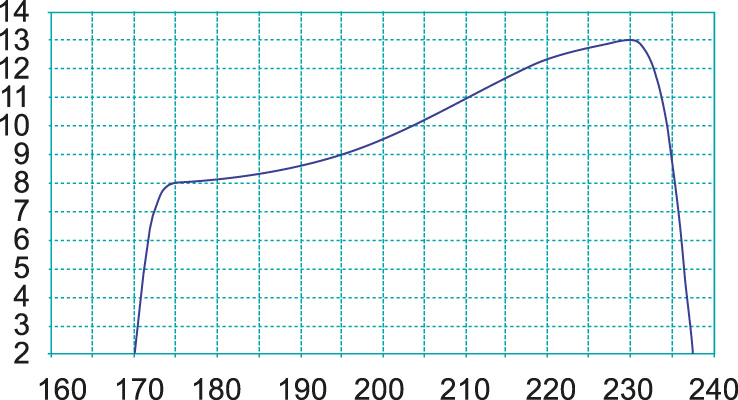

Gain

Pattern

This post is also available in: English

Additional information

Manuale
Immagine HD

https://fracarro.com/wp-content/uploads/assets/high/Line_AVD/Product/Antenne/218058_BLV6F_HR.jpg

Declaration of Conformity available on ce.fracarro.com
