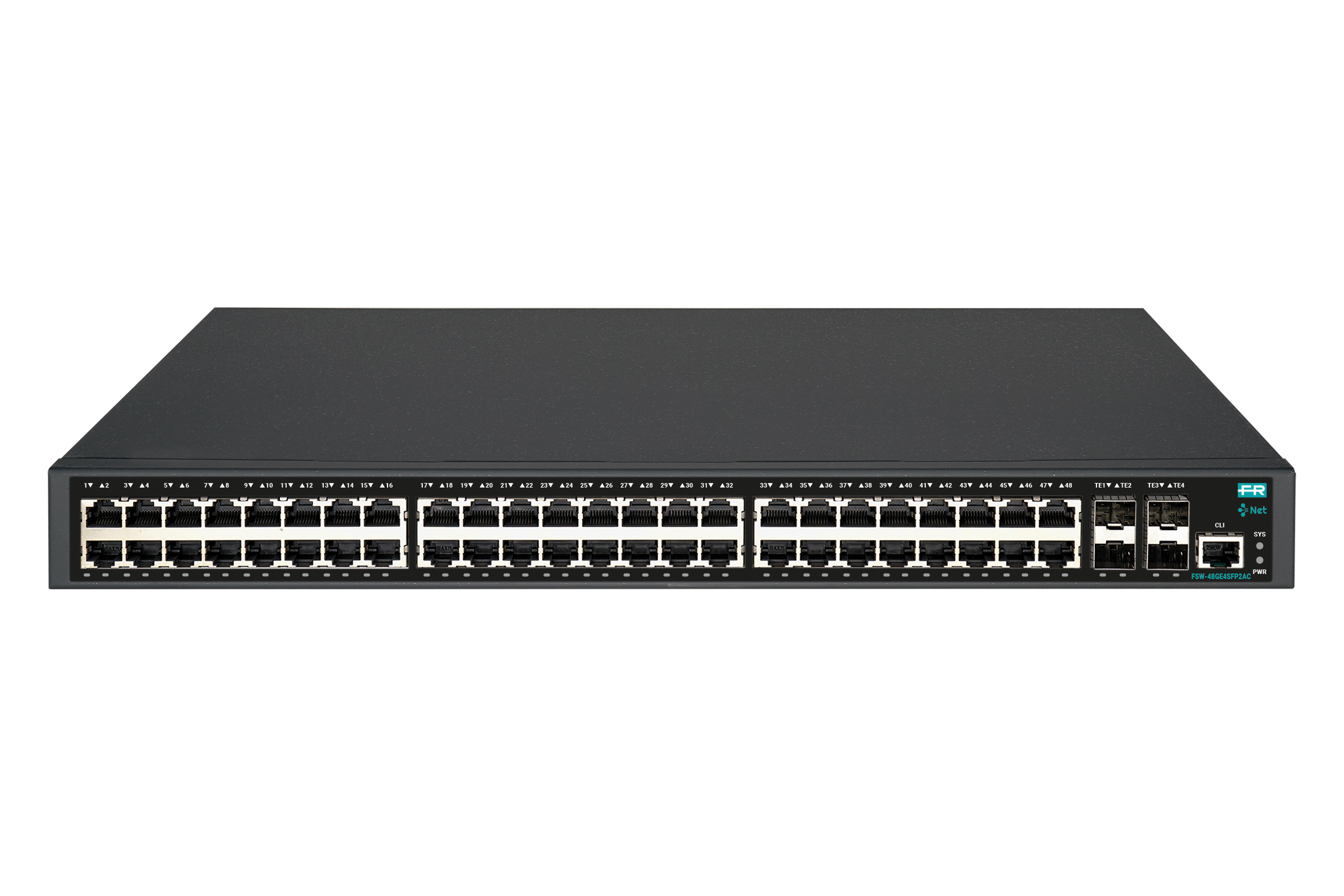

FSW-48GE4SFP2AC

Codice 287625

Managed

Switch Layer 3 in grado di fornire flessibilità, prestazioni e scalabilità.


Le 48 porte GE lo rendono ideale come centro stella per il collegamento di molteplici servizi, server, controller, etc.


Le 4 porte SFP+ a 10GE permettono il collegamento stack o uplink con altri switch della stessa serie.

Caratteristiche tecniche

  • Switch di nuova generazione Layer 3;
  • 48 porte 10/100/1000 GE;
  • 4 porte di uplink SFP+ 10GE;
  • Backplane 336Gbps;
  • Forwarding rate (64 bytes) 148Mpps;
  • QoS & QinQ;
  • Fino a 4096 VLAN;
  • Multicast.
FSW-48GE4SFP2AC
Codice 287625
Ingresso LAN 48x 10/100/1000M auto-negoziabile, 4x SFP+
Console RJ45 RJ45 1
Backplane Gbps 336
Forwarding rate Mpps/64bytes 148
Numero ventole 2
Noise@25°C dBA 45
Forwarding mode Store-forward
Memoria flash MB 32
Memoria DRAM MB 256
MAC 32k
Buffer size MB 1.5
Interfacce VLAN 64
Routing table RIB 2040
MTBF h >50000
Funzioni
Management Console, Telnet, SSH v1/v2, HTTP, HTTPS, SNMP v1/v2/v3, RMOM
Applicazioni
  • Spanning Tree: 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP), BPDU guard, root guard and loopback guard IP: Static route, RIP, OSPF, IPv4/IPv6 dual stack
  • IPv6: ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet, IPv6 neighbor discovery, Path MTU, Discovery, MLD V1, MLD snooping, IPv6 Static Routing, RIPng, OSPFv3, Manual tunnel, ISATAP tunnel,6 to 4 tunnel
  • Reliablity: Static/LACP link aggregation, Interfaccia di backup, EAPS and ERPS, ISSU uninterrupted system upgrade, BVSS, ups to 16-units per stack, VRRP, UDLD
VLAN 4096 Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN & Voice-VLAN
MULTICAST Support IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter
QoS CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/DSCP priority re- labeling, SP, WRR and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping
DHCP
  • DHCP server/relay/client
  • DHCP snooping/option82
Security
  • Port isolation, Port security, and “IP+MAC+port” binding,MAC sticky DAI & IP source guard PPPoE+
  • IEEE 802.1x, AAA, Radius and BDTacacs+
  • L2/L3/L4 ACL flow identification and filtration Anti-attack from DDoS,TCP’s SYN, Flood, UDP Flood
  • Broadcast/multicast/unknown unicast stormcontrol - MD5, SHA-256, RSA-1024, AES256
Caratteristiche principali
Tensione alimentazione Vac/Hz 100-240 / 50-60
Consumo W <40
Temperatura lavoro °C Da 0 a +50
Umidità relativa % da 10 a 90 (senza condensa)
Dimensioni e imballo
codice EAN 8016978106554
Dimensioni imballo mm 576x448x94
Dimensioni prodotto mm 440x280x44
Peso lordo Kg 5.5
Peso Kg 4.3
