PP12
Code 220370
CAD

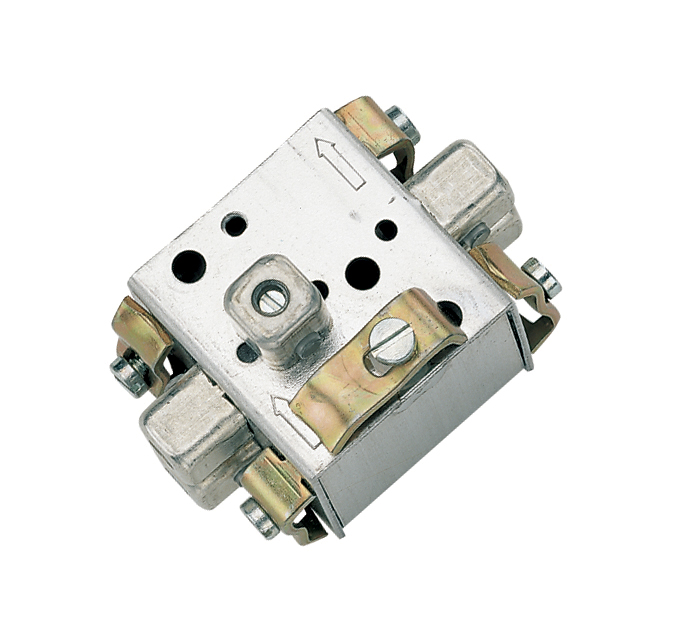

2-output clamp splitter in TV band (47-862MHz).
Technical chars
- Metal enclosure with screw terminals for complete shielding.
- To make the system more robust, it is recommended to use a divider to split the signal and a TAP to directly serve the outlets.
- V.S.W.R. <1.2.
| PP12 | ||
| Code | 220370 | |
| Outputs | 2 | |
| Output separation | ||
|---|---|---|
| 47-68MHz | dB | 18 |
| 174-230MHz | dB | 18 |
| 470-606 MHz | dB | 18 |
| 606-862 MHz | dB | 18 |
| Specifications | ||
| Insertion loss | dB | 4 |
| Dimensions and packaging | ||
| Pieces | 10 | |
| EAN code | 8016978013807 | |
| Multiple EAN | 8016978013814 | |
| Packaging dimensions | mm | 170 x 75 x 45 |
| Packaging weight | kg | 0.48 |
