Code 280726
PA-DE

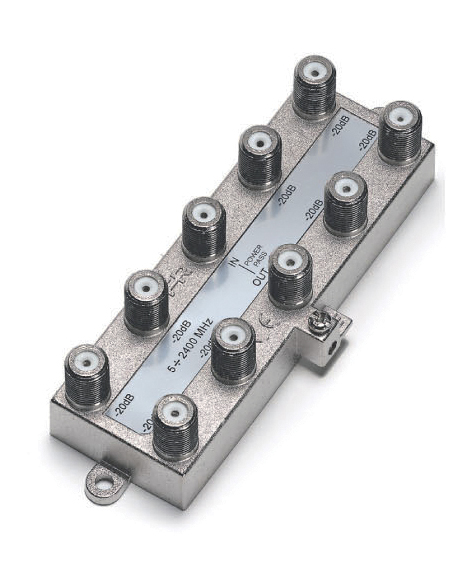

8-output vertical tap with 20dB attenuation and F connector for TV and Satellite band (5-2400MHz).
DE8-20
Technical chars
- The elegant and compact design allows installation in any junction box.
- Die-cast and nickel-plated, it ensures high performance, with very low insertion loss, high return loss and insulation.
- Prepared for earth connection and wall mounting.
- DC is allowed to pass between the feed-through output and the input.
| DE8-20 | ||
| Code | 280726 | |
| Taps | 8 | |
| Insertion loss | ||
|---|---|---|
| RC 5-40MHz | dB | 2.5 |
| TV 47-862MHz | dB | 3 |
| SAT 950-1750MHz | dB | 4.5 |
| SAT 1750-2150MHz | dB | 5 |
| SAT 2150-2400MHz | dB | 5.5 |
| Tap loss | ||
| RC 5-40MHz | dB | 19 |
| TV 47-862MHz | dB | 19 |
| SAT 950-1750MHz | dB | 19 |
| SAT 1750-2150MHz | dB | 19 |
| SAT 2150-2400MHz | dB | 20 |
| Outputs Isolation | ||
| RC 5-40MHz | dB | 30 |
| TV 47-862MHz | dB | 23 |
| SAT 950-1750MHz | dB | 20 |
| SAT 1750-2150MHz | dB | 20 |
| SAT 2150-2400MHz | dB | 20 |
| Specifications | ||
| Tap loss | dB | 20 |
| Conformity | EN50083-2:2012/A1:2015 | |
| Dimensions and packaging | ||
| Pieces | 10 | |
| EAN code | 8016978034888 | |
| Multiple EAN | 8016978035083 | |
| Packaging dimensions | mm | 310 x 125 x 50 |
| Product dimensions | mm | 101 x 51 x 25 |
| Packaging weight | kg | 1.4 |
