TAPS212
Code 287313
SPTR e TAP

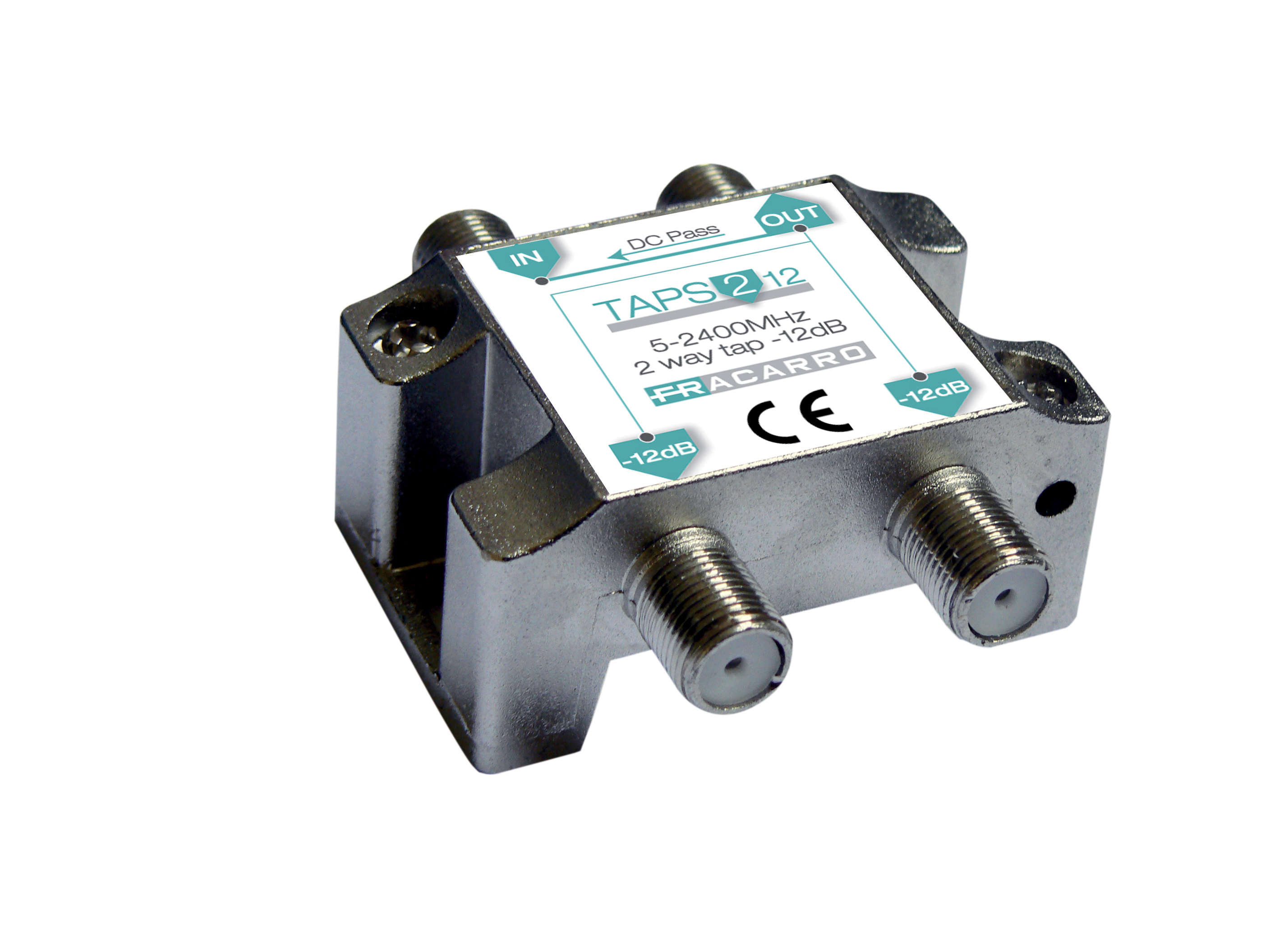

2-output “top-down” horizontal tap with 12dB attenuation and F connector for TV and Satellite band (5-2400MHz).
Technical chars
- The elegant and compact design allows installation in any junction box.
- The die-cast zinc products in this series ensure high performance, with very low insertion losses even at SAT frequencies and high isolation between outputs.
- Prepared for earth connection and wall mounting.
- DC is allowed to pass between the through output and input.
| TAPS212 | ||
| Code | 287313 | |
| Taps | 2 | |
| Insertion loss | ||
|---|---|---|
| RC 5-40MHz | dB | 3 |
| TV 47-862MHz | dB | 3 |
| SAT 950-1750MHz | dB | 3.5 |
| SAT 1750-2150MHz | dB | 4 |
| SAT 2150-2400MHz | dB | 5 |
| Tap loss | ||
| RC 5-40MHz | dB | 12 |
| TV 47-862MHz | dB | 12 |
| SAT 950-1750MHz | dB | 12 |
| SAT 1750-2150MHz | dB | 12 |
| SAT 2150-2400MHz | dB | 12 |
| Outputs Isolation | ||
| RC 5-40MHz | dB | 25 |
| TV 47-862MHz | dB | 25 |
| SAT 950-1750MHz | dB | 25 |
| SAT 1750-2150MHz | dB | 22 |
| SAT 2150-2400MHz | dB | 21 |
| Specifications | ||
| Tap loss | dB | 12 |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978094950 | |
| Packaging dimensions | mm | 55 x 64 x 27 |
| Product dimensions | mm | 55 x 64 x 27 |
| Packaging weight | Kg | 0.085 |
