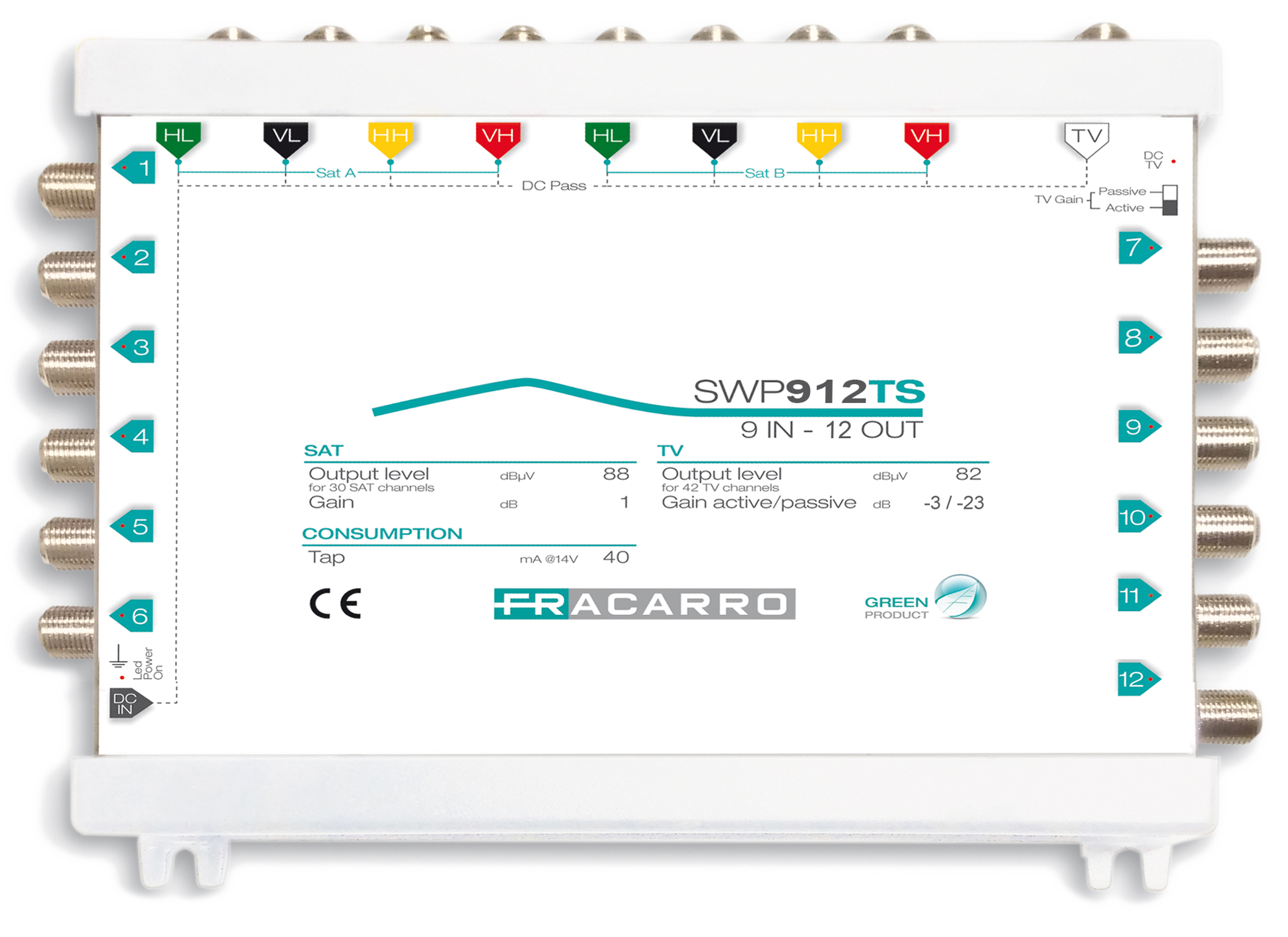

SWP912TS
Code 287351
9 Inputs
9-input compact multiswitch with 12 output taps; DIP switch to select active and passive TV gain.
Technical chars
- Satellite band up to 2300MHz.
- High output level to cover long cable distances(60m with 6.7mm cable).
- Each port has an LED to show correct reception of DiSEqC commands.
- Return channel included when TV gain is passive (5-65MHz).
- When TV gain is passive, the product is fully powered by the receivers, the power supply only serves to power the active TV gain, other amplifiers and LNBs.
- External PSU1215TS power supply (12V, 1.5A) included in the package with Male Jack connector (2.1x5.5x12; inside positive, outside negative) to optimise installation space and reduce maintenance time.
- Small size due to matrix switching system with connectors on both sides.
- Easy to install thanks to standard input colouring.
| SWP912TS | ||
| Code | 287351 | |
| Inputs | 8 SAT, 1 TV | |
| Taps | 12 | |
| SAT | ||
|---|---|---|
| Bandwidth | MHz | 950-2300 |
| Gain | dB | -3/1 |
| Max Output level | dBµV | 100 |
| TV | ||
| TV bandwidth | MHz | Active TV: 47-862; Passive TV: 5-862 |
| Gain (Active) | dB | 0 |
| Gain (Passive) | dB | -20 |
| Max Output level | dBµV | Active TV: 95 |
| Return channel | ||
| Bandwidth | MHz | Passive TV: 5-65 |
| Consumption | ||
| Tap | mA | 50 |
| Power supply voltage | Vdc/A | 120-240 / 50-60 |
| Absorption | mA | Active TV: 160@12V; Passive TV: entirely fed by the receiver |
| Maximum power supply current SAT | mA | Passive TV: 1500; Active TV: 1340 |
| Specifications | ||
| Dimensions power supply | mm | 90 x 70 x 45 |
| Operating temperature | °C | -10 to +55 |
| SAT-SAT Isolation | dB | >30 |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978096985 | |
| Packaging dimensions | mm | 52 x 195 x 260 |
| Product dimensions | mm | 170 x 190 x 40 |
| Packaging weight | kg | 0.8 |
