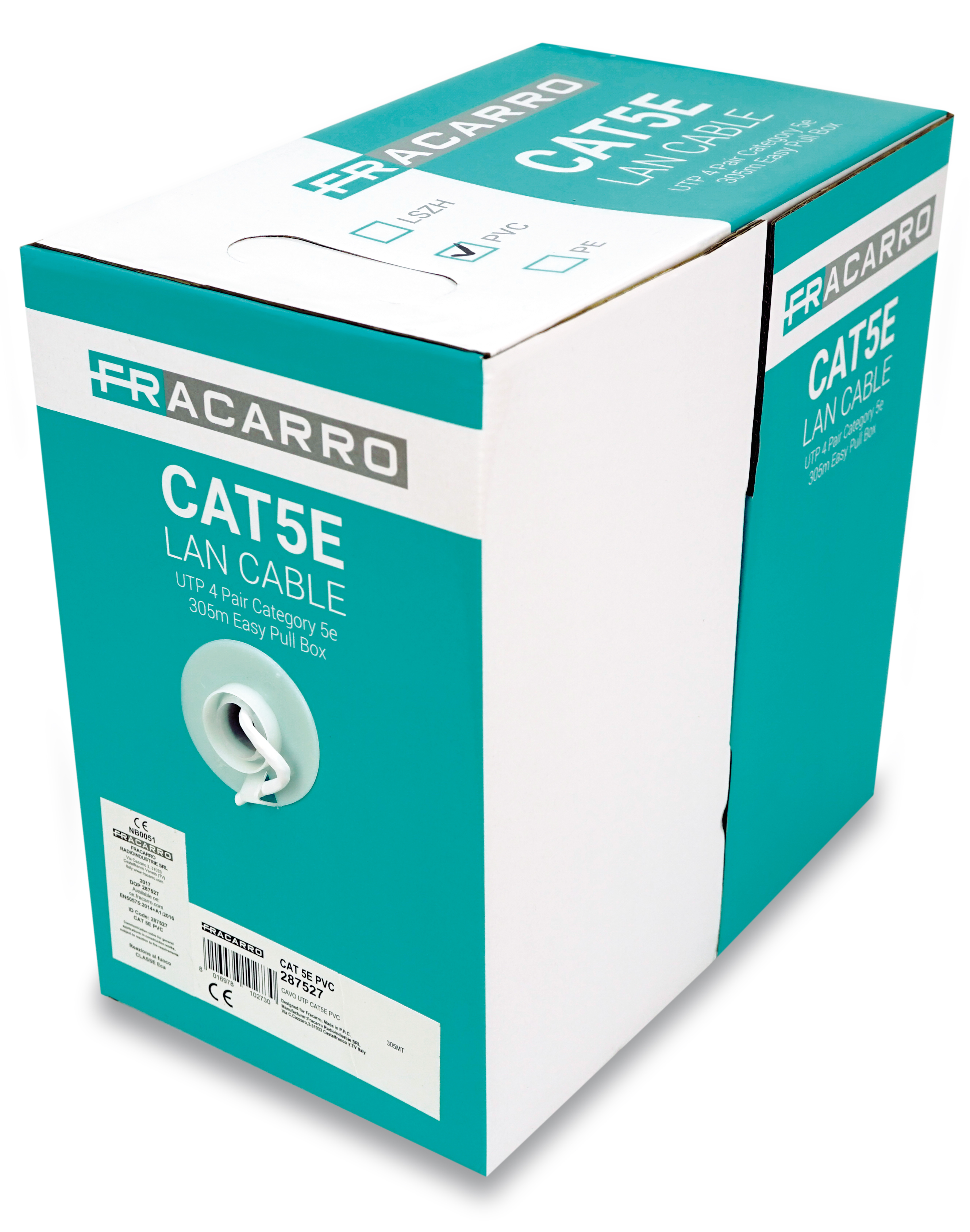

CAT5E LSZH
Code 287528
Indoor
Indoor CAT 5E network cable with LSZH sheathing, 305-m skein unwind cable consisting of 4 balanced 100 Ohm pairs with AWG 24 flexible red copper conductors. Features meet the requirements of Cat. 5E Class D up to 100Mhz according to ANSI/TIA 568.2-D and ISO/IEC 11801 standards. Suitable for Gigabit Ethernet (IEEE 802.3ab) applications.
Technical chars
| CAT5E LSZH | ||
| Code | 287528 | |
| Reel Length | m | 305 |
| Cable type | CAT 5E U/UTP | |
| CPR | Eca | |
| Frequency range | MHz | 100 |
| Conformity | EN60322-1-2 EN50575:2014+A1:2016 available at ce.fracarro.com | |
| Standard test | ISO/IEC 11801, TIA EIA568C.2 | |
| Pulling strength | MPa | >10 |
| Stretching | % | >125 |
| Cold bending | No visible cracks (-20 ±2°C x 4h) | |
| Inner conductor | ||
|---|---|---|
| Material | Copper | |
| Diameter | mm | 0.48 +/-0.005 |
| AWG class | 24 | |
| Inner cables sheath | ||
| Inner cables sheath material | LSZH | |
| Inner cables sheath diameter | mm | 0.87 |
| Screen foil | HDPE; 0.20mm; 0% foam | |
| External sheath | ||
| Material | LSZH | |
| Diameter | mm | 4.9 |
| Thickness | mm | 0.5 |
| Colour | White RAL9016 | |
| Dimensions and packaging | ||
| Packing | Cardboard easy-pull |
|
| Pieces | 1 | |
| EAN code | 8016978102693 | |
| Packaging dimensions | mm | 310 x 410 x 210 |
| Packaging weight | Kg | 10 |
