OPC8I170C-SA-P

Code 287703

Indoor prewired

Indoor 170 m single-mode fibre optic cable with 8 fibres; 8 connectorized cable 10m long, staggered every 20m with SC/APC Simplex connectors and PULL element.

Very useful for laying the fibre on a riser and carrying services with 1 fibre on each of 8 floors, especially in GPON systems of hospitality.

It complies with the Cca class requirements according to the CPR EN 50575 standard.

Technical chars

Specifications
Code 287703

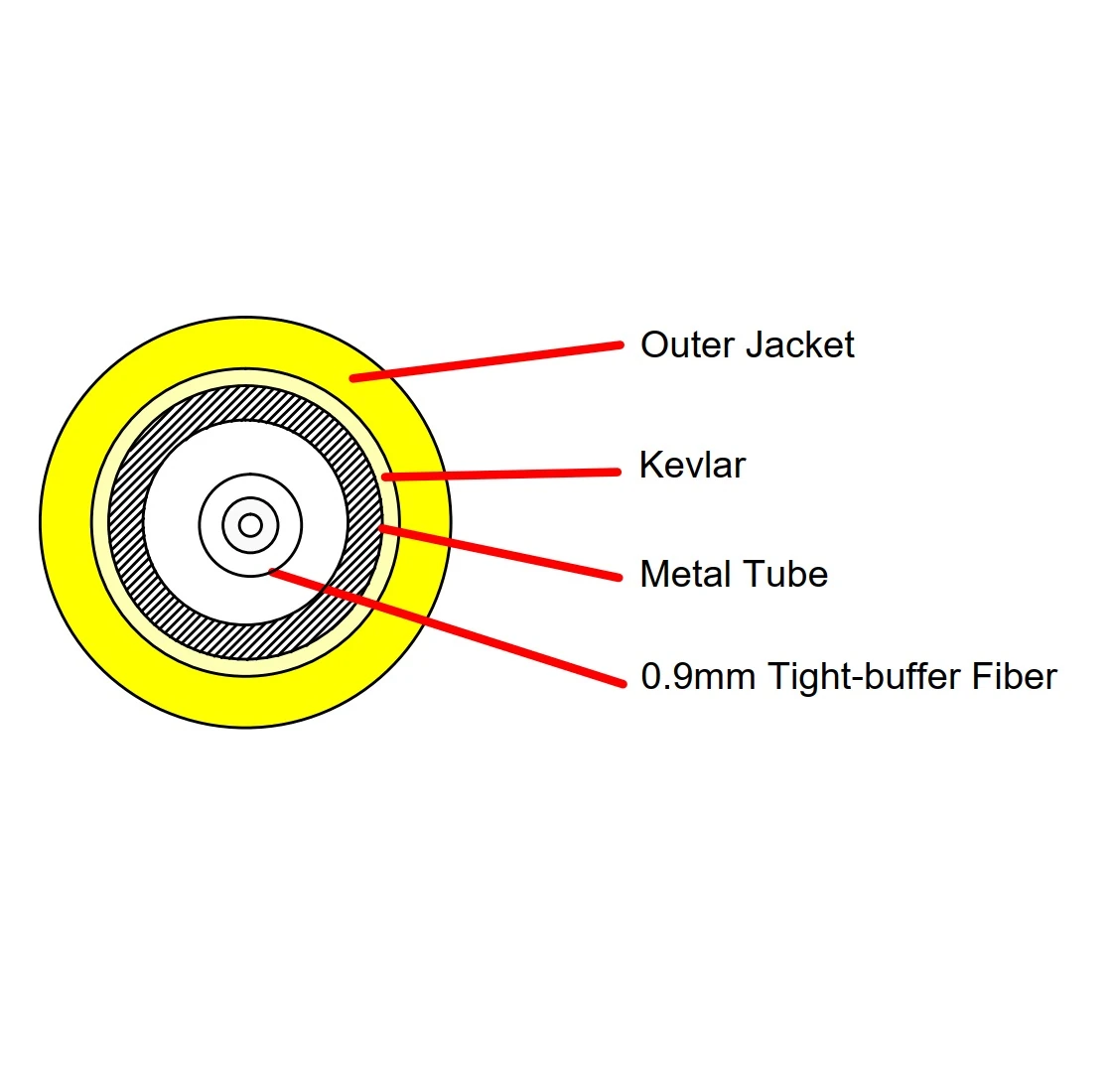

Fiber type Single-mode 9/125; buffered
Sheath LSZH, G657 A2
Colour Yellow
CPR Cca, s1a, d0, a1
Fibre no. 8
Fibre length m 170, with 4 pre terminated cables 10m long, staggered every 20m
Sheath diameter mm 3
Connectors SC/APC - SC/APC
Connector type Simplex PULL
Insertion loss dB < 0.25 (Grade B)
Dimensions and packaging
Pieces 1
EAN code 8016978107490
Packaging dimensions mm 330 x 330 x 330
Product dimensions mm 330 x 225
Packaging weight Kg 11.750
