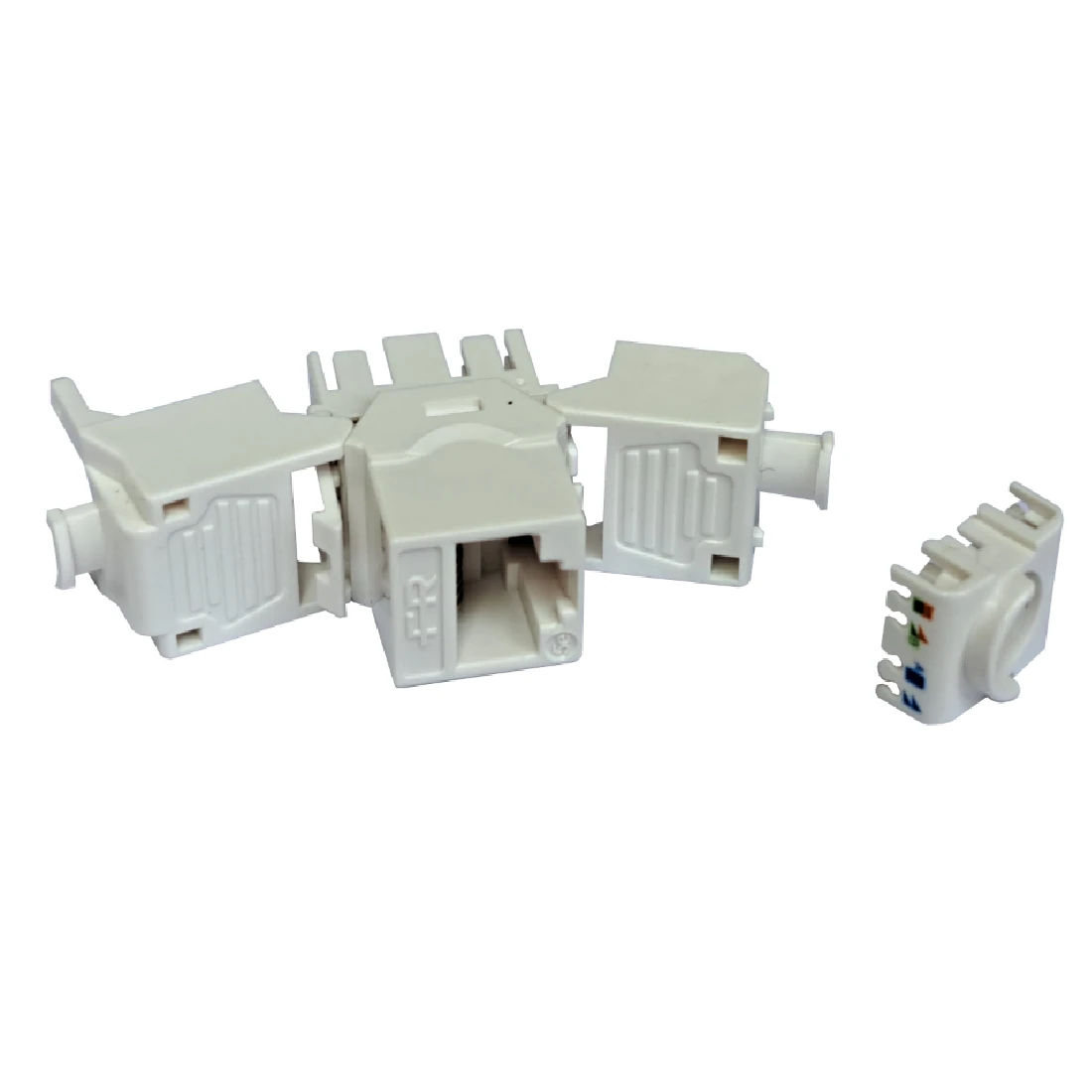

CAT6 Keystone
Code 287706
Keystone RJ45 jack
Keystone RJ-45 CAT 6 UTP receptacle for high-density installation solutions suitable for Gigabit ethernet data distributions. Quick and easy connection without the use of tools ensuring significant time savings during installation.
Technical chars
RJ45 CAT 6 UTP Class E Plug
Tool-free mounting
Supports TIA 568 A and B configurations
Also suitable for patch panel installations
Compatible with cables from AWG23 to AWG26
ATM 1200
1000BASET (Gigabit Ethernet)
1G FCBASE-T
| CAT6 Keystone | ||
| Code | 287706 | |
| Connector | Keystone RJ45 CAT 6 UTP | |
| Colour | White | |
| Contacts | Golden bronze over nickel | |
| Insulation material | UL 94 V-0 class flame retardant plastic material | |
| Total mating force | > 100g (800g on 8 conductors) | |
| Insertion-extraction life | > 750 | |
| Max. speed | ATM 1200; 1000BASE-T (Gigabit Ethernet); 1G FCBASE-T | |
| Dielectric withstanding voltage | 1000 Vdc for 1 min | |
| DC pass | A | 1.5 |
| Contact resistance | mOhm | 10 |
| Insulation resistance | MOhm | 500 |
| Impedence | Ohm | < 0.1 |
| Conformity | Class E, ANSI/TIA 568-B.2-1, ISO/IEC 11801, ISO/IEC 60603-7, YD/T 926.3-2009 | |
| Operating temperature | °C | -10 to +60 |
| Storage temperature | °C | -40 to +70 |
| Humidity | % | 10% - 90% RH |
| Dimensions and packaging | ||
|---|---|---|
| Pieces | 50 | |
| EAN code | 8016978107537 | |
