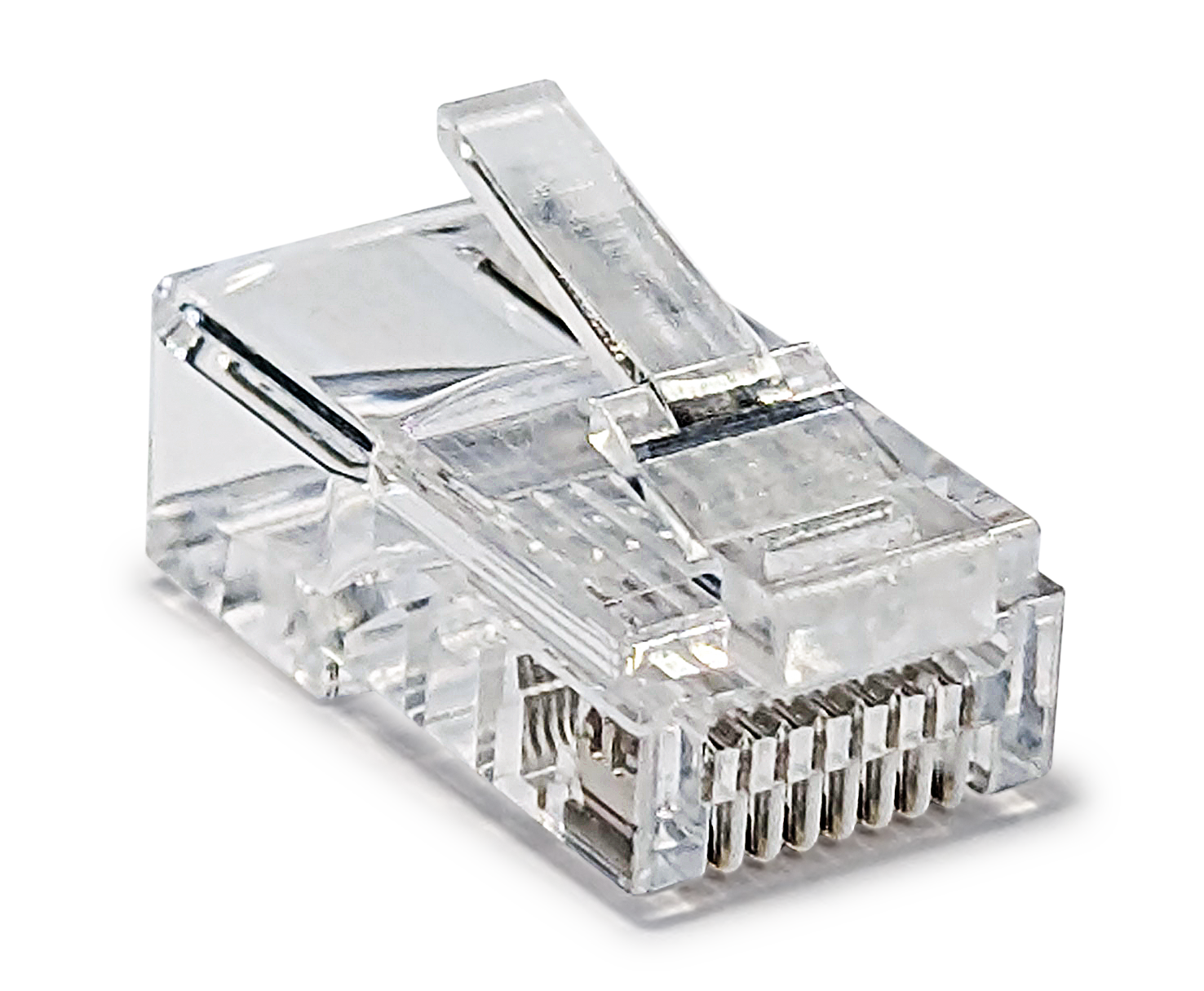

CAT6 PLUG Pass
Code 287709
RJ45 plug
Unshielded 8-pin RJ-45CAT 6 pass-through PLUG plug for connecting cables and making patch cords.
Technical chars
RJ-45 UTP Category 6 pass-through plug
750 insertions guaranteed
Maximum insertion force 20N
ATM 1200; 1000BASET (Gigabit Ethernet); 1G FCBASE-T
Easy to mount
| CAT6 PLUG Pass | ||
| Code | 287709 | |
| Connector | CAT 6 RJ45 feed-through | |
| Colour | Transparent | |
| AWG class | 23-26 | |
| Total mating force | < 20N | |
| Insertion-extraction life | > 750 | |
| Max. speed | ATM 1200; 1000BASET (Gigabit Ethernet); 1G FCBASE-T | |
| Dielectric withstanding voltage | < 125 Vac (1000 Vac for 1 min) | |
| DC pass | A | 1.5 @25°C |
| Contact resistance | mΩ | 20 |
| Insulation resistance | mΩ | 500 |
| Impedence | Ω | < 0.1 |
| Conformity | ROHS and REACH | |
| Operating temperature | °C | -25 to +55 |
| Dimensions and packaging | ||
|---|---|---|
| Packing | Plastic container | |
| Pieces | 100 | |
| EAN code | 8016978107681 | |
| Packaging dimensions | mm | 85 x 85 x 100 |
