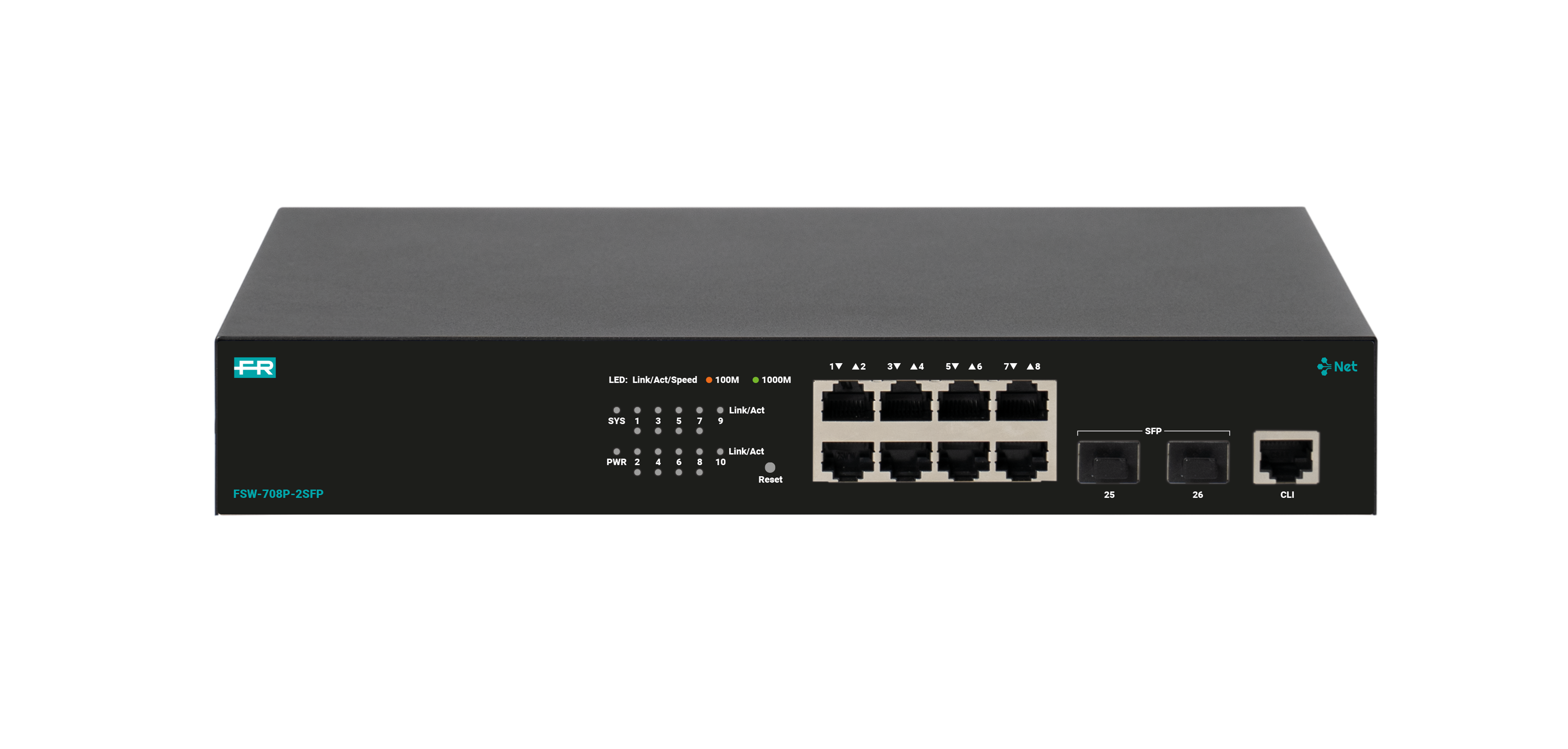

FSW-708P-2SFP

Code 287771

Managed swithes

The FSW-708-2SFP switch is a Layer 2 solution engineered to operate as an access node, the network entry point that connects end devices (CCTV, APs, VoIP, etc.) to the infrastructure. The hardware architecture is optimized for the management of IPTV streams sourced from professional Headend systems, such as 3DG-FLEX and GALAXIA, ensuring maximum efficiency in signal delivery to the end user. Advanced IGMP Snooping integration enables dynamic multicast traffic segmentation, which prevents intra-VLAN packet flooding and ensures stream integrity for UHD video surveillance and high-definition streaming applications requiring deterministic latency.

The device's hardware configuration features 8 Gigabit Ethernet interfaces with support for IEEE 802.3af/at (PoE/PoE+) standards, providing a total PoE Budget of 130W for the direct power supply of high-consumption network equipment, such as PTZ cameras or Wi-Fi Access Points. These ports are complemented by 2 x Gigabit SFP slots dedicated to uplink functions or for creating fiber-optic daisy-chain links.

Technical chars

Layer 2
8 PoE/PoE+ ports 10/100/1000 GE
2 ports 1G SFP
Switching capacity: 20Gbps
Forwarding rate: 15Mpps
Native Multicast/IGMP Snooping support
Power budget: 130W
Total output BTU (1000BTU/H=293W): 511.95
Fanless
Rack mount

Layer 2 Multicast Architecture

Layer 2 Optimization and Multicast Management

IGMP Snooping (v1/v2/v3): Performs Deep Packet Inspection (DPI) of control messages to dynamically generate the Multicast Forwarding Table (MFT). It prevents intra-VLAN flooding by isolating streams exclusively to ports with an active Join Report, thereby preserving access bandwidth.
IGMP Fast Leave: Enables immediate forwarding termination upon detection of a Leave message, bypassing standard query response intervals. This is critical for optimizing convergence times during channel switching (zapping) and preventing bandwidth spikes that cause jitter or pixel blocking on IPTV endpoints.
MVR (Multicast VLAN Registration): Optimized for Multi-tenant/Hospitality scenarios. It allows sharing a single Multicast Source VLAN (e.g., from a 3DG-FLEX headend) across multiple Receiver VLANs, eliminating flow duplication in the backbone while maintaining unicast traffic isolation between users.

Access Control (ACL) and Security

IGMP Filter: Granular per-port policies that restrict subscriptions to specific Multicast Group IPs. It ensures content security and protects the switch's Control Plane from saturation and DoS attacks based on IGMP flooding.
Transparent Pass-through: A bypass mode for the IGMP protocol on specific VLANs or interfaces, allowing video traffic to transit as native broadcast within the Layer 2 domain.
Hardware Protection & Storm Control: Architecture featuring hierarchical scheduling and Storm Control mechanisms for the automatic suppression of anomalous Broadcast, Multicast, and Unknown Unicast traffic. It supports privilege management via RBAC (Role-Based Access Control) for secure CLI access.

QoS Policies and Performance

Bandwidth Control: Traffic management via CAR (Committed Access Rate) on a per-port or per-flow basis to deliver guaranteed bandwidth across the 8 PoE ports.
Scheduling Algorithms: Advanced hardware queue management using SP (Strict Priority), WRR (Weighted Round Robin), or hybrid SP+WRR configurations for real-time traffic prioritization.


		FSW-708P-2SFP
Code		287771
LAN input		8 x 10/100/1000M PoE auto-negotiation, 2 x 1GE SFP
RJ45 console	RJ45	1
Backplane	Gbps	20
Forwarding rate	Mpps	15
POE power budget	W	130
Fans		0
Noise@25°C	dBA	0
Forwarding mode		Store-forward
Flash memory	MB	16
DRAM memory	MB	128
MAC		8k
Buffer size	MB	4.1
VLAN Interface		10
Routing table	RIB	512
MTBF	h	>50000
POE power budget	W	130
Functions
Management		Console, Telnet , SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON, TFTP, FTP, SFTP, NTP, ZTP (Zero Touch Provisioning), SPAN, RSPAN
Applications		Spanning Tree: 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP), BPDU guard, root guard and loopback guard IP: Static route, RIP, OSPF, 512 routing table, IP v4/v6 dual stack, DHCP Server/Client/Relay Reliablity: Static/LACP link aggregation, Interface backup, EAPS and ERPS, ISSU Jumbo frame: 9k
VLAN		4096 Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice VLAN
MULTICAST		IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, IGMP Filter, MVR
QoS		CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based, QoS,802.1P/DSCP priority, re-labeling, SP, WRR, and "SP+WRR", Tail-Drop, and trafficWRED, shaping flow monitoring and traffic shaping
DHCP		DHCP Server/Client/Relay
Security		Port isolation, Port security, and "IP+MAC+port" binding, MAC sticky, DHCP Snooping and option 82, DAI & IP source guard, PPPoE+ IEEE 802 .1x , Radius and BDTacacs+ L2/L3/L4 ACL flow identification and filtration Anti-attack from DDoS, TCP's SYN Flood, UDP Flood Broadcast/multicast/unknown unicast storm-control MD5, SHA-256, RSA-1024, AES256
Specifications
Power supply voltage	V	100-240 (50-60Hz)
Current consumption	W	<3 (no PoE), < 10 (PoE)
Operating temperature	°C	0 to +50
Relative humidity	%	10 to 90 (without condensation)
Dimensions and packaging
Packing		Power cable (Schuko plug) Rack mounting kit (screws and cage nuts not included) RJ45 to RS232 female serial cable
Pieces		1
EAN code		8016978108503
Packaging dimensions	mm	346 x 289 x 92
Product dimensions	mm	280 x 180 x 44
Packaging weight	kg	2.55
Weight	kg	1.55
