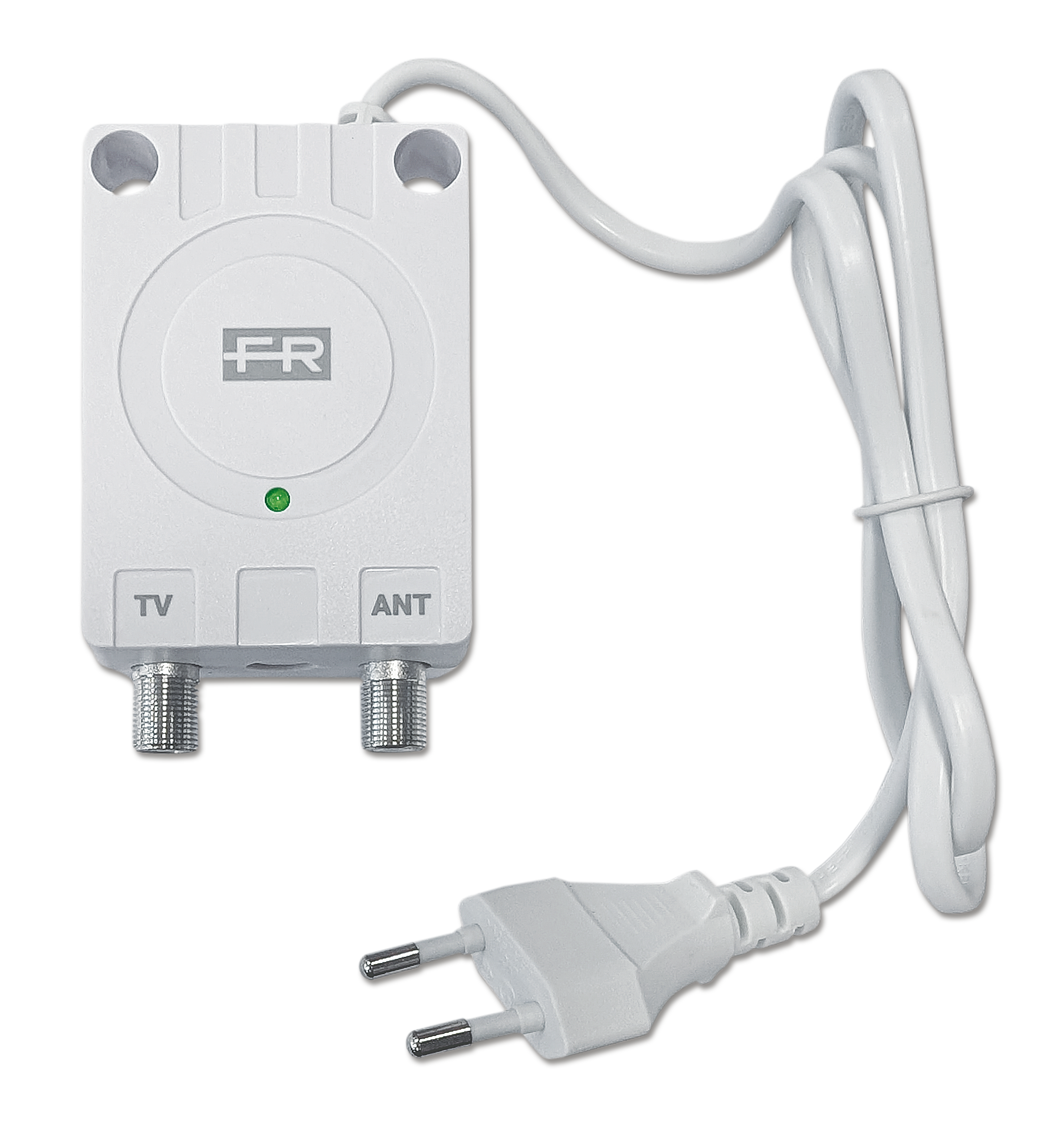

PSU1204F
Code 287827
F Connector
12V stabilized switching type power supply with high efficiency and low consumption with 1 input, 1 output and 400mA delivered current. C-type plug for mains connection.
Technical chars
F-connectors in TV band (170-862MHz).
Shielded metal enclosure to prevent interference.
Protected against short circuits.
Low consumption and high efficiency.
Isolation class II.
| PSU1204F | ||
| Code | 287827 | |
| Connectors | F | |
| Isolation class | II | |
| Plug type | Type C | |
| Max current | mA | 400 |
| Outputs number | 1 | |
| Output voltage | V | 12 |
| Bandwidth | MHz | 170-862 |
| Insertion loss | dB | < 0.2 |
| Specifications | ||
|---|---|---|
| Power supply voltage | Vdc/A | 220-230 / 50-60 |
| Isolation class | II | |
| Operating temperature | °C | -10 to +55 |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978109609 | |
| Packaging dimensions | mm | 118 x 87 x 49 |
| Product dimensions | mm | 85 x 50 x 35 |
| Packaging weight | kg | 0.18 |
| Net Weight | kg | 0.17 |
