CAT6 FU LSZH
Code 287853
Indoor

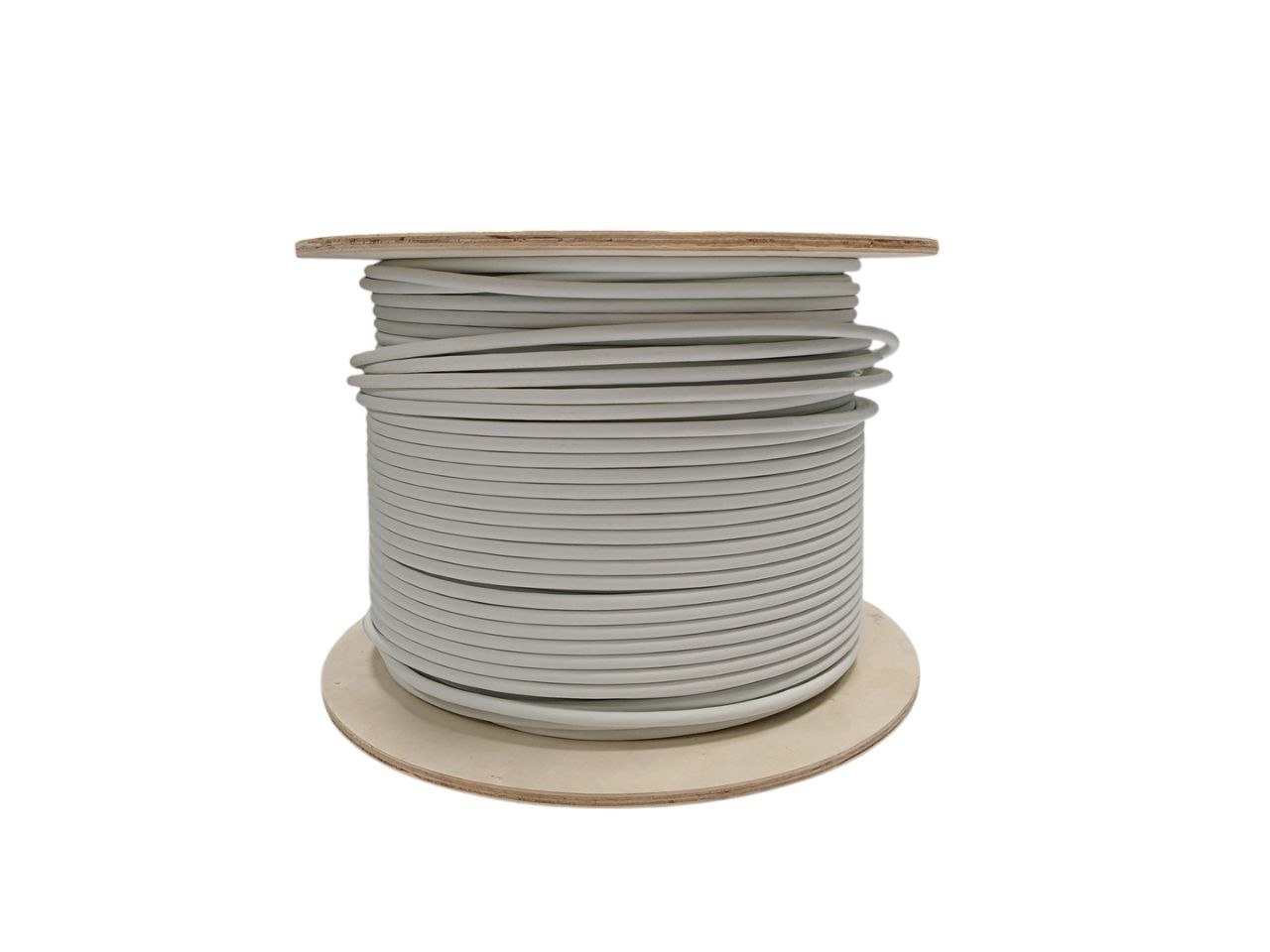

CAT 6 F/UTP indoor network cable with LSZH sheath, shielded with aluminum foil, 305-meter spool, composed of 4 balanced pairs of 100 Ohm with flexible AWG 23 red copper conductors. The characteristics meet the requirements of Cat. 6 Class E up to 250 Mhz according to ANSI/TIA 568.2-D and ISO/IEC 11801 standards. Suitable for Gigabit Ethernet applications (IEEE 802.3ab).
Supported PoE applications:
PoE: IEEE 802.3af - Up to 15.4W
PoE+: IEEE 802.3at - Up to 30W
* To ensure this performance, good installation practices for structured cabling in accordance with ISO/IEC 11801 must be followed.
This product is not suitable for and must not be used for mains power supplies.
Technical chars
| CAT6 FU LSZH | ||
| Code | 287853 | |
| Reel Length | m | 305 |
| Cable type | CAT 6 F/UTP | |
| CPR | Eca | |
| Frequency range | MHz | 250 |
| Conformity | EN60322-1-2 EN50575:2014+A1:2016 available at ce.fracarro.com | |
| Standard test | ISO/IEC 11801, TIA EIA568C.2 | |
| Pulling strength | MPa | >10 |
| Stretching | % | >100 |
| Cold bending | No visible cracks (-20 ±2°C x 4h) | |
| Inner conductor | ||
|---|---|---|
| Material | Copper | |
| Diameter | mm | 0.57+/-0.005 |
| AWG class | 23 | |
| Inner cables sheath | ||
| Inner cables sheath material | LSZH | |
| Inner cables sheath diameter | mm | 1.01 |
| Screen foil | HDPE; 0.21mm; 0% foam | |
| External sheath | ||
| Material | LSZH | |
| Diameter | mm | 7.3 |
| Thickness | mm | 0.60 |
| Colour | White RAL9016 | |
| Dimensions and packaging | ||
| Packing | Drum on cardboard box |
|
| Pieces | 305 | |
| EAN code | 8016978110193 | |
| Multiple EAN | 8016978110230 | |
| Packaging dimensions | mm | 400 x 400 x 290 |
| Packaging weight | kg | 18.5 |
