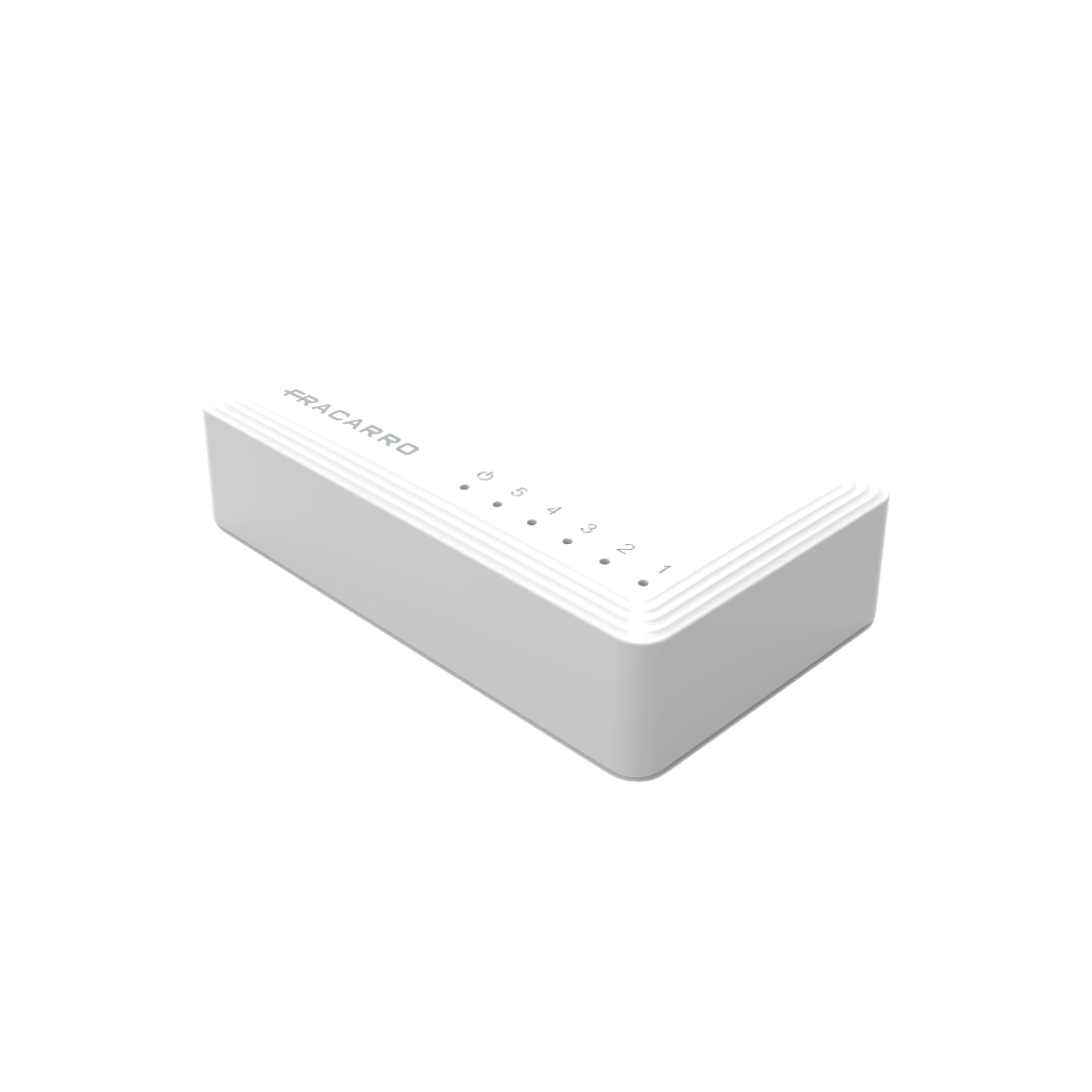

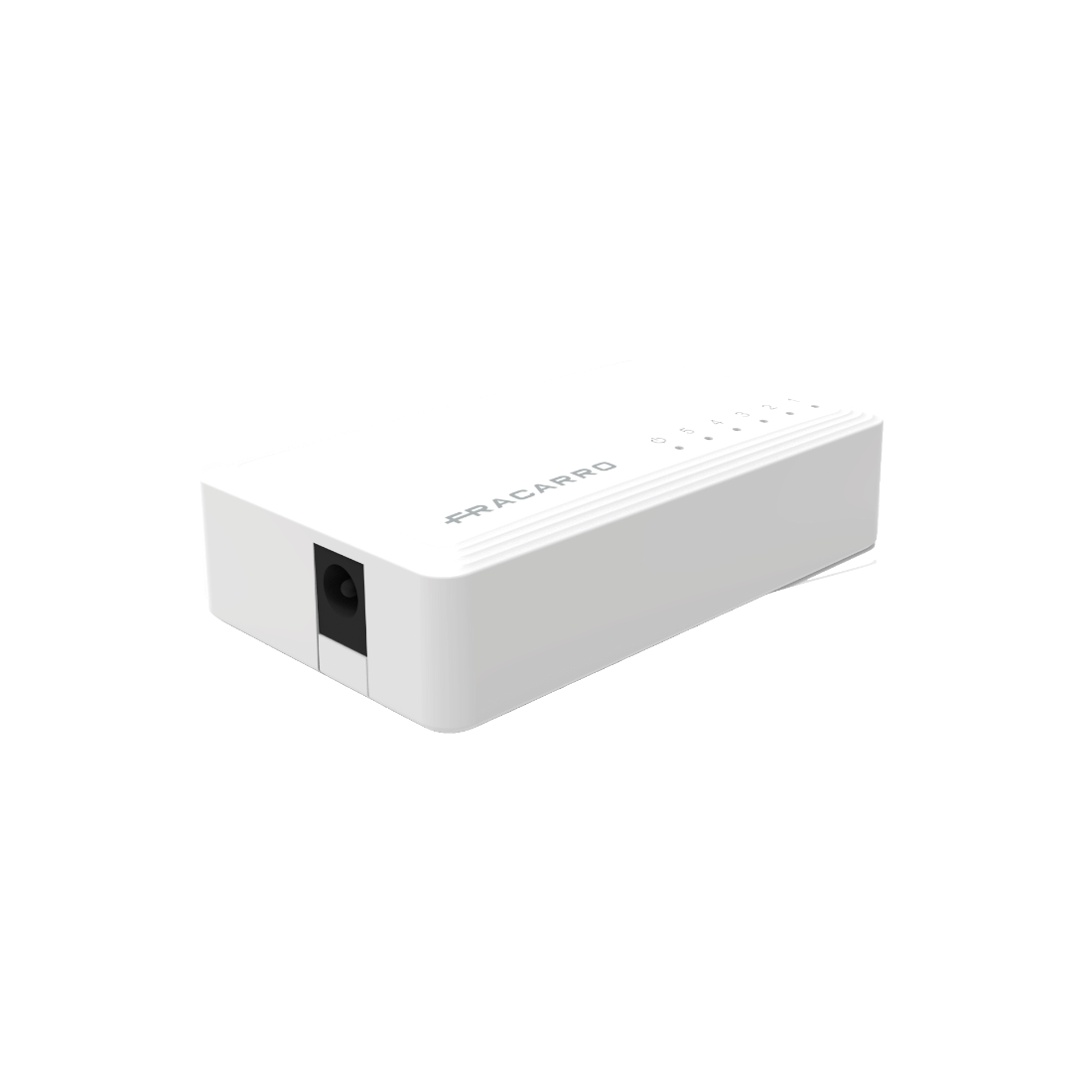

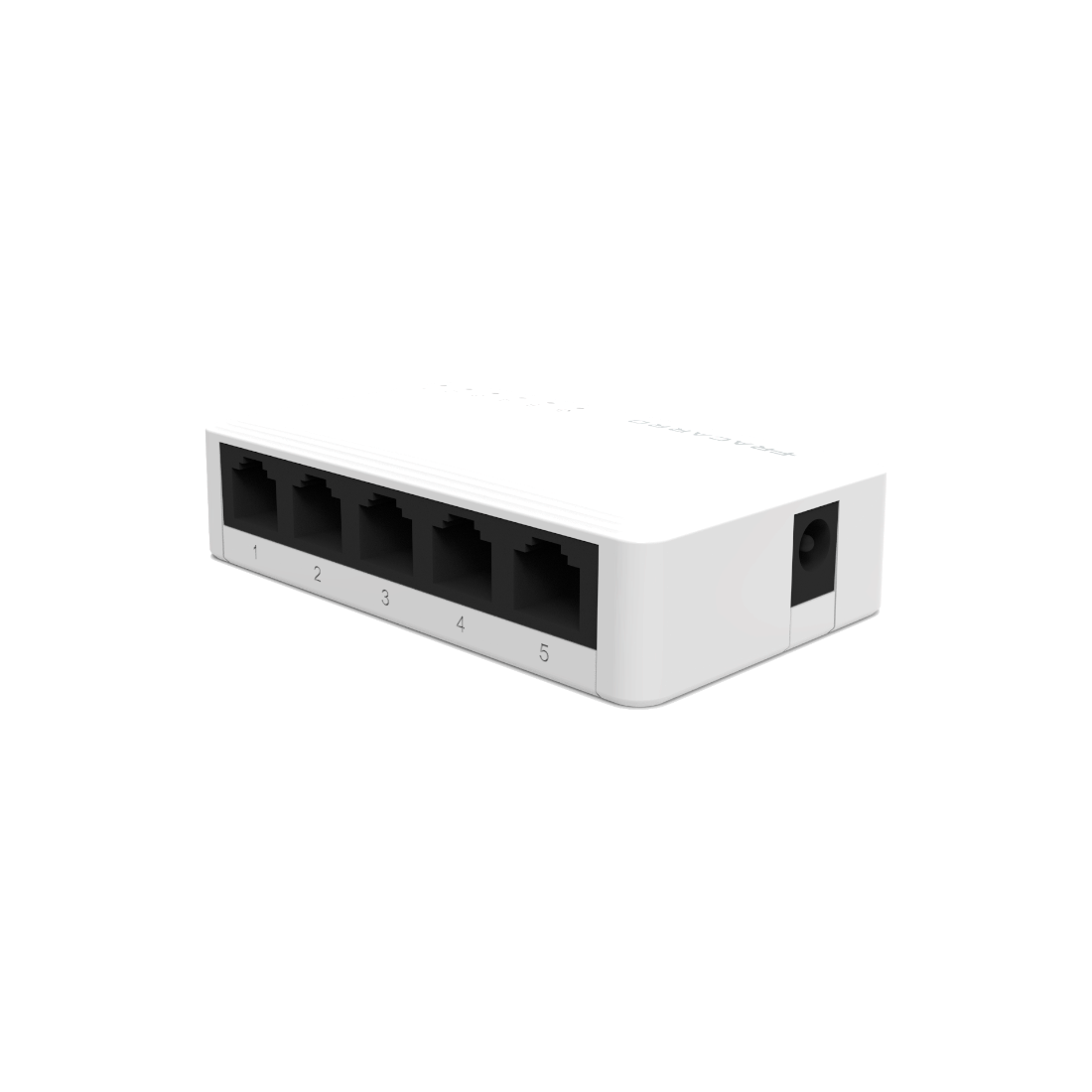

Fracarro GES05 is a non-managed Ethernet switch with 5 Gigabit ports (10/100/1000 Mbps), perfect for home LANs and small offices that demand high performance.
It is compact, sleek, and plug-and-play thanks to the MDI/MDIX function, which automatically detects the connected cables.
It offers speeds of up to 1 Gbps per port and 2 Gbps in full duplex mode.
5x 10/100/1000 Mbps Uplink ports
Supports MDI/MDIX technology
Green Mode - Up to 85% energy saving
Compact and elegant design, suitable for exposed installations
Guaranteed Fracarro quality
| GES05 | ||
| Code | 287865 | |
| LAN input | 5 x 10/100/1000 Mbps auto-negotiable | |
| Forwarding rate | Mpps | 7 |
| Forwarding mode | Store-forward | |
| MAC | 2000 | |
| MTBF | h | >=100000 |
| Functions | ||
|---|---|---|
| Applications |
|
|
| Specifications | ||
| Power supply voltage | Vdc/A | 5Vdc / 1A |
| Current consumption | W | <5 |
| Operating temperature | °C | 0 to +40 |
| Relative humidity | % | from 10 to 90 (without condensation) |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978110452 | |
| Multiple EAN | 8016978110612 | |
| Packaging dimensions | mm | 90 x 84 x 62 |
| Product dimensions | mm | 82.6 x 48.6 x 20.5 |
| Packaging weight | kg | 0.136 |
