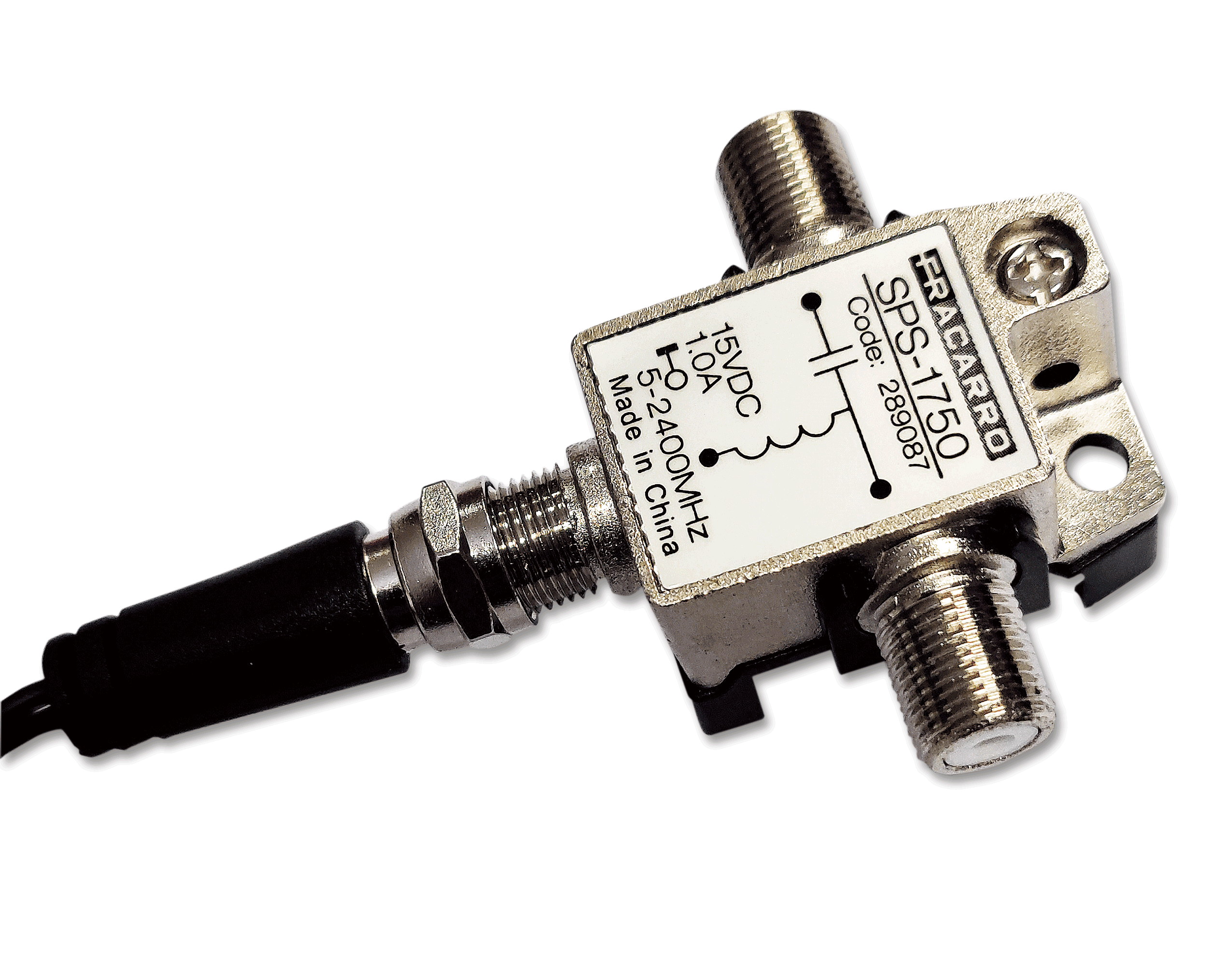

SPS1750
Code 289087
F Connector
15V 1A power supply with DC inserter with F female connector and European plug.
Technical chars
Low insertion loss.
Broadband TV and Satellite operation (100MHz - 2400MHz).
European plug can be converted to a UK plug using a PC8338 adaptor.
Insulation Class II.
Compact dimensions.
| SPS1750 | ||
| Code | 289087 | |
| Inputs | 1 | |
| Outputs | 1 | |
| Bandwidth | MHz | 40-2150 |
| Insertion loss | dB | 1 |
| Power supply voltage | Vdc/A | 220-240 / 50–60 |
| Mains plug | EU | |
| Isolation class | II | |
| Output voltage | V | 15 |
| Max current | mA | 1000 |
| Connector | F x2 | |
| Polarity | Inner positive, outer negative | |
| Specifications | ||
|---|---|---|
| Operating temperature | °C | -10 to +55 |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978019618 | |
| Packaging dimensions | mm | 70 x 100 x 50 |
| Product dimensions | mm | 65 x 98 x 45 |
| Packaging weight | kg | 0.168 |
| Net Weight | kg | 0.188 |
| Weight | kg | 0.188 |
