LAMBDA9 LTE700
Code 213059
LAMBDA Series

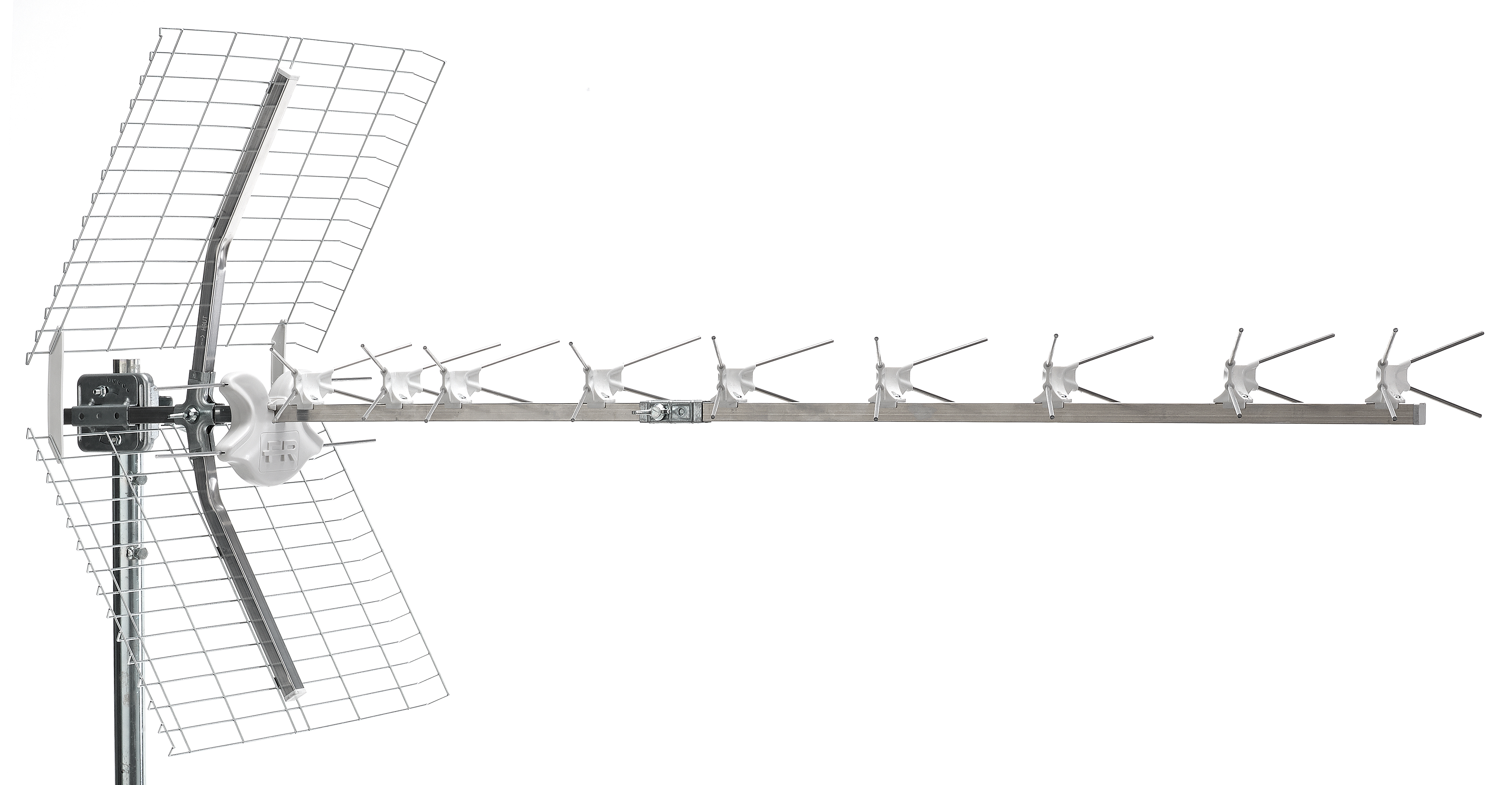

9-element UHF biconic aerial with F connector, 5G and 4G LTE filter and grid reflector
Technical chars
Pre-assembled directors, radiator and reflectors snap onto a slide already on the cradle; assembly is completed without the need for any tools.
High gain, excellent mechanical robustness and an excellent forward/reverse ratio.
Innovative pole mount with zenith adjustment as standard and a knurled surface for excellent strength and hold to the pole, and large butterfly nut for tightening without the need for any tools.
An LTE filter has been inserted into the dipole radiator to guarantee the quality of the distributed signal and to achieve excellent filtering of 5G and 4G interfering signals in the LTE band (694-860 MHz) reserved for mobile telephony.
White colour aerial.
| LAMBDA9 LTE700 | ||
| Code | 213059 | |
| Elements | 9 | |
| Band | UHF | |
| Channel | E21-E48 | |
| Bandwidth | MHz | 470-694 |
| Gain | dBi | 14 |
| Front/Back ratio | dB | 28 |
| Return loss | dB | -16 |
| Beam width (3dB) | ° | ±22 |
| Wind load 120Km/h 729N/m² | Kg (N) | 15 (147.1) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mast diameter | mm | 60 |
| Dimensions | cm | 152 x 50 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Included | |
| Horizontal polarization tilt adjustment | Included | |
| Vertical polarization | Included | |
| Vertical polarization tilt adjustment | Included | |
| Auxiliary boom | - | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978105328 | |
| Unit weight | Kg | 2.72 |
| Total weight | Kg | 2.7 |

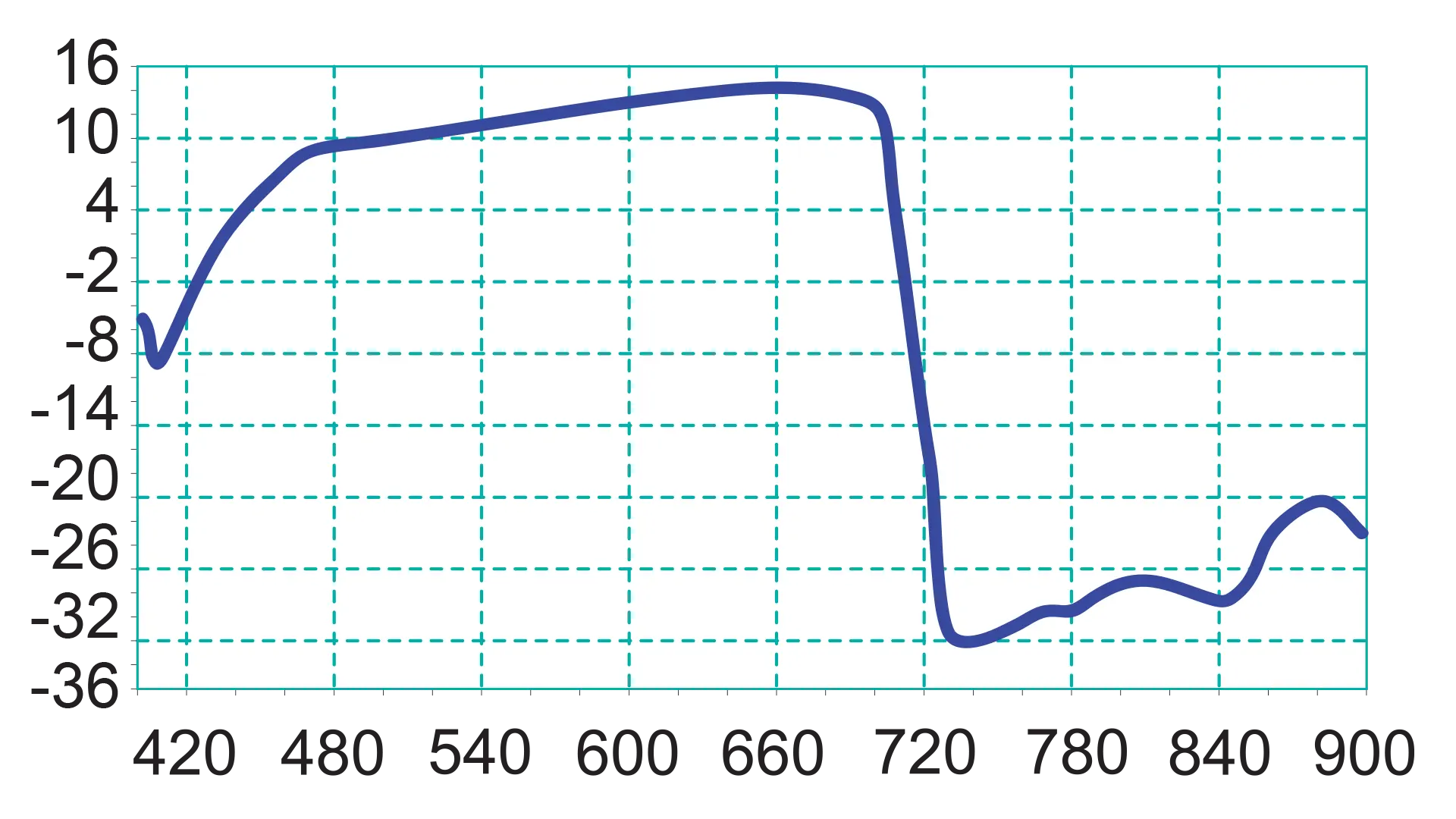

Gain (x: MHz frequency, y: ISO dBi gain) and Polar diagram (@600MHz)
