TAU11/4
Code 213096
TAU Series

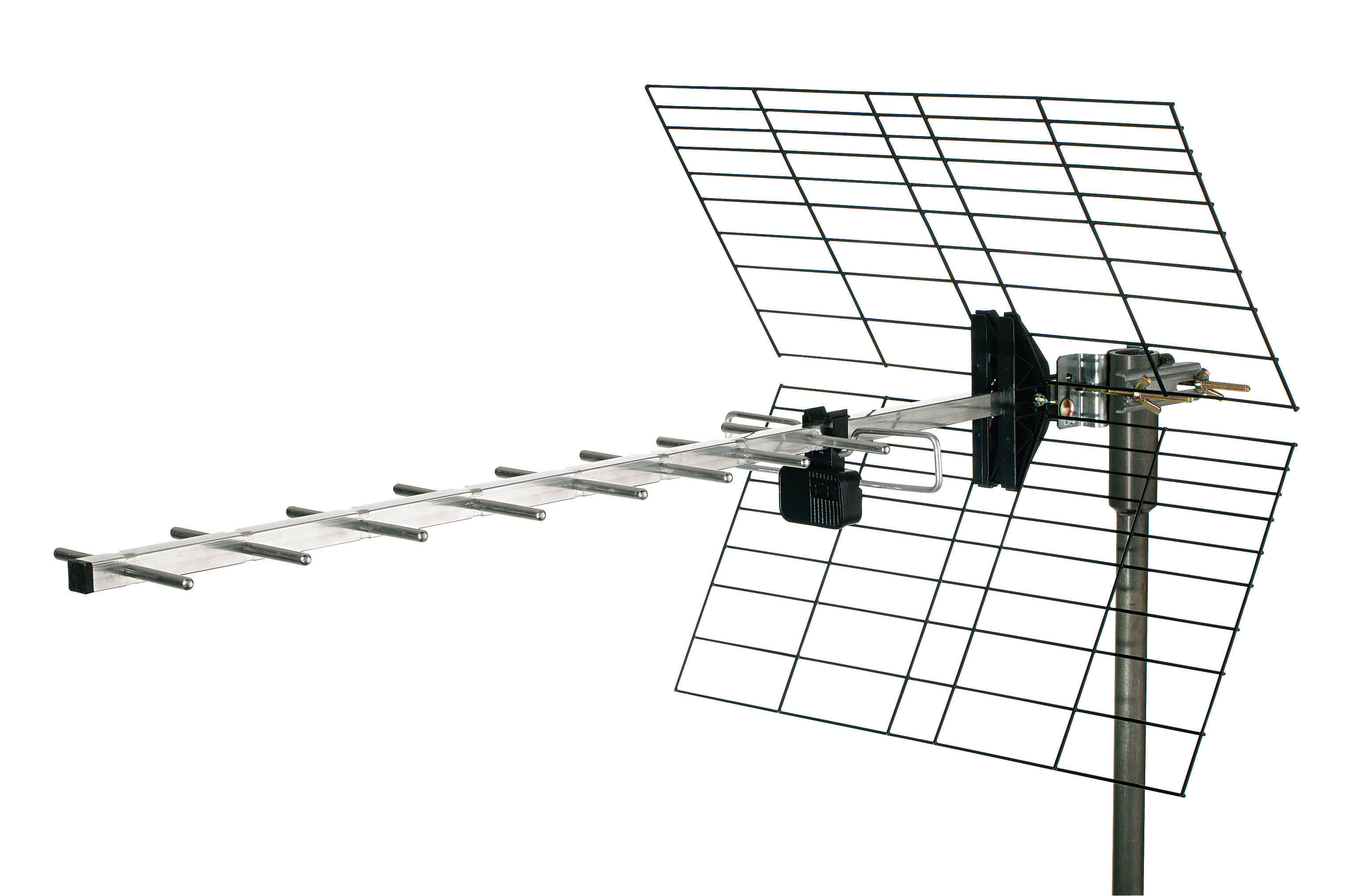

IV band Yagi aerial complete with F connector and grid reflectors.
Technical chars
- Pre-assembled for easy installation.
- Particular mechanical robustness due to the use of 8 mm extruded aluminium tubes.
- Black colour antenna.
| TAU11/4 | ||
| Code | 213096 | |
| Elements | 8 | |
| Band | 4 | |
| Channel | E21-E37 | |
| Bandwidth | MHz | 470-606 |
| Gain | dBi | 13.5 |
| Front/Back ratio | dB | 31 |
| Return loss | dB | -20 |
| Beam width (3dB) | ° | ±24 |
| Wind load 120Km/h 729N/m² | Kg (N) | 3.7 (36.3) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mast diameter | mm | 60 |
| Dimensions | cm | 115 x 50 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Included | |
| Horizontal polarization tilt adjustment | Included | |
| Vertical polarization | Included | |
| Vertical polarization tilt adjustment | Included | |
| Auxiliary boom | N.P. | |
| Dimensions and packaging | ||
| Pcs | 10 | |
| EAN code | 8016978075331 | |
| Multiple EAN | 8016978076055 | |
| Packaging dimensions | mm | 395x1190x265 |
| Packaging weight | Kg | 15.1 |
| Unit weight | Kg | 1.30 |
| Total weight | Kg | 15.0 |

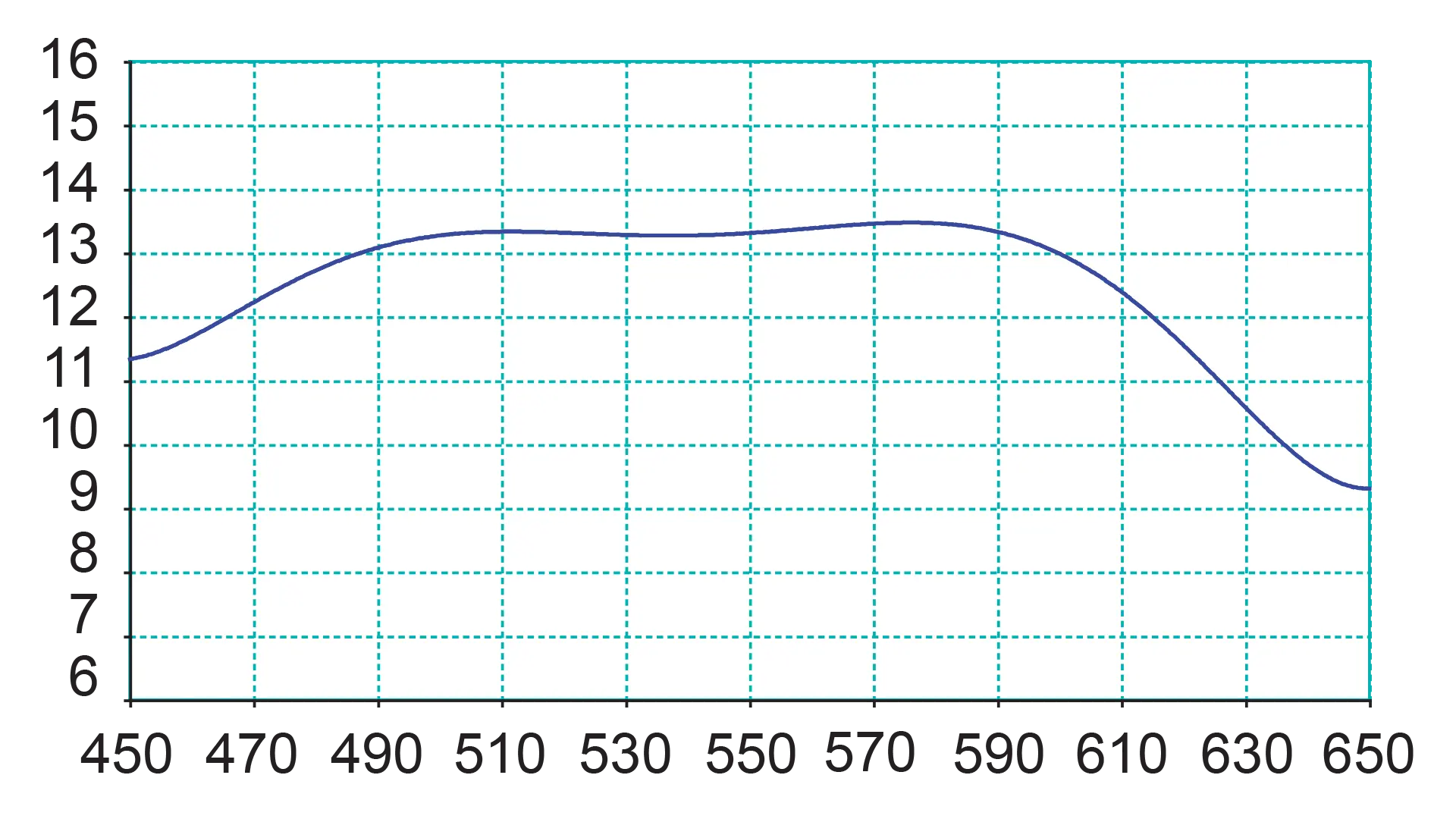

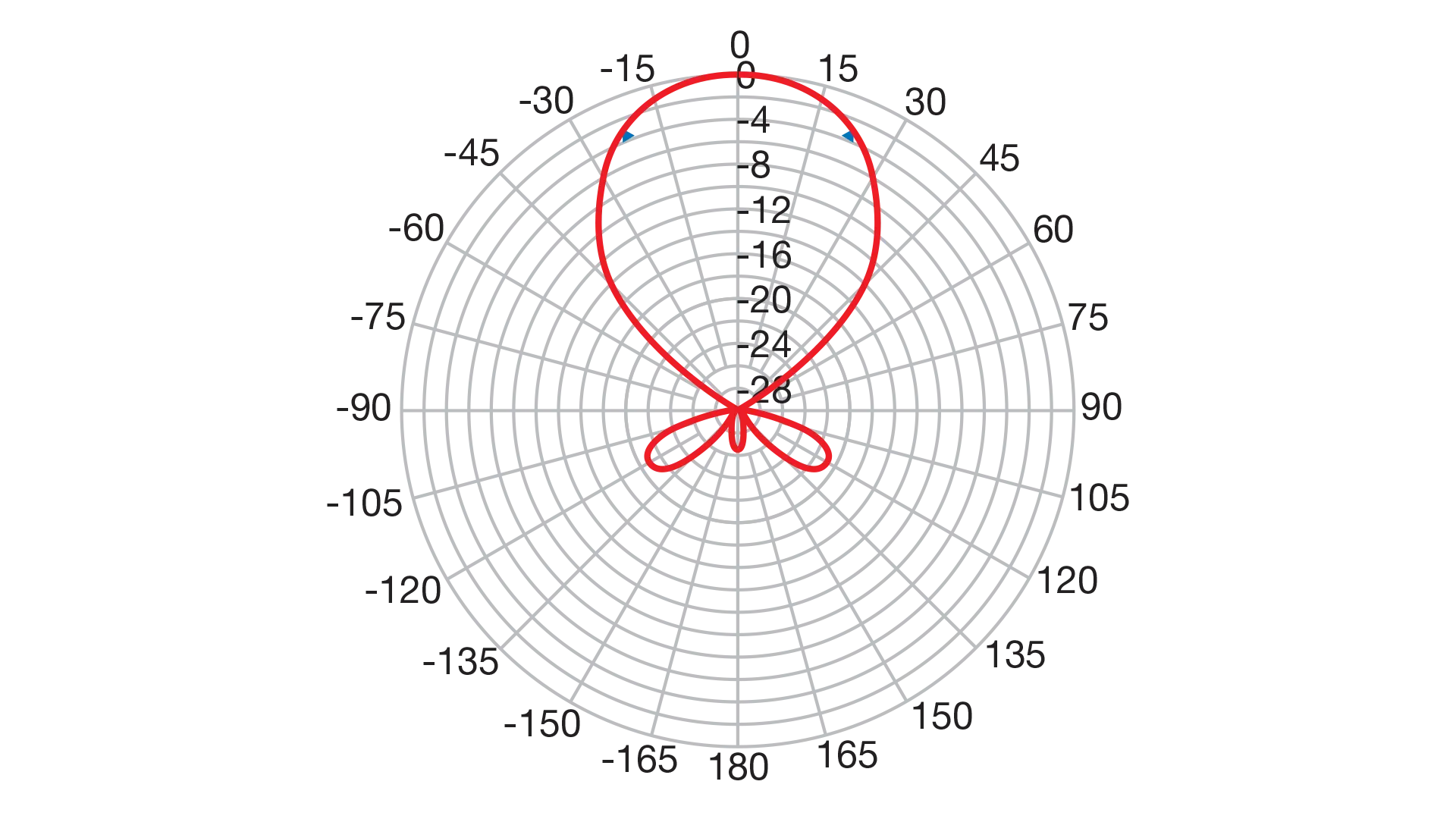

Gain (x: MHz frequency, y: ISO dBi gain) and Pattern (@600MHz)
