TAU11/45 5G
Code 213108
5G TAU Series

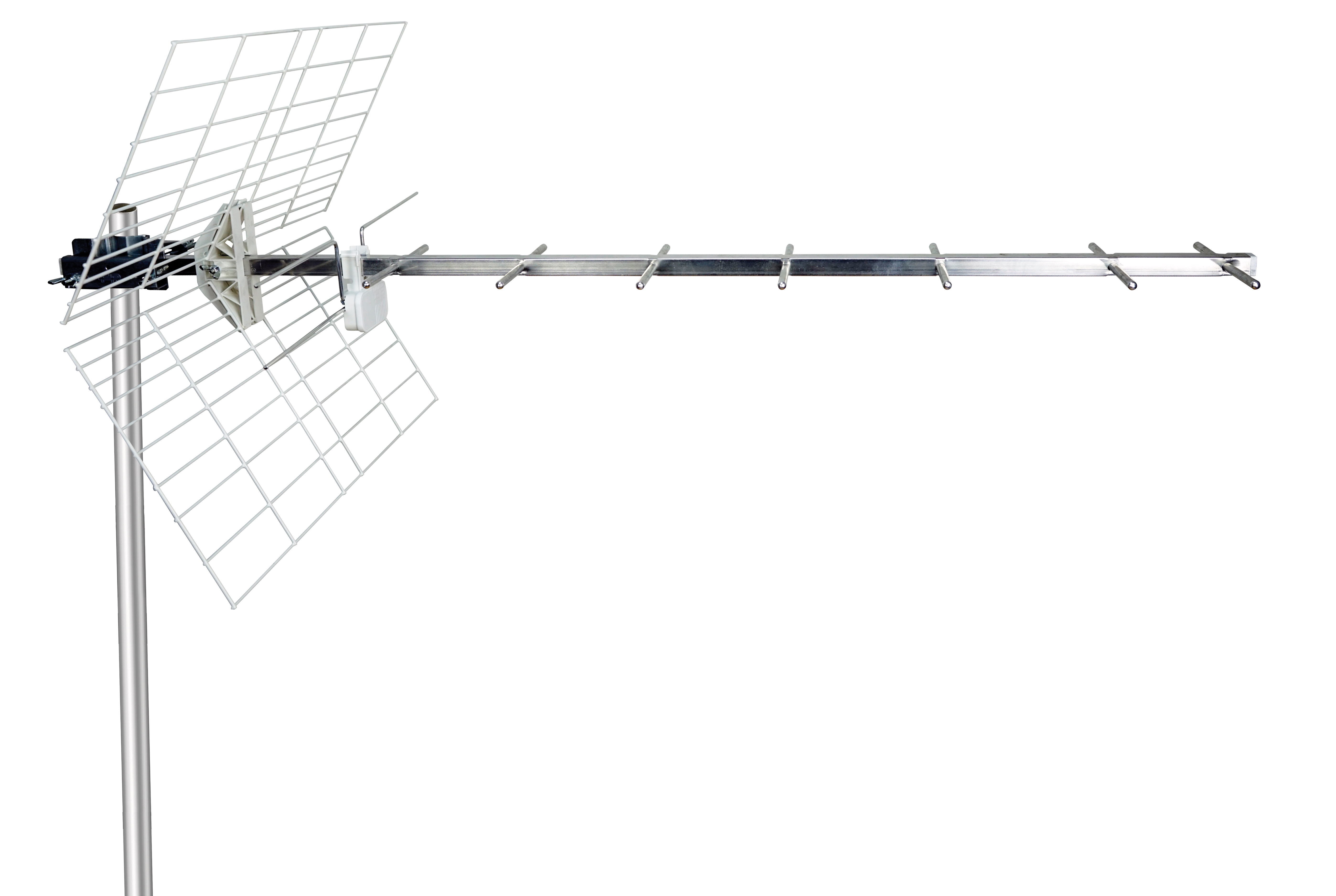

UHF band Yagi aerial complete with F connector, grid reflectors and 5G and 4G LTE filter.
Technical chars
Pre-assembled and easy to install thanks to quick coupling radiator and reflectors
Particular mechanical robustness due to the use of 8mm extruded aluminium tubes.
Geometrical distribution in the UHF model of the director dipoles redesigned to filter 5G and 4G LTE signals.
White colour aerial.
| TAU11/45 5G | ||
| Code | 213108 | |
| Elements | 7 | |
| Band | UHF | |
| Channel | E21-E48 | |
| Bandwidth | MHz | 470-694 |
| Gain | dBi | 15 |
| Front/Back ratio | dB | 32 |
| Return loss | dB | -15 |
| Beam width (3dB) | ° | ±25 |
| Wind load 120Km/h 729N/m² | Kg (N) | 3.2 (31.4) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mast diameter | mm | 60 |
| Dimensions | cm | 117 x 50 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Included | |
| Horizontal polarization tilt adjustment | Included | |
| Vertical polarization | Included | |
| Vertical polarization tilt adjustment | Included | |
| Auxiliary boom | - | |
| Dimensions and packaging | ||
| Packing | Single in bag | |
| Pieces | 10 | |
| EAN code | 8016978105465 | |
| Multiple EAN | 8016978105885 | |
| Packaging dimensions | mm | 1190 x 395 x 265 |
| Packaging weight | Kg | 11 |
| Unit weight | Kg | 1.3 |
| Total weight | Kg | 14.8 |

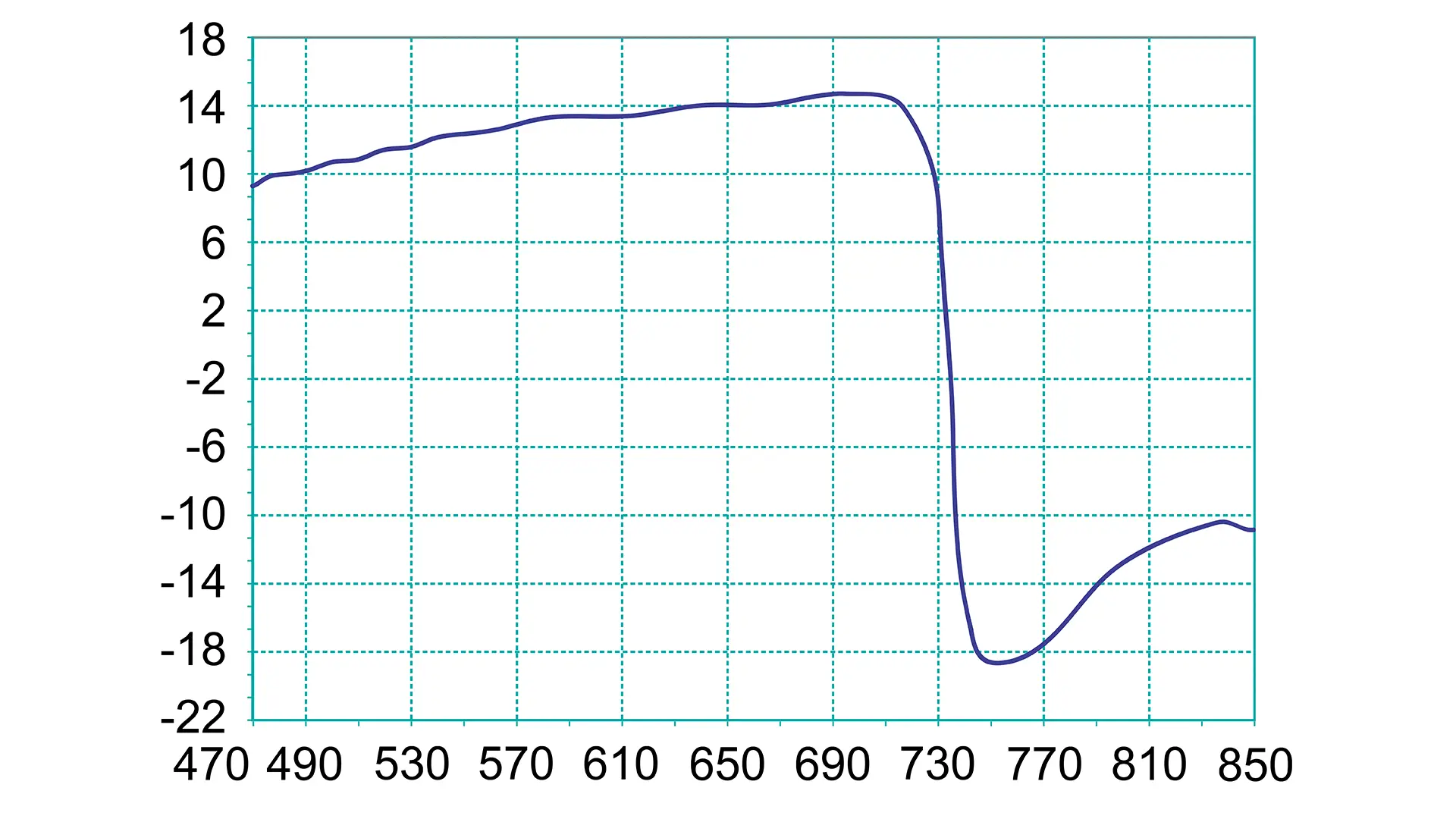

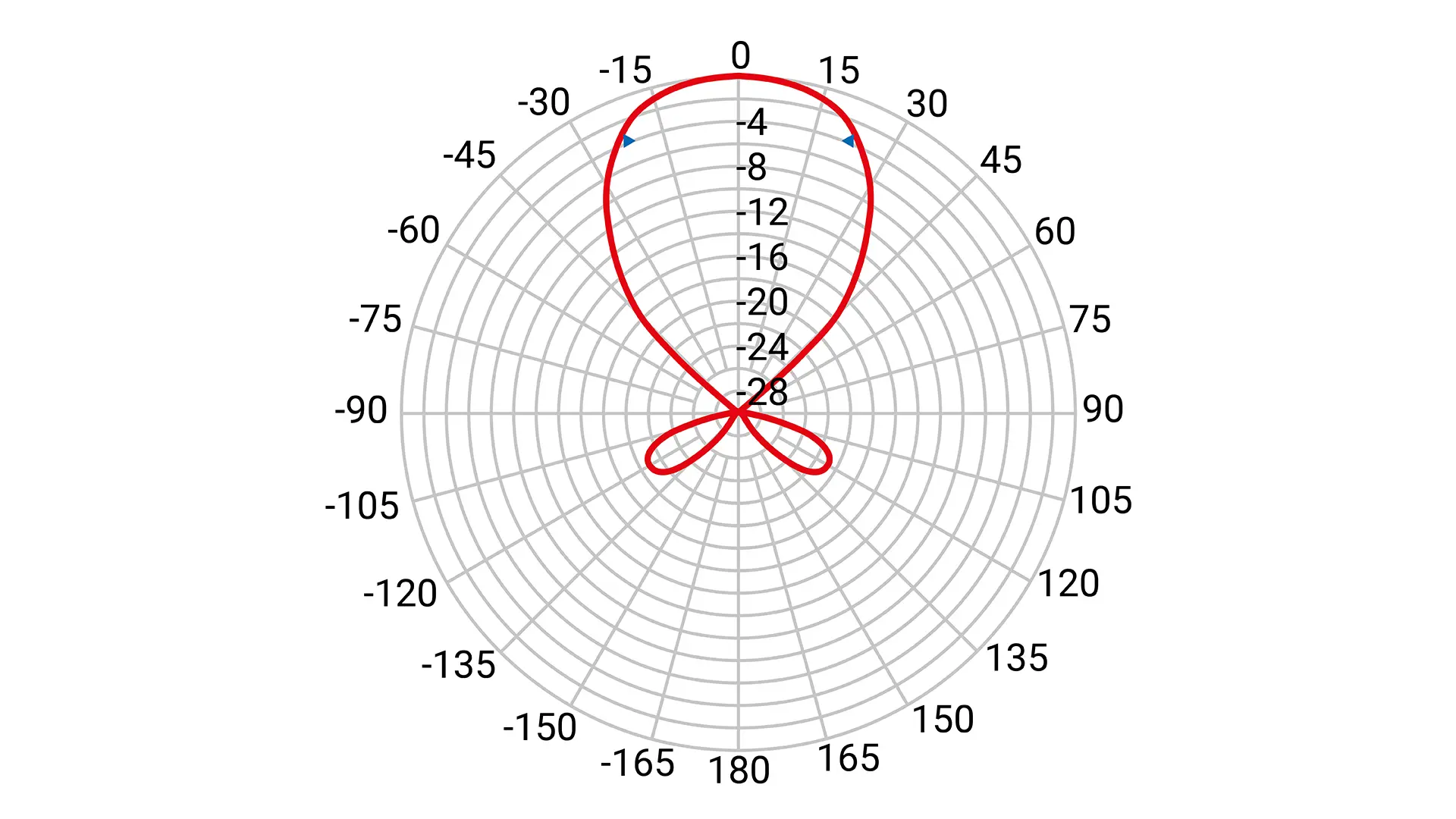

Gain (x: MHz frequency, y: ISO dBi gain) and Polar diagram (@600MHz)
