ALPHA10EVO 5G
Code 213242
5G ALPHA Series

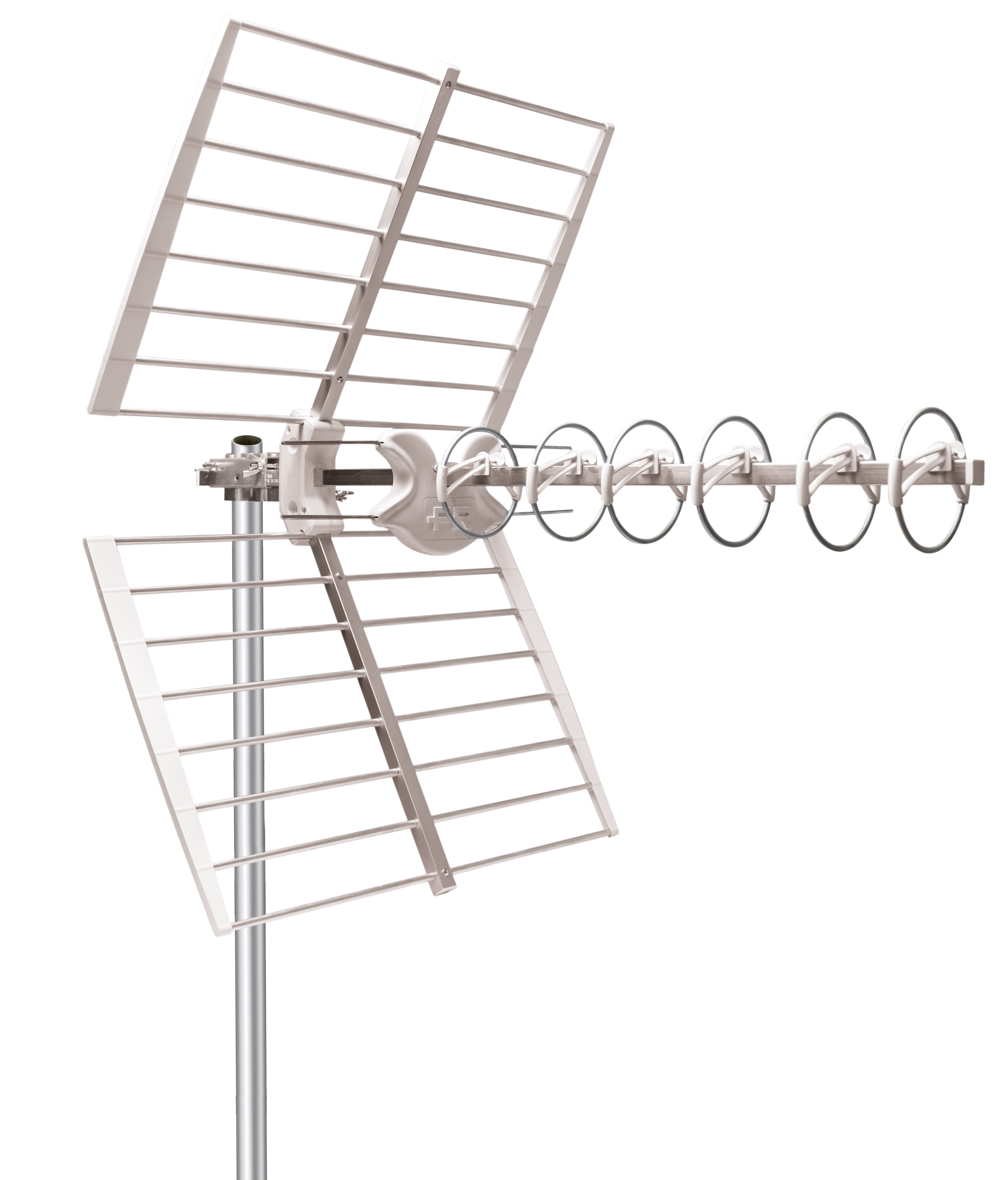

UHF 5-element loop Yagi aerial with F-connector, 5G and 4G LTE filter and tube reflector
Technical chars
Pre-assembled directors, radiator and reflectors snap onto a slide already present on the cradle; assembly is completed without the need for any tools.
Special attention was paid to the choice of materials to achieve higher robustness.
High gain, excellent impedance matching and excellent directivity.
Innovative pole mount with zenith adjustment as standard and butterfly nuts for tightening without the need for any tools.
A 5G filter has been inserted into the dipole radiator to guarantee the quality of the distributed signal and achieve excellent filtering of 5G and 4G interfering signals in the LTE band (694-860 MHz) reserved for mobile telephony.
Exclusive design patented by Fracarro.
| ALPHA10EVO 5G | ||
| Code | 213242 | |
| Elements | 6 | |
| Band | UHF | |
| Channel | E21-E48 | |
| Bandwidth | MHz | 470-694 |
| Gain | dBi | 15.5 |
| Front/Back ratio | dB | 30 |
| Return loss | dB | -18 |
| Beam width (3dB) | ° | ±22 |
| Wind load 120Km/h 729N/m² | Kg (N) | 10.2 (100.0) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mast diameter | mm | 60 |
| Dimensions | cm | 91 x 54 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Including | |
| Horizontal polarization tilt adjustment | Including | |
| Vertical polarization | Including | |
| Vertical polarization tilt adjustment | Including | |
| Auxiliary boom | - | |
| Dimensions and packaging | ||
| Pieces | 8 | |
| EAN code | 8016978108770 | |
| Unit weight | Kg | 1.75 |
| Total weight | Kg | 16.7 |

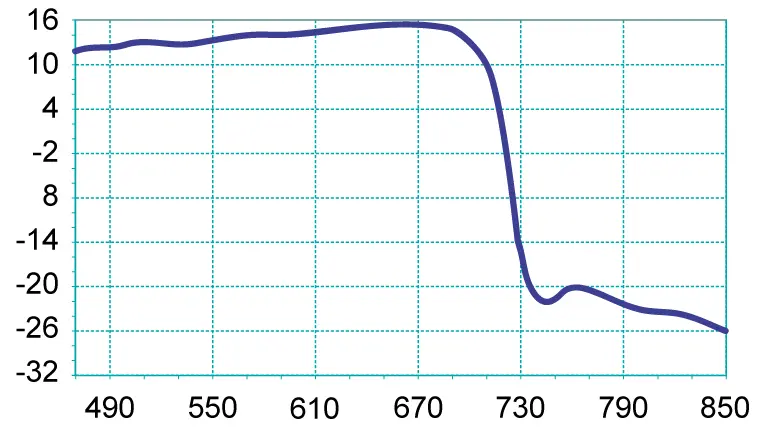

Gain (x: MHz frequency, y: ISO dBi gain) and Polar diagram (@600MHz)
