LP45FMINI
Code 216152
Periodic LOGs

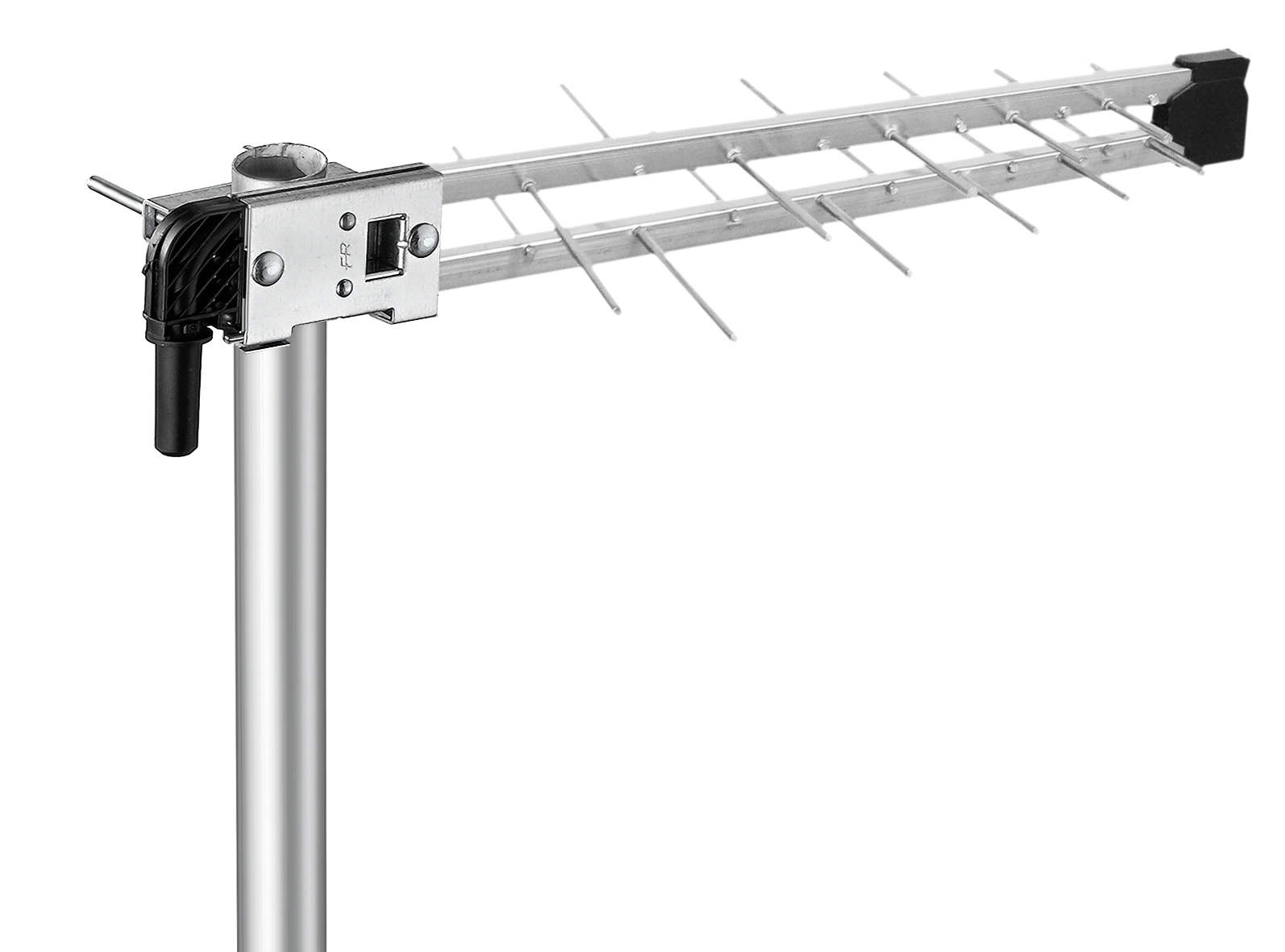

Log-periodic MINI pre-assembled aerials for UHF band characterized by extremely easy connection due to the F connector being located near the mast clamp.
Technical chars
Thanks to the special pole mount, the aerial can be installed in both vertical and horizontal polarisation without adaptors or other accessories.
It features excellent mechanical resistance for fixing the elements to the cradle, excellent mechanical resistance to rotation on the mast, and good electrical performance.
The F connector is protected by a bayonet connector cover.
Black colour aerial.
| LP45FMINI | ||
| Code | 216152 | |
| Elements | 10+10 | |
| Band | UHF | |
| Channel | E21-E69 | |
| Bandwidth | MHz | 470-862 |
| Gain | dBi | 9 |
| Front/Back ratio | dB | 30 |
| Return loss | dB | -15 |
| Beam width (3dB) | ° | ±25 |
| Wind load 120Km/h 729N/m² | Kg (N) | 2.7 (26.5) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mast diameter | mm | 60 |
| Dimensions | cm | 44 x 36 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Including | |
| Horizontal polarization tilt adjustment | PV10 (210011) | |
| Vertical polarization | Including | |
| Vertical polarization tilt adjustment | PV10 (210011) | |
| Auxiliary boom | N.P. | |
| Dimensions and packaging | ||
| Pieces | 30 | |
| EAN code | 8016978098484 | |
| Multiple EAN | 8016978098491 | |
| Unit weight | Kg | 0.50 |
| Total weight | Kg | 15.0 |
Gain (x: MHz frequency, y: ISO dBi gain) and Polar diagram (@862MHz)
