BLU10HDLTE
Code 217909
BLU Series

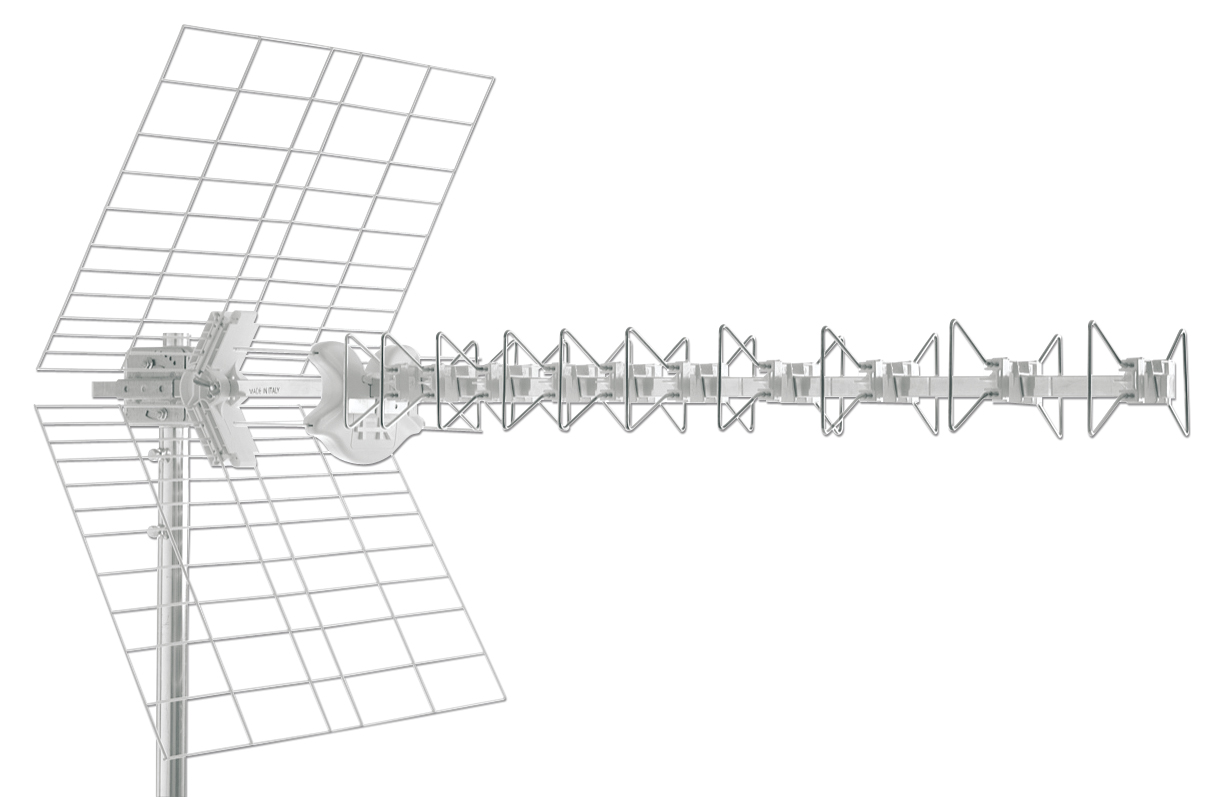

10 elements UHF band biconical aerial complete with F connector and grid reflectors.
Technical chars
Pre-assembled, quick-connect directors, radiator and reflectors on a slide already present on the cradle; assembly is completed without the use of any tools.
Special attention was paid to the choice of materials to achieve higher robustness.
High gain, excellent impedance matching and excellent directivity.
Innovative pole mount with zenith adjustment as standard and a knurled surface for optimum strength and hold to the pole, and a butterfly nut for tightening without the need for any tools.
An LTE filter has been inserted into the radiator dipole to guarantee the quality of the distributed signal and to obtain excellent filtering of 4G interfering signals in the LTE band (790-860 MHz) reserved for mobile telephony.
White colour aerial.
| BLU10HDLTE | ||
| Code | 217909 | |
| Elements | 10 | |
| Band | UHF | |
| Channel | E21-E60 | |
| Bandwidth | MHz | 470-790 |
| Gain | dBi | 16 |
| Front/Back ratio | dB | 30 |
| Return loss | dB | -16 |
| Beam width (3dB) | ° | ±22 |
| Wind load 120Km/h 729N/m² | Kg (N) | 7.2 (70.6) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mast diameter | mm | 60 |
| Dimensions | cm | 119 x 50 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Included | |
| Horizontal polarization tilt adjustment | Included | |
| Vertical polarization | Included | |
| Vertical polarization tilt adjustment | Included | |
| Auxiliary boom | - | |
| Dimensions and packaging | ||
| Packing | Single in tray | |
| Pieces | 10 | |
| EAN code | 8016978092420 | |
| Multiple EAN | 8016978092628 | |
| Packaging dimensions | mm | 1230 x 380 x 550 |
| Packaging weight | Kg | 24.6 |
| Unit weight | Kg | 2.22 |
| Total weight | Kg | 24.6 |
Gain (x: MHz frequency, y: ISO dBi gain) and Polar diagram (@790MHz)
