Code 220711
SPI e SPF

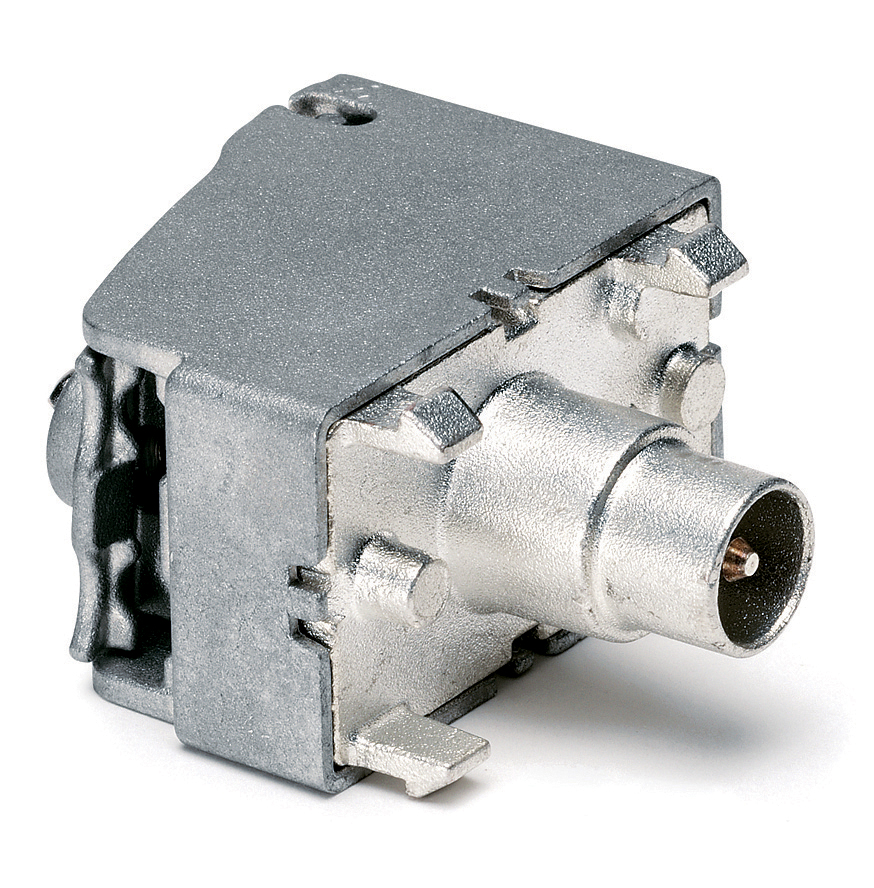

Terminal outlet; 1 output with IEC Male connector for TV and Satellite band (5-2400MHz).
SPI00
Technical chars
- The outlet is designed with an innovative system to connect to coaxial cable; it enables the user to connect to a cable with a diameter between 5 and 7mm.
- Fully shielded (class A).
- Plastic adaptors for all the brands available on the market.
- Complies with EN50083-4.
| SPI00 | ||
| Code | 220711 | |
| Type | Terminal | |
| Tap loss | ||
|---|---|---|
| RC 5-40MHz | dB | 0.5 |
| TV 47-862MHz | dB | 0.5 |
| SAT 950-1750MHz | dB | 0.8 |
| SAT 1750-2150MHz | dB | 0.8 |
| SAT 2150-2400MHz | dB | 0.8 |
| Type | Terminal | |
| Connector | IEC Male | |
| Specifications | ||
| Conformity | EN50083-2:2012/A1:2015 | |
| Dimensions and packaging | ||
| Pieces | 10 | |
| EAN code | 8016978067961 | |
| Multiple EAN | 8016978068395 | |
| Packaging dimensions | mm | 115 x 80 x 40 |
| Packaging weight | kg | 0.6 |
