MAP3rFM+3U 700
Code 223711
24V powered

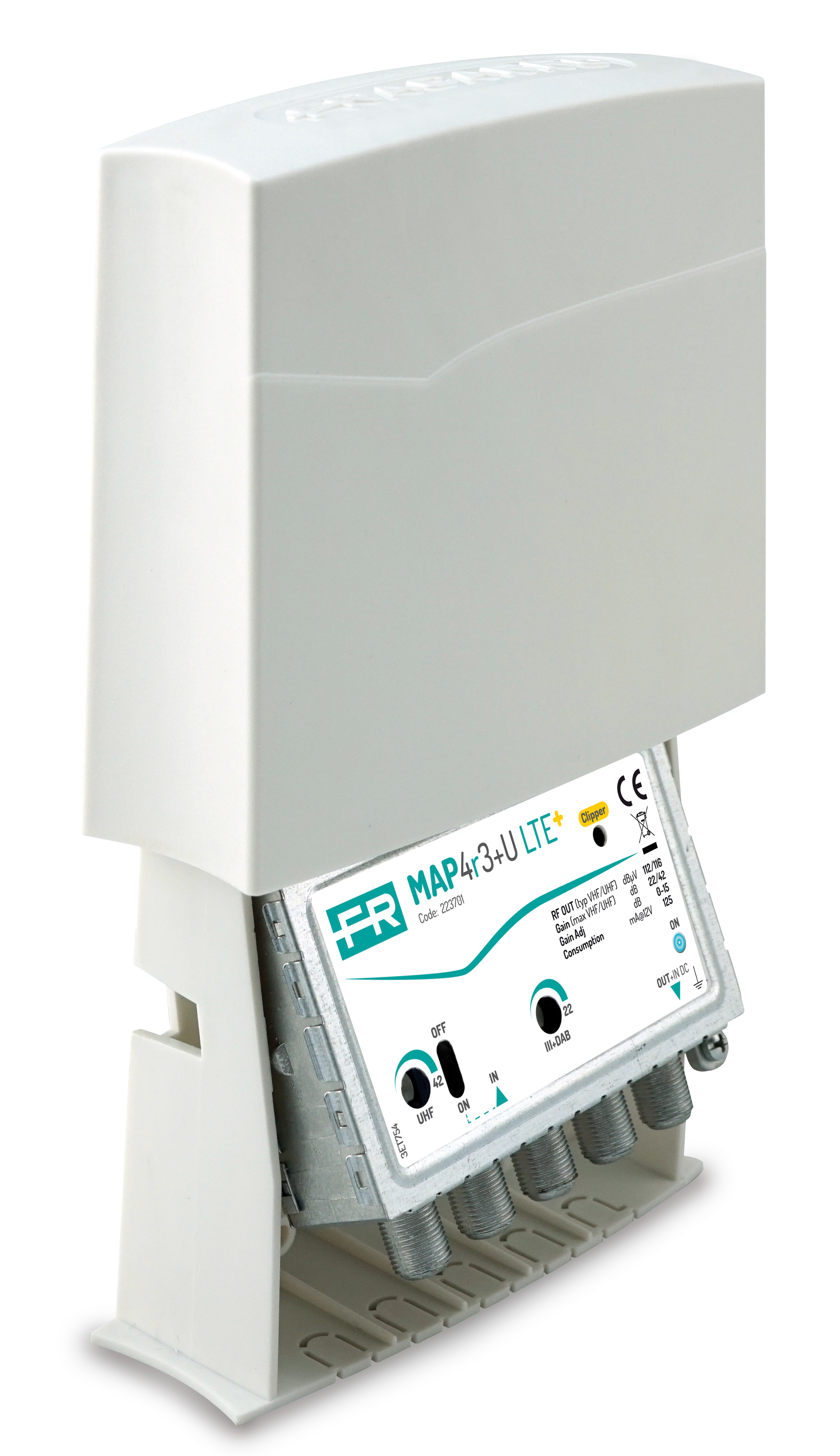

2-input (FM+III+DAB, UHF) mast amplifier with 28dB gain and up to 116dBμV output level on UHF band, separate VHF/UHF amplification with independent gain adjustment (0-15dB) for each input and low noise figure. 694MHz 5G integrated filter.
Technical chars
- RED Compliant: each model complies with the regulatory requirements on Radio Spectrum, Electromagnetic Compatibility and Safety set out in recent European directives.
- ZAMA die-cast chassis with metal covers for extremely high interference shielding (LTE Free).
- The ABS outdoor protective hood is equipped with a slide opening and tilting system for the amplifier section, making the installer's work easier.
- Selector switch for switching the remote power supply to the UHF input, or to the V+U input depending on the model.
- Status LED for correct power supply and fixing clamp suitable for poles up to 60mm diameter.
| MAP3rFM+3U 700 | ||
| Code | 223711 | |
| Input no. | 2 | |
| Inputs | FM+III+DAB, UHF | |
| Frequency FM | MHz | 88 - 108 |
| DAB, III Frequency | MHz | 174 - 240 |
| Frequency | MHz | 470 - 694 |
| Gain | dB | FM+III+DAB: 22; UHF: 28 |
| Gain adjustment | dB | FM+III+DAB: 15; |
| Optical noise figure | dB | III+DAB: 5; UHF: 4 |
| Outputs number | 1 | |
| Output level | dBµV | III+DAB: 112; UHF: 116 |
| Connectors | F female | |
| Clipper | No | |
| Filter | 5G | |
| Specifications | ||
|---|---|---|
| Power supply voltage | V | 24 |
| Absorption | mA | 85 @24V |
| Impedence | Ohm | 75 |
| Operating temperature | °C | -10 to +55 |
| Protection | IP43 | |
| Conformity | EN50083-2: 2006-06 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978100415 | |
| Packaging dimensions | mm | 124 x 57 x 118 |
| Product dimensions | mm | 120 x 50 x 105 |
| Packaging weight | Kg | 0.309 |
| Net Weight | Kg | 0.234 |
| Weight | Kg | 0.251 |
