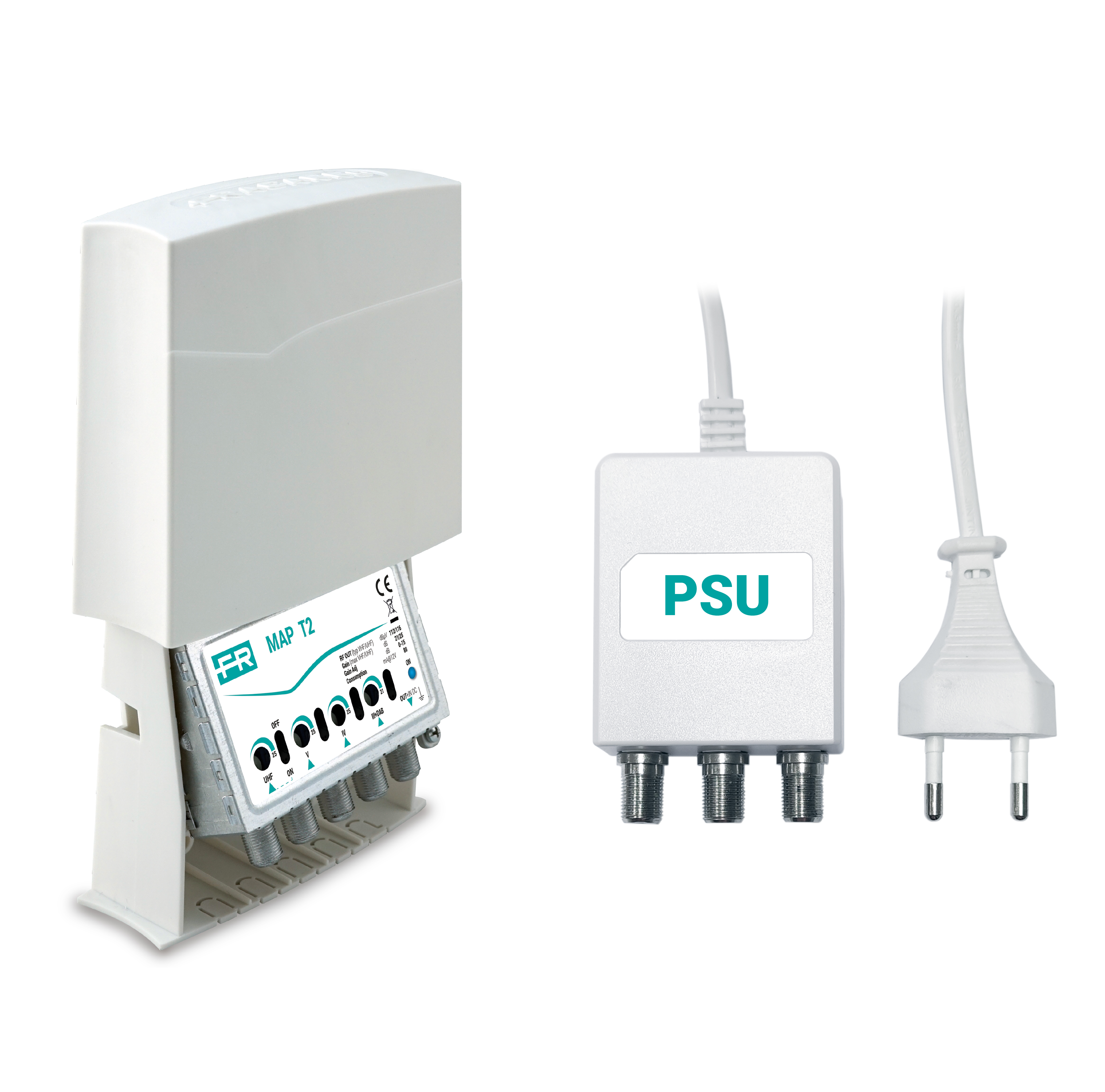

MAP3rFM+3U700K

Code 223717

KIT with power supply

2-input (FM+III+DAB, UHF) mast amplifier with 28dB gain and up to 116dBμV output level on UHF band, separate VHF/UHF amplification with independent gain adjustment (0-15dB) for each input and low noise figure. 694MHz 5G integrated filter.

Power supply included in the package.

Technical chars

RED Compliant: each model complies with the regulatory requirements on Radio Spectrum, Electromagnetic Compatibility and Safety set out in recent European directives.
ZAMA die-cast chassis with metal covers for extremely high interference shielding (LTE Free).
The ABS outdoor protective hood is equipped with a slide opening and tilting system for the amplifier section, making the installer's work easier.
Selector switch for switching the remote power supply to the UHF input, or to the V+U input depending on the model.
Status LED for correct power supply and fixing clamp suitable for poles up to 60mm diameter.

Specifications
		MAP3rFM+3U700K
Code		223717
Inputs		2
Inputs type		FM+III+DAB, UHF
Frequency FM	MHz	88 - 108
DAB, III Frequency	MHz	174 - 240
Frequency	MHz	470 - 694
Gain	dB	FM+III+DAB: 22; UHF: 28
Gain adjustment	dB	FM+III+DAB: 15; UHF: 15
Noise figure	dB	III+DAB: 5; UHF: 4
Outputs		1
Max output level	dBµV	III+DAB: 112; UHF: 116
Connectors		F female
Clipper		No
LTE Filter		5G
Power supply voltage	V	24
Consumption	mA	85 @24V
Gain adjustment	dB	FM+III+DAB: 15; UHF: 15
Impedence	Ω	75
Operating temperature	°C	-10 to +55
Protection		IP43
Conformity		EN62368-1:2014/AC:2015; EN50083-2:2012/A1:2015
Dimensions and packaging
Pieces		1
EAN code		8016978101641
Packaging dimensions	mm	127 x 110 x 111
Product dimensions	mm	110 x 125 x 110
Single net weight	kg	0.436
Single gross weight	kg	0.475

Documentation

Datasheet

Manual
Serie MAP LTE MI

High resolution image

Warranty Q4 classification - 4 years from date of purchase or 54 months from date of manufacture

Conformity
Declaration of Conformity available on ce.fracarro.com
