MAP4r3UU T2+
Code 223758
3 Inputs

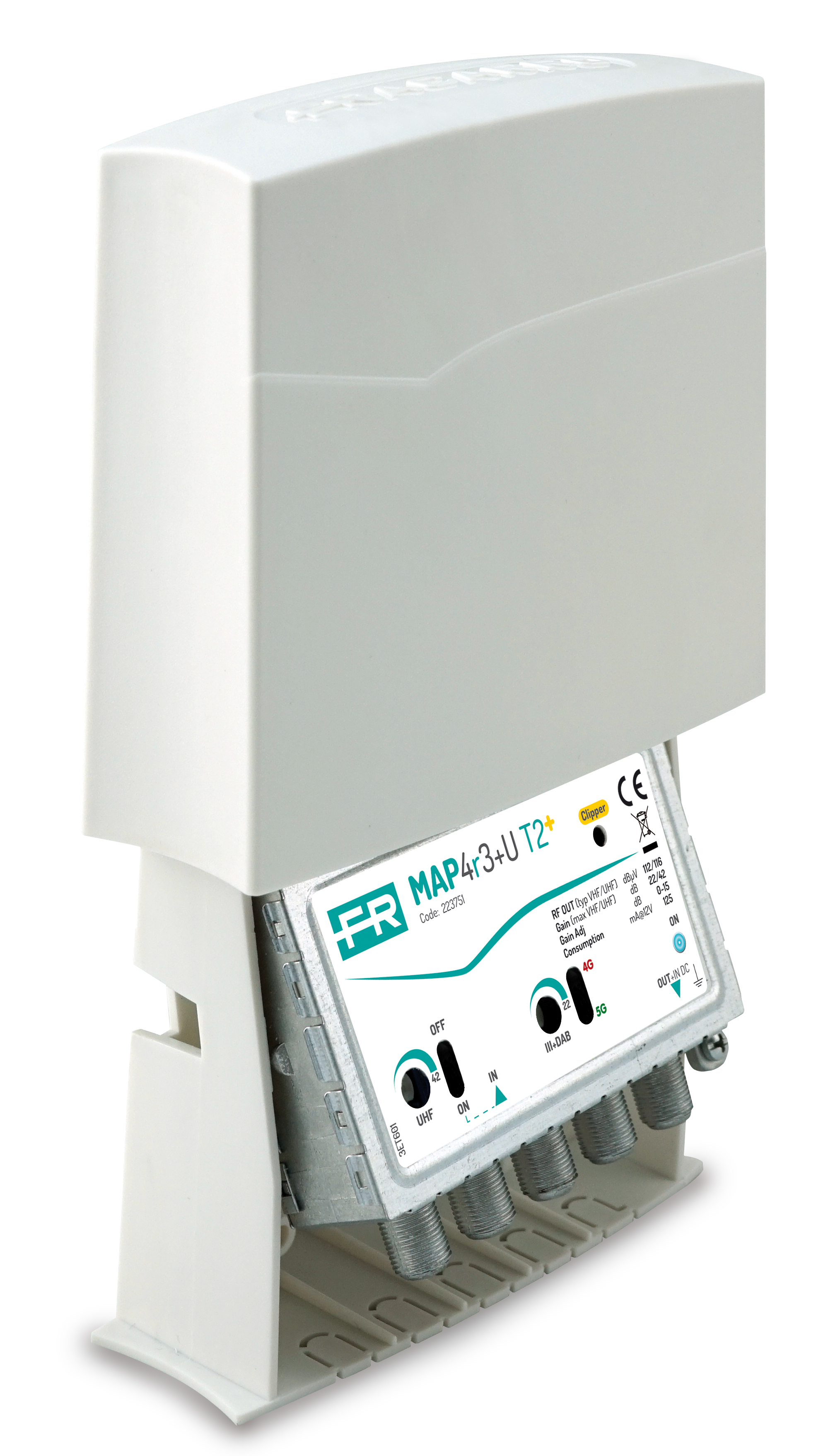

3-input (III+DAB, UHF, UHF) mast amplifier with 40dB gain and up to 116dBμV output level on UHF band, separate VHF/UHF amplification with independent gain adjustment (0-15dB) for each input and low noise figure. T2 technology with UHF cut band for LTE 4G @790MHz and 5G @694MHz.
Technical chars
Internal 5G filter at 694MHz to give connections more protection from interference than an external filter.
CLIPPER Technology: unique system that limits the UHF band gain of the device to ensure the maximum RF output level available and minimize intermodulation; there is an LED that lights up when this control is activated.
RED Compliant: each model complies with the regulatory requirements regarding Radio Spectrum Electromagnetic Compatibility and Safety set forth in recent European directives.
ZAMA die-cast frame with metal covers for very high shielding to interference (LTE Free).
Outdoor protective bell made of ABS is equipped with a slide opening and tilting system of the amplification section to make the installer's work easier.
Selector switch for inserting tele-power on the UHF input, or on the V+U input depending on the model.
Status LED for correct power supply and fixing clamp suitable for poles up to 60mm diameter.
| MAP4r3UU T2+ | ||
| Code | 223758 | |
| Input no. | 3 | |
| Inputs | III+DAB, UHF, UHF | |
| DAB, III Frequency | MHz | 174 - 240 |
| Frequency | MHz | 470 - 694 |
| Gain | dB | III+DAB: 22; |
| Gain adjustment | dB | III+DAB: 15; |
| Optical noise figure | dB | III+DAB: 5; UHF: 7 |
| Outputs number | 1 | |
| Output level | dBµV | III+DAB: 112; UHF: 116 |
| Connectors | F female | |
| Clipper | Sì | |
| Filter | 5G | |
| Specifications | ||
|---|---|---|
| Power supply voltage | V | 12 |
| Absorption | mA | 125 @12V |
| Impedence | Ohm | 75 |
| Operating temperature | °C | -10 to +55 |
| Protection | IP43 | |
| Conformity | EN50083-2: 2006-06 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978104215 | |
| Packaging dimensions | mm | 124 x 57 x 118 |
| Product dimensions | mm | 120 x 50 x 105 |
| Packaging weight | Kg | 0.289 |
| Net Weight | Kg | 0.234 |
| Weight | Kg | 0.251 |
