MAP3r3UU 2 5G K
Code 223778

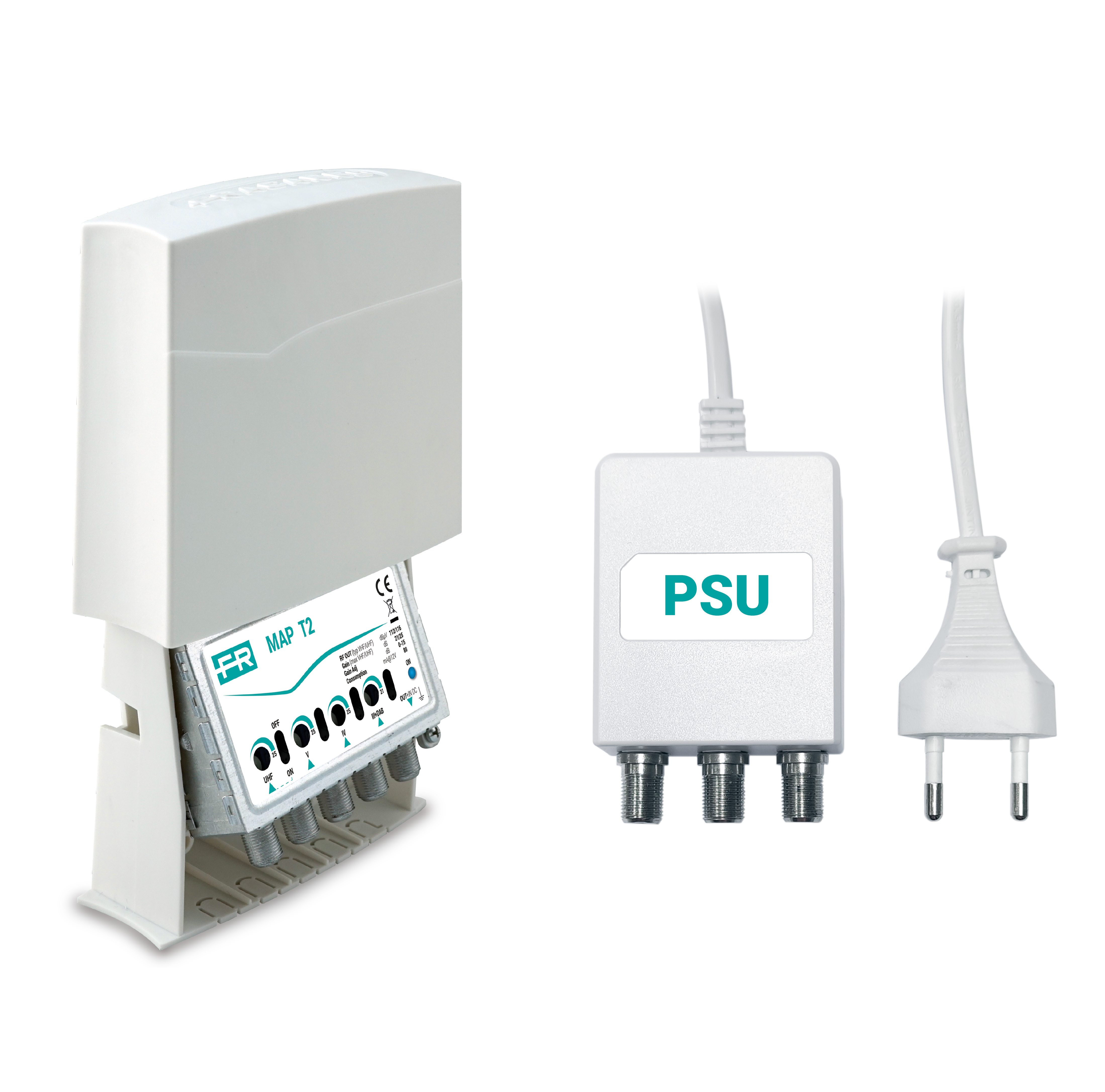

KIT with power supply
3-input (III+DAB, UHF, UHF) pole mount amplifier with 28dB gain and output level up to 116dBμV in UHF band, separate VHF/UHF amplifications, independent gain adjustments (0-15dB) for each input and low noise figure. 2 outputs and built-in 5G and 4G LTE 694MHz filter.
Power supply included in the package.
Technical chars
- RED Compliant: each model complies with the regulatory requirements on Radio Spectrum, Electromagnetic Compatibility and Safety set out in recent European directives.
- ZAMA die-cast chassis with metal covers for extremely high interference shielding (LTE Free).
- The ABS outdoor protective hood is equipped with a slide opening and tilting system for the amplifier section, making the installer's work easier.
- Selector switch for switching the remote power supply to the UHF input, or to the V+U input depending on the model.
- Status LED for correct power supply and fixing clamp suitable for poles up to 60mm diameter.
| MAP3r3UU 2 5G K | ||
| Code | 223778 | |
| Input no. | 3 | |
| Inputs | III+DAB, UHF, UHF (**) | |
| DAB, III Frequency | MHz | 174 - 240 |
| Frequency | MHz | 470 - 694 |
| Gain | dB | III+DAB: 26; UHF: 28; UHF: 28 |
| Gain adjustment | dB | III+DAB: 15; UHF: 15; UHF: 15 |
| Optical noise figure | dB | III+DAB: 5; UHF: 7 |
| Outputs number | 2 | |
| Output level | dBµV | III+DAB: 112; UHF: 116 |
| Connectors | F female | |
| Clipper | No | |
| Filter | 5G | |
| Specifications | ||
|---|---|---|
| Power supply voltage | V | 12 |
| Absorption | mA | 140 @12V |
| Impedence | Ohm | 75 |
| Operating temperature | °C | -10 to +55 |
| Protection | IP43 | |
| Conformity | EN50083-2: 2006-06 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978106592 | |
| Packaging dimensions | mm | 128 x 111 x 111 |
| Product dimensions | mm | 120 x 50 x 105 |
| Packaging weight | Kg | 0.540 |
| Weight | Kg | 0.500 |
