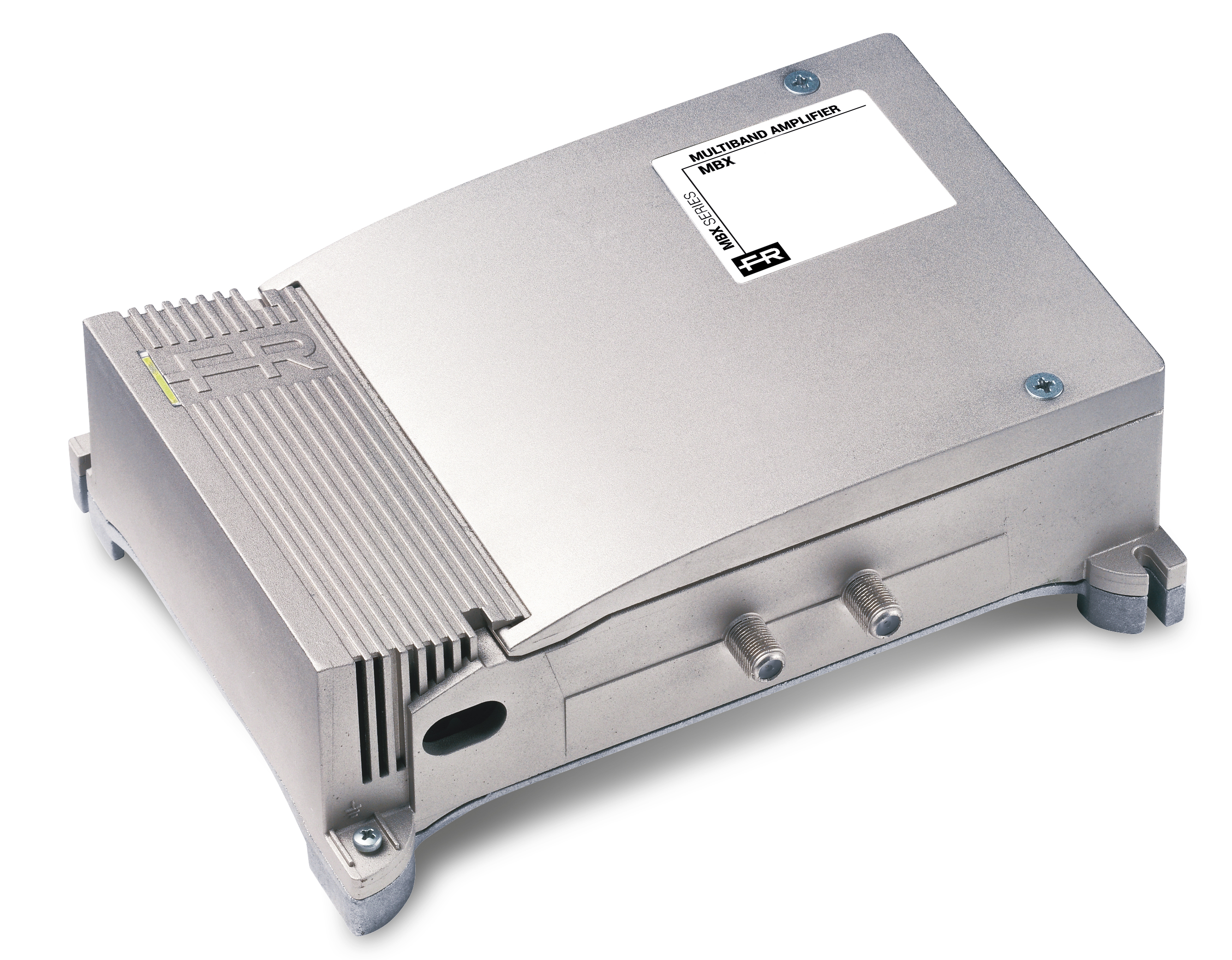

MBX5741 T2UK

Code 235127

4 Inputs

Central unit with 4 inputs (FM, III+DAB, UHF, UHF) self-powered indoor with 43dB gain and output level up to 125dBμV in UHF band, separate band amplifications, independent gain adjustments (0-20dB) for each input and low noise figure. Built-in 5G and 4G LTE 694MHz filter and UK G-type plug.

Technical chars

The high gain and high output level make it ideal for use in medium to large centralised systems.
High shielding against 5G and 4G LTE noise thanks to die-cast ZAMA chassis with F-connectors and metal cover with captive screws covering the amplification section.
Adjustments on the inside, under the cover, to prevent tampering by third parties.
-30dB test socket available on all models.
Jumpers for inserting remote power supply on all inputs (100mA total), self-resetting short-circuit protection system and power supply status LED.
High-performance, low-power switching power supply.
Clamp for connection of TV system earth.
Plug for G-type mains connection for countries: England, Ireland, Malta, Malaysia and Singapore.

Specifications
		MBX5741 T2UK
Code		235127
Input no.		4
Inputs		FM, III+DAB, UHF, UHF
Frequency FM	MHz	88 - 108
DAB, III Frequency	MHz	174 - 230
Frequency	MHz	470 - 694
Gain	dB	FM: 35; III+DAB: 38; UHF: 43; UHF: 43
Gain adjustment	dB	FM: 20; III+DAB: 20; UHF: 20; UHF: 20
Optical noise figure	dB	FM: 4.5; III+DAB: 4.5; UHF: 7.5
Outputs number		1
Output level	dBµV	FM: 122; III+DAB: 122; UHF: 125
Connectors		F female
Power supply voltage	Vdc/A	220-230 / 50-60
Current consumption	W	8.5
Isolation class		II
Remote feeding		100mA@12V total
Output test	dB	-30
Impedence	Ω	75
Operating temperature	°C	-10 to +55
Protection		IP20
Conformity		EN62368-1:2014/AC:2015; EN50083-2:2012/A1:2015
Dimensions and packaging
Pieces		1
EAN code		8016978107407
Product dimensions	mm	194 x 143 x 64
Net Weight	kg	2.1
Weight	kg	2.2
