OPT RX QD MICRO

Code 270661

Receivers

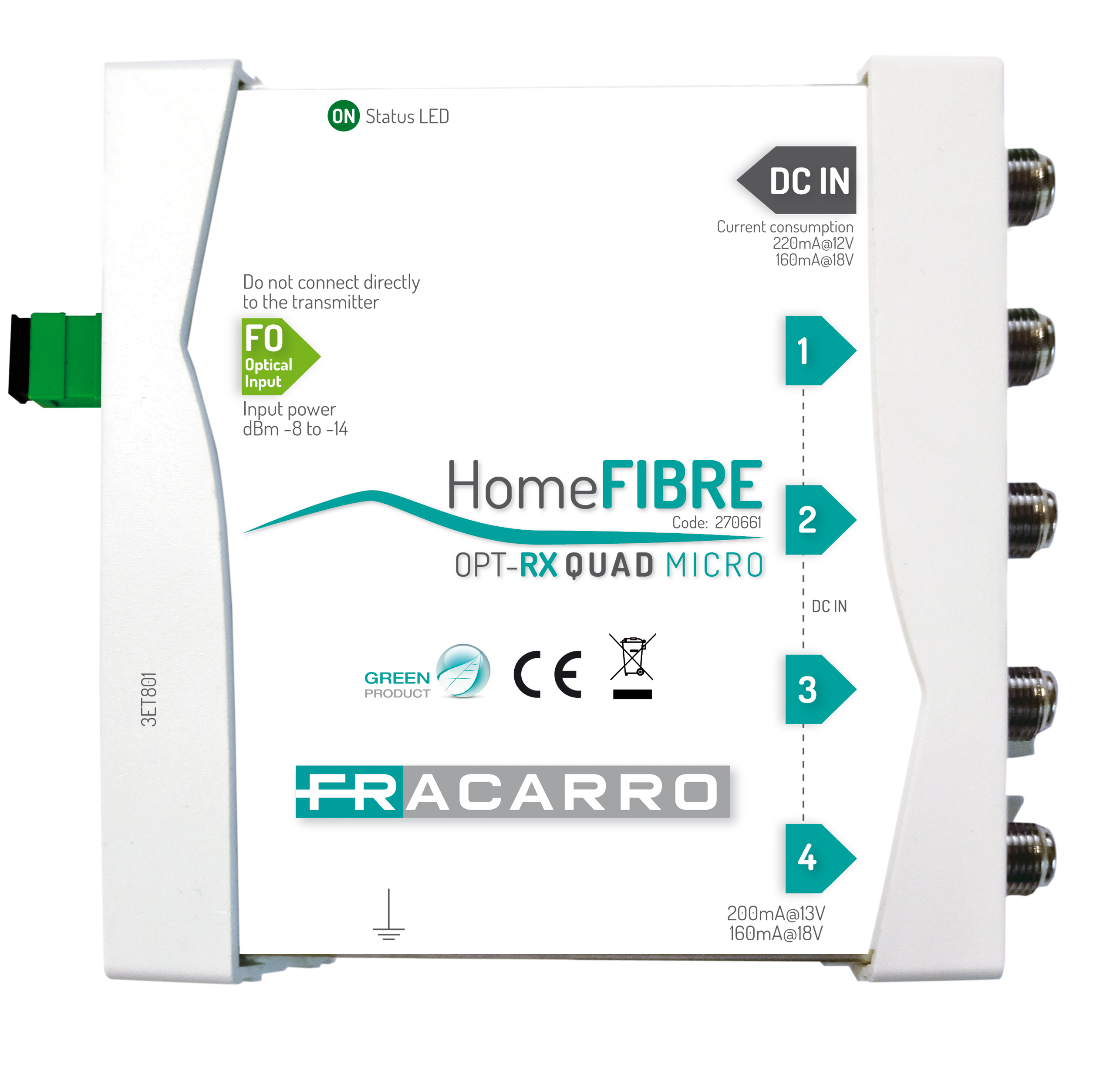

Optical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connector

Technical chars

  • Low current consumption
  • Standard SC/APC optical connector
  • Quick and easy installation due to very small dimensions
  • Optical budget: up to 21dB
  • Optical range extended reception (from -8dBmo to -14dBmo)
  • Full band: 87-862 for TV / 950-2150 for SAT polarities
  • Multi-function LEDs: power status and signalling.
OPT RX QD MICRO
Code 270661
Optical input
Optical input connector 1 x SC/APC
Wavelength input nm 1260-1650
Optical input power dBm ≤ -8
RF output
Connectors type F Female
Return loss dB -10
Outputs 4 x TV + SAT
Output level TV
8dBmo 8 transponder dBµV 79
8dBmo 16 transponder dBµV 76
8dBmo 40 transponder dBµV 72
14dBmo 8 transponder dBµV 67
14dBmo 16 transponder dBµV 64
14dBmo 40 transponder dBµV 60
Output level SAT
8dBmo dBµV 74
14dBmo dBµV 62@TP
Specifications
Power supply voltage V 14/18 from all outputs
Current consumption mA 200@13V
Current consumption W 2.8
LED
  • Green LED on: normal operation (correctly powered)

  • LED flashing quickly: hardware anomaly

  • LED flashing slowly: optical power out of the operating range

Operating temperature °C -5 to +50
Conformity CEI EN 50083-2 EN60065
Dimensions and packaging
Pieces 1
EAN code 8016978101733
Packaging dimensions mm 110 x 130 x 37
Product dimensions mm 120 x 100 x 36
Packaging weight Kg 0.312
