OPT-TX RP
Code 270652
Transmitters

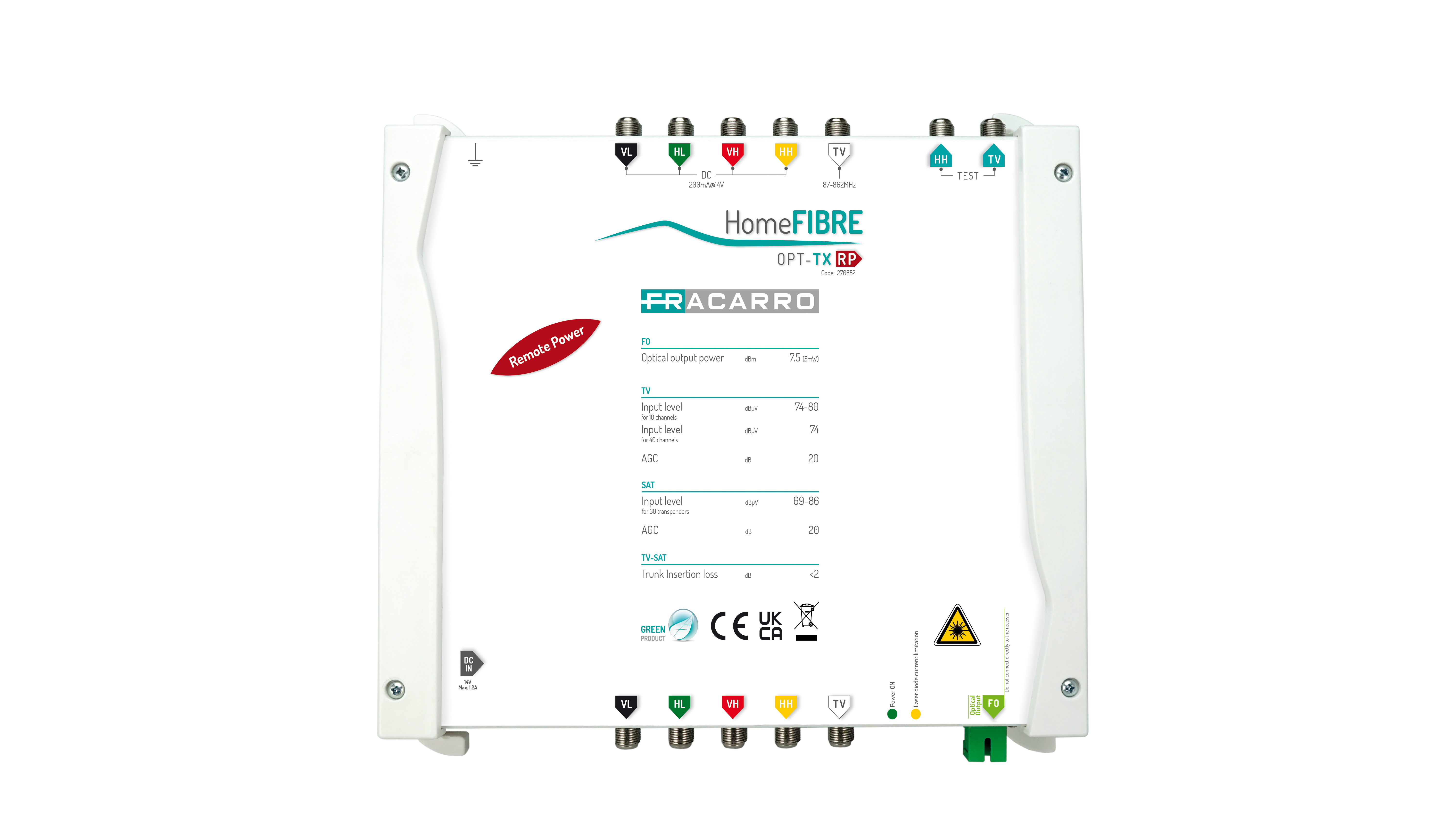

Optical transmitter that can distribute up to 4 satellites on a single fiber using CWDM (Coarse Wavelenght Division Multiplexing) technology. Innovative solution that allows the transmission of the entire TV band, FM, and an orbital position on a single fiber. Output power 7 dBm SAT + TV + FM, wavelength 1310 nm. (dimensions 230x230x50mm). The transmitter can be installed near the dish in a waterproof box thanks to the separate power supply.
Technical chars
- Installation of conventional type dish
- Transmitter equipped with AGC that allows the use of dishes of different diameters.
- Cascade solution typical of MSW systems
- Up to 21dB optical attenuation of tract
- Easy and intuitive installation
- Full terrestrial band transmission
- Tele-powered
| OPT-TX RP | ||
| Code | 270652 | |
| Input RF | 5 (4 SAT + 1 TV) | |
| Optical Output | 1 x SC/APC | |
| SAT inputs | ||
|---|---|---|
| Bandwidth | MHz | 950-2150 |
| SAT Connectors | F Female | |
| Output level SAT | dBµV | 69-86 |
| Return loss | dB | 10 |
| SAT Trunk line loss | dB | <2 |
| Input TV | ||
| Connectors | F Female | |
| Input level | dBµV | 80 @10 ch. |
| Frequency band | MHz | 87-862 |
| Return loss | dB | 10 |
| Through line loss | dB | 1 |
| RF output | ||
| Outputs | 7 (4 SAT + 1 TV + 2 TEST) | |
| TEST output | ||
| Connectors | F Female | |
| Frequency band | MHz | 87-862 / 950-2150 |
| Attenuation connectors | dB | 59 each channel |
| Return loss | dB | 10 |
| Optical output | ||
| Wavelength | nm | 1310 |
| Optical power | dBm | 8 (±1) |
| Optical return loss | dB | >30 |
| Safety class | 1M | |
| Specifications | ||
| Current consumption | mA | 1200 |
| Current consumption | W | 15 |
| LED | Green LED: TX on; Red LED: laser current too high |
|
| Operating temperature | °C | -5 to +55 |
| Conformity | CEI EN 50083-2 EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978105984 | |
| Packaging dimensions | mm | 395 x 300 x 70 |
| Product dimensions | mm | 230 x 230 x 50 |
| Packaging weight | Kg | 2.21 |
