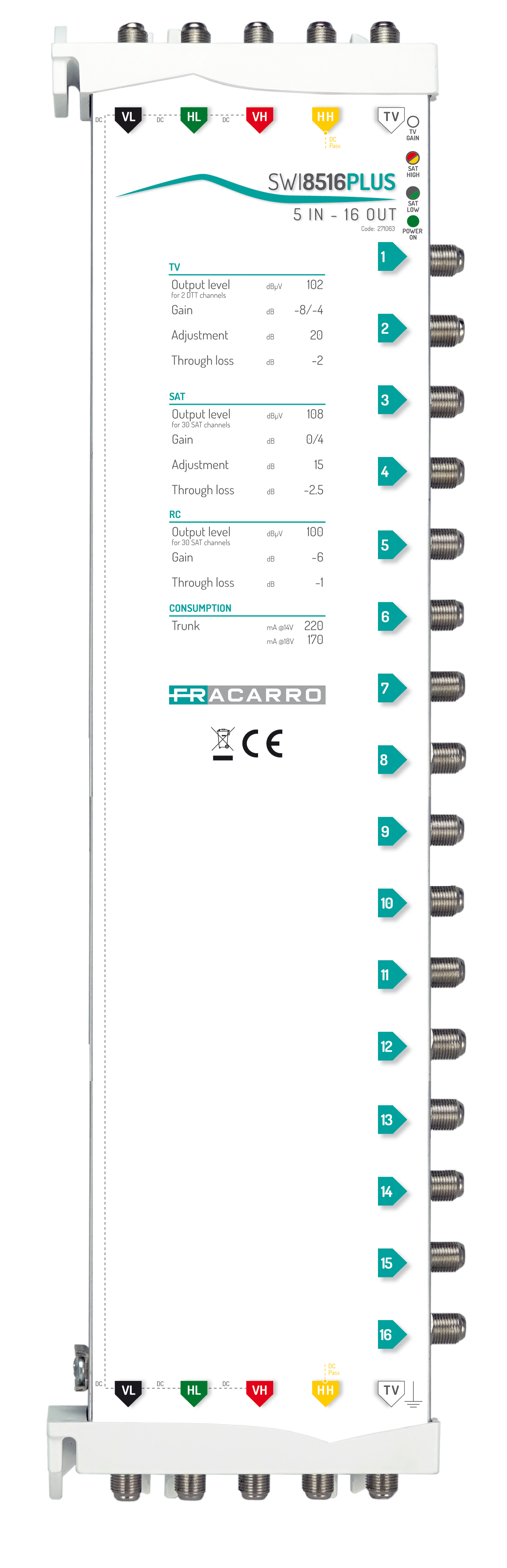

SWI8516PLUS
Code 271063
5 Inputs
5-input cascadable multiswitch with 16 output taps; active gain and separate TV and Satellite gain Adjustment (independent for low and high bands).
Technical chars
- TV gain adjustment.
- 2 settings for Satellite signal gain, separate high-band and low-band.
- High isolation (> 45dB).
- Low pass loss.
- Very high output level to cover long cable distances(100m with 6.7mm cable).
- Return channel included.
- Low power consumption.
- Easy to install due to standard input colouring
| SWI8516PLUS | ||
| Code | 271063 | |
| Inputs | 4 SAT, 1 TV | |
| Outputs | 4 SAT, 1 TV | |
| Taps | 16 | |
| SAT | ||
|---|---|---|
| Bandwidth | MHz | 950-2150 |
| Gain | dB | 0/4 |
| Gain adjustment | dB | 15 |
| Max Output level | dBµV | 108 |
| Insertion loss | dB | -2.5 |
| TV | ||
| TV bandwidth | MHz | 85-862 |
| Gain (Active) | dB | -8/-4 |
| Gain adjustment | dB | 20 |
| Max Output level | dBµV | 102 |
| Insertion loss | dB | -2 |
| Return channel | ||
| Bandwidth | MHz | 5-65 |
| Gain | dB | -6 |
| RC max output level | dBµV | 100 |
| Insertion loss | dB | -1 |
| Consumption | ||
| Absorption | mA | 220@14V; 170@18V |
| Specifications | ||
| Operating temperature | °C | -10 to +55 |
| SAT-SAT Isolation | dB | >45 |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978079858 | |
| Packaging dimensions | mm | 440 x 125 x 35 |
| Product dimensions | mm | 425 x 120 x 30 |
| Packaging weight | kg | 1 |
