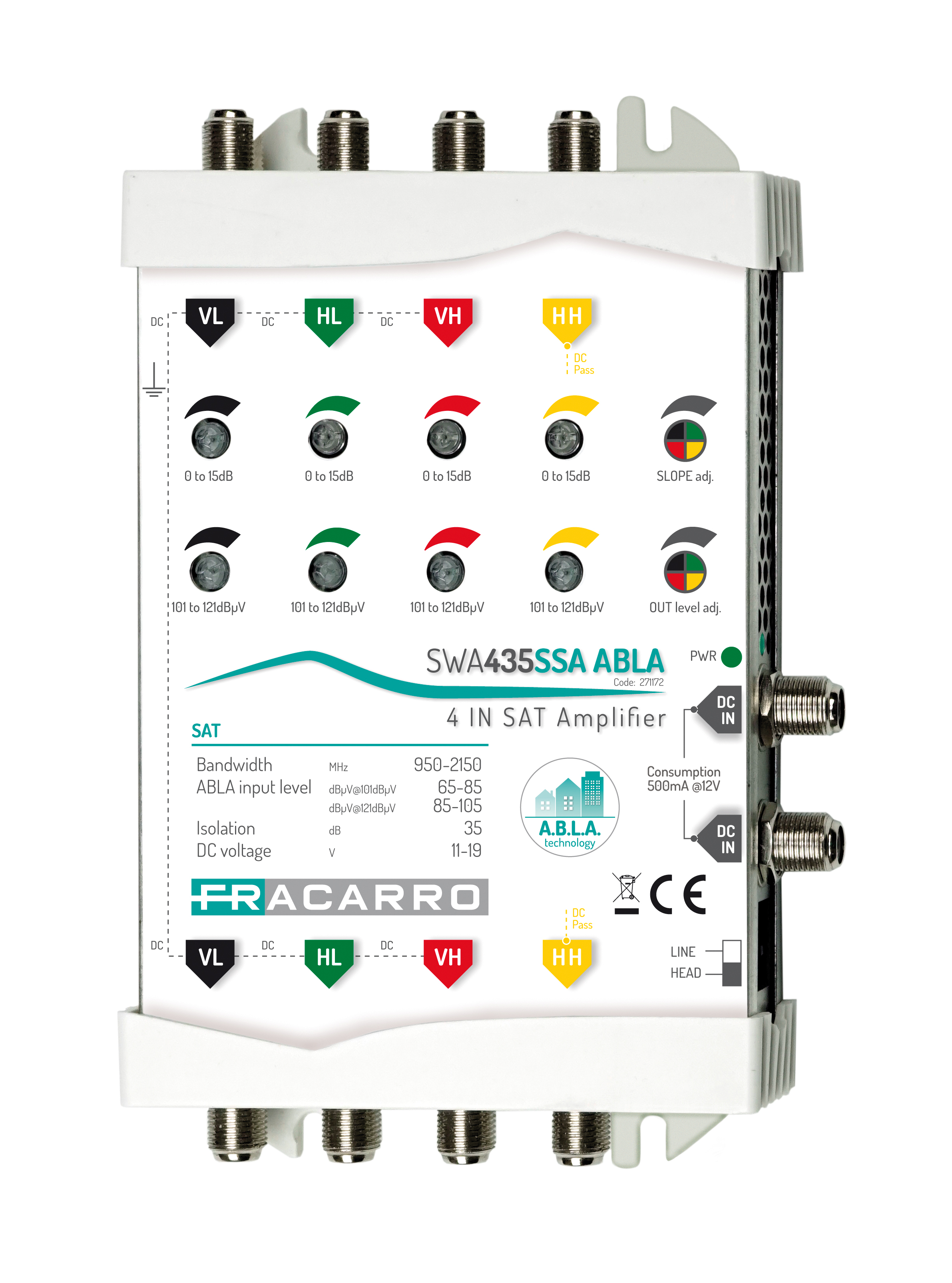

SWA435SSA ABLA
Code 271172
4 Inputs ABLA
Line amplifier with 4 satellite inputs, A.B.L.A. technology and slope and output level adjustment.
Technical chars
- ABLA technology output level and slope adjustment for each Satellite input.
- Thanks to A.B.L.A. (Automatic Building Level Adjustment) technology, the amplifier maintains the set output level even when the input signal strength varies.
- A.B.L.A. LEDs light up when the automatic output signal adjustment is working properly; if the input level is too low, the LED goes out and the product behaves like a normal fixed-gain Satellite amplifier (36dB).
- High Satellite output level (121dBµV) and excellent separation between inputs (35dB).
- Powered remotely via Satellite 1 (VL), 2 (HL) and 3 (VH) lines or by DC connector on the side of the mechanism.
- DC pass-through on Satellite HH line.
- Voltage passage from DC port downwards protected against overloads and controlled by dip switch located on the side of the mechanism.
- Double power supplyport to offer greater robustness to the system.
- Currentoverload protection on the DC port.
- Ideal for medium and large installations or where there are long distances between multiswitches.
- Easy to install thanks to new trimmers and standard input colouring.
- External power supply PSU1830 (18V, 3000mA) not included in the package
| SWA435SSA ABLA | ||
| Code | 271172 | |
| Inputs | 4 SAT | |
| Outputs | 4 SAT | |
| SAT | ||
|---|---|---|
| Bandwidth | MHz | 950-2150 |
| Gain | dB | Self-regulated A.B.L.A. 16-36 |
| SAT tilt adjustment | dB | 15 |
| AGC | dBµV | Dipende dal livello di uscita impostato: 65-85 @101dBµV; 85-105 @121dBµV |
| Max Output level | dBµV | 101-121 |
| Return loss | dB | 10 |
| Consumption | ||
| Power supply voltage | V | 11-19 |
| Absorption | mA | 550 @12V |
| Max current consumption LNB | mA | 900 |
| Maximum power supply current SAT | mA | 2000 |
| Features | ||
| Dimensions power supply | mm | Not included |
| Working temperature | °C | From -10 to +55 |
| SAT-SAT Isolation | dB | ≥35 |
| Dimensions and packaging | ||
| Pcs | 1 | |
| EAN code | 8016978101696 | |
| Packaging dimensions | mm | 215x125x35 |
| Product dimensions | mm | 160x110x30 |
| Packaging weight | Kg | 0.415 |
