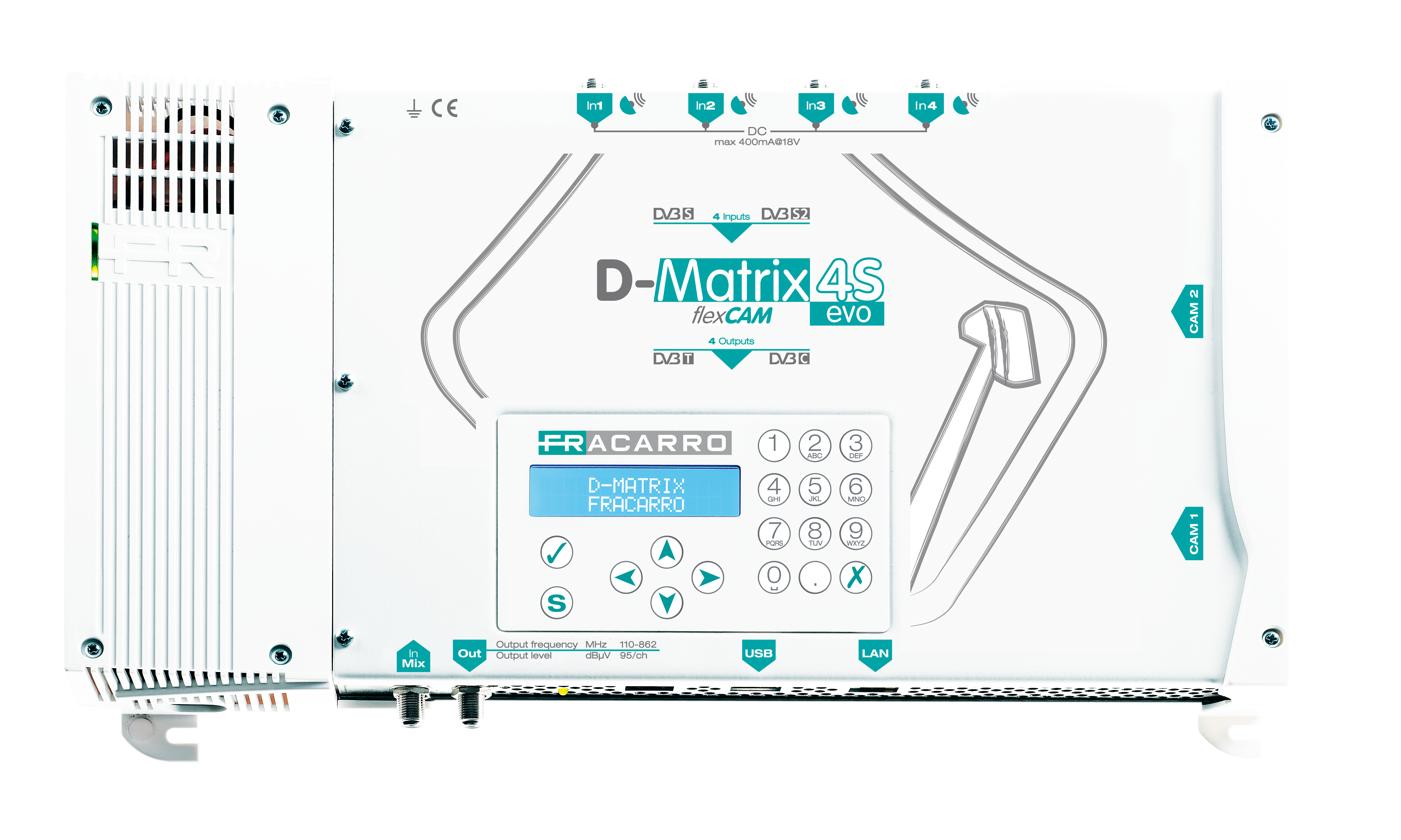

D-MATRIX 4S EVO
Code 283132
Satellite S2
The compact D-Matrix-4S EVO control unit allows the user to receive from 4 different independent satellite transponders the desired HD or SD programs (FREE or encoded) and output them back to the 4 available digital multiplexes (COFDM or QAM) across the TV band.
Technical chars
Multiple SAT inputs: 4 independent SAT inputs(DVB-S2), 4 output DVB-T/DVB-C modulators (2 pairs of adjacent modulators).
Optimized CAM management: the brand new DMATRIX-4S EVO allows both CAMs to be managed in 2 different operation modes: FLEXCAM and STANDARD mode
ImprovedWEB interface: programming the control panel is even more intuitive.
"Mux-ad-Hoc": possibility to create your own mux at will with programs chosen from 4 independent SAT sources
ARP 2.0 = Automatic Recovery Procedure allows you to safeguard programs with higher priority and ensure continuity of service
AUTO REMAPPING functionality: ability to change channels to be distributed in real time without retuning televisions
Multi-functionUSB port for upload/download of existing configurations, module firmware upgrade and video playback (TS supported file format).
DVB-T/DVB-C output modulation selectable during programming: one product satisfies any coax distribution
| D-MATRIX 4S EVO | ||
| Code | 283132 | |
| Input | ||
|---|---|---|
| Input no. | 4 | |
| Input level | dBµV | 50-80 |
| Demodulators | DVB-S2 (8-PSK, QPSK), |
|
| Input band | 950-2150 | |
| Input AFC | MHz | ±5 |
| Symbol rate | Mbps | 2-45 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8, AUTO | |
| Remote feeding | mA | 400mA@18V max |
| LNB controls | DiSEqC 1.0 | |
| Outputs | ||
| Multiplexes created | 4 (2 pairs of adjacent digital multiplexes) | |
| Output | S2-E69 | |
| Output frequency | dB | 111-862 |
| Tuning step | KHz | 250 |
| Max output level | dBµV | 95 |
| Level adjustment | dB | 0 to 20 |
| Flatness | dB | ±1.5 |
| MER RF | dB | ≥36 |
| Spurious rejection | dB | <-50 |
| Spectrum | Normal, inverted | |
| Operating method | Normal, single carrier | |
| DVB-T Modulation | ||
| Band | MHZ | 6,7,8 |
| Output | QPSK, 16-QAM, 64-QAM | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Carriers | 2k, 8k | |
| Guard interval modulation | 1/4, 1/8, 1/16, 1/32 | |
| DVB-C Modulation | ||
| Output | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | |
| Single channel band | Related to output symbol rate | |
| FEC | Reed Solomon (204, 188) | |
| Symbol rate | Mbps | From 1000 to 6999 |
| IP output | ||
| Connectors | 4 | |
| Specifications | ||
| Connectors | SW update and video playback (type A, FAT32 filesystem, .TS file playback) | |
| Programming mode | Web interface, keyboard and front display | |
| Current consumption | W | 42 (2 x CAM inserted) |
| Common interface | 2 x PCMCIA (Standard EN50221, TS10169) Flex CAM or Standard Mode | |
| Operating temperature | °C | -10 to +50; -10 to +45 (with CAM) |
| Conformity | EN50083-2, EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978096961 | |
| Packaging dimensions | mm | 300 x 400 x 70 |
| Product dimensions | mm | 360 x 230 x 54 |
| Packaging weight | Kg | 3 |
