3DG-4T2-4T
Code 283165
Terrestrial T2

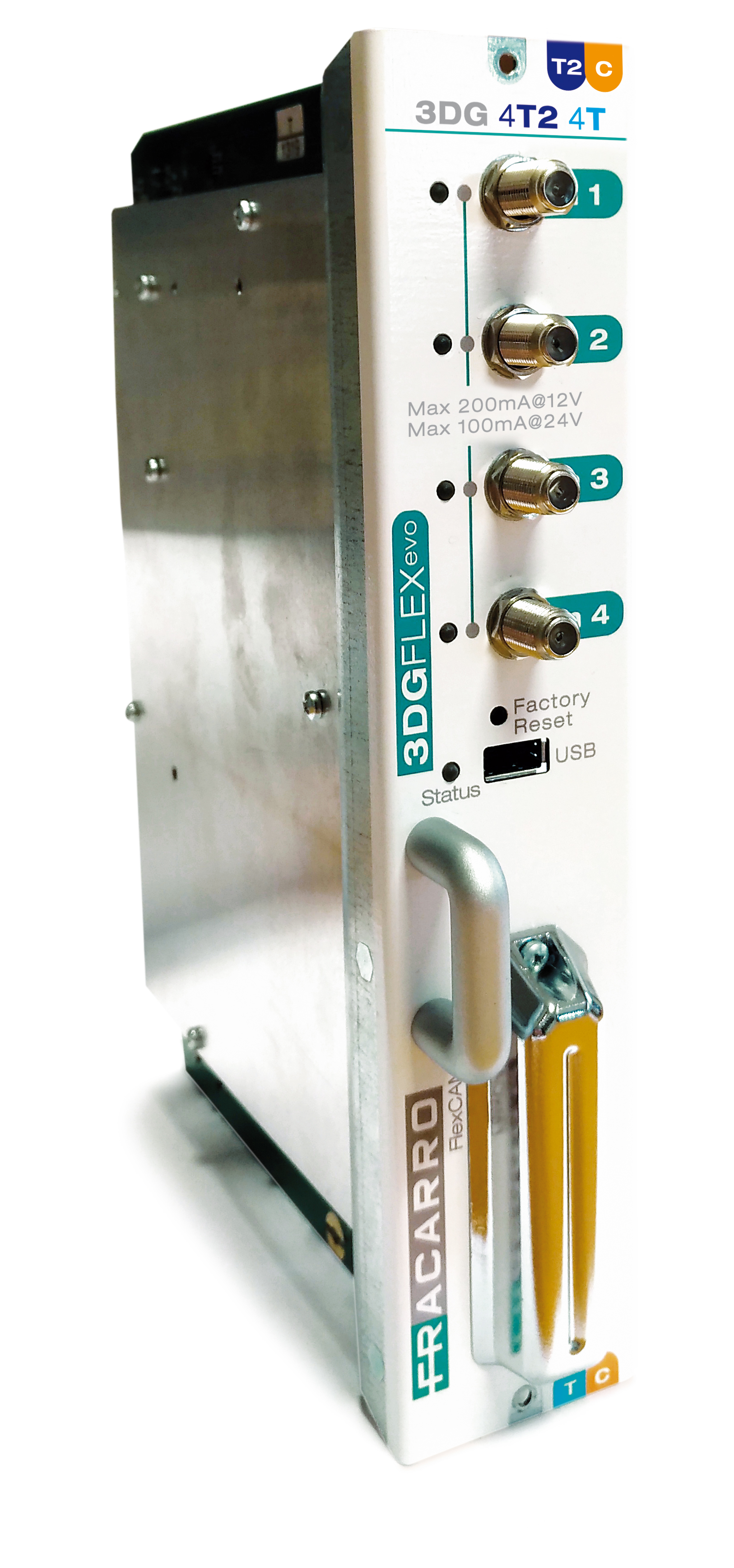

DVB-T2/T DVB-C to DVB-T/C Transmodulator. The module allows you to receive from 4 different independent DVB-T or DVB-C frequencies and the Back Panel ("Smart & Pool") the desired HD or SD programs, decrypt them via the Professional CAMs, and remodulate them to output into the 4 available digital multiplexes (COFDM or QAM) across the TV band.
Technical chars
| 3DG-4T2-4T | ||
| Code | 283165 | |
| Input | ||
|---|---|---|
| Input no. | 4 | |
| Input level | dBµV | 40-85 |
| Demodulators | DVB-T2, DVB-T o DVB-C (selectable) | |
| Input band | 174-862 | |
| Channel | E5-E69 | |
| Input AFC | MHz | ±400 (DVB-T2/T), ±100 (DVB-C) |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 Reed Solomon (204, 188) | |
| Remote feeding | mA | 2 x 100 max (12V) |
| Back panel | ||
| Output type TS | Serial | |
| TS outputs | 48 pins on Back Panel | |
| TS max bitrate | Mbps | 1,000 (bi-directional) |
| Outputs | ||
| Multiplexes created | 4 (2 pairs of adjacent digital multiplexes) | |
| Output | S2-E69 | |
| Output frequency | dB | 111-862 |
| Tuning step | KHz | 250 |
| Max output level | dBµV | 95 |
| Level adjustment | dB | From 0 to 20 |
| Flatness | dB | ±1.5 |
| MER RF | dB | ≥36 |
| Spurious rejection | dB | <-50 |
| Spectrum | Normal, inverted | |
| Operating method | Normal, single carrier | |
| DVB-T Modulation | ||
| Band | MHZ | 6,7,8 |
| Output | QPSK, 16-QAM, 64-QAM | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Carriers | 2k, 8k | |
| Guard interval modulation | 1/4, 1/8, 1/16, 1/32 | |
| DVB-C Modulation | ||
| Output | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | |
| Single channel band | Related to output symbol rate | |
| FEC | Reed Solomon (204, 188) | |
| Symbol rate | Mbps | From 1,000 to 6,999 |
| IP output | ||
| Connectors | 4 | |
| Specifications | ||
| Connectors | SW update and video playback (type A, FAT32 filesystem, .TS file playback) | |
| Programming mode | Web interface, keyboard and front display | |
| Current consumption | W | 5 (without CAM); 20 (with 2 CAM) |
| Common interface | 2 x PCMCIA (Standard EN50221, TS10169) Flex CAM or Standard Mode | |
| Operating temperature | °C | -10 to 50; -10 to 45 (with CAM) |
| Conformity | EN50083-2, EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978100071 | |
| Packaging dimensions | mm | 305 x 220 x 85 |
| Product dimensions | mm | 245 x 208 x 54 |
| Packaging weight | Kg | 1.126 |
