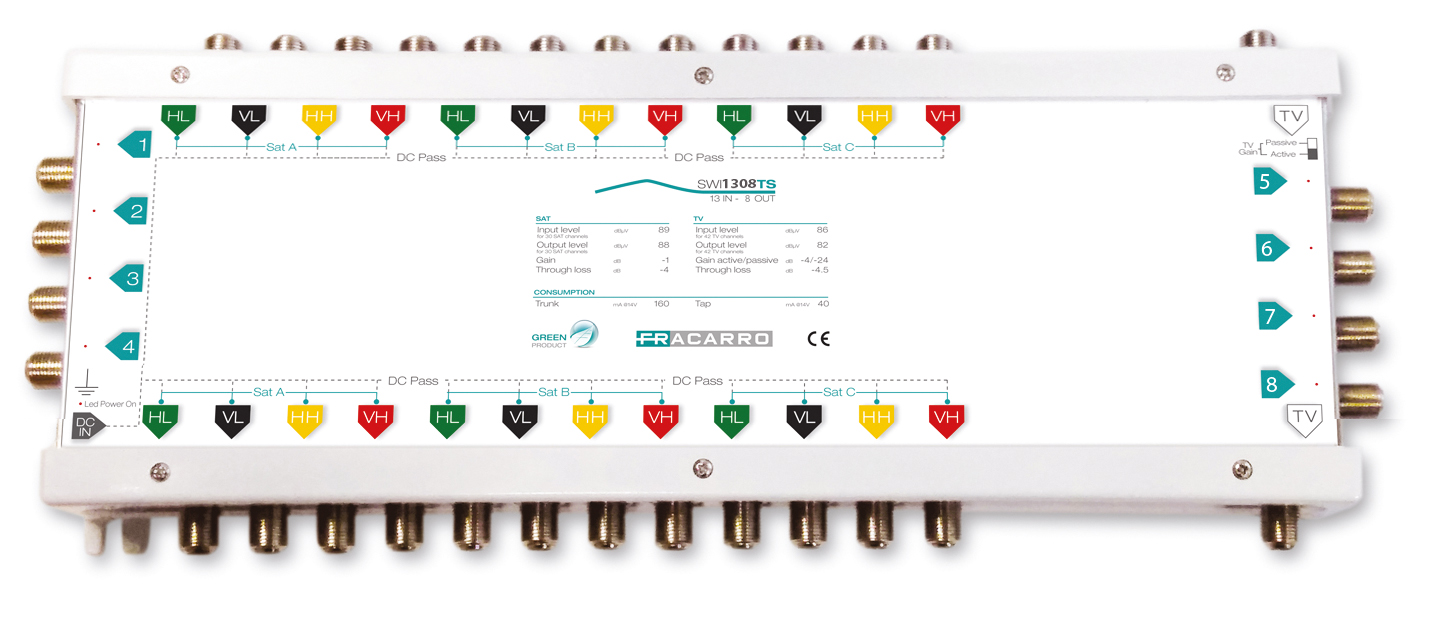

SWI1308TS
Code 287365
13 Inputs
13-input cascadable multiswitch with 8 output taps; DIP switch to select active and passive TV gain.
Technical chars
- Satellite band up to 2300MHz.
- High output level to cover long cable distances(60m with 6.7mm cable).
- Each port has an LED to show correct reception of DiSEqC commands.
- Return channel included when TV gain is passive (5-65MHz).
- When TV gain is passive, the product is fully powered by the receivers, the power supply only serves to power the active TV gain, other amplifiers and LNBs.
- External PSU1340TS power supply (13V, 4A) with Male Jack connector (2.1x5.5x12; inside positive, outside negative) not included in the package; to optimise installation space and reduce maintenance time.
- Small size due to matrix switching system, with connectors on both sides.
- Easy to install due to standard input colouring
| SWI1308TS | ||
| Code | 287365 | |
| Inputs | 12 SAT, 1 TV | |
| Outputs | 12 SAT, 1 TV | |
| Taps | 8 | |
| SAT | ||
|---|---|---|
| Bandwidth | MHz | 950-2300 |
| Gain | dB | -4/0 |
| Max Output level | dBµV | 100 |
| Insertion loss | dB | -1/-3 |
| TV | ||
| TV bandwidth | MHz | Active TV: 47-862; Passive TV: 5-862 |
| Gain (Active) | dB | -2 |
| Gain (Passive) | dB | -22 |
| Max Output level | dBµV | Active: 95 |
| Insertion loss | dB | -4/-5 |
| Return channel | ||
| Bandwidth | MHz | Passive TV: 5-65 |
| Consumption | ||
| Tap | mA | 50 |
| Absorption | mA | Active TV: 160@13V; Passive TV: entirely fed by the receiver |
| Maximum power supply current SAT | mA | Passive TV: 4000; Active TV: 3840 |
| Specifications | ||
| Operating temperature | °C | -10 to +55 |
| SAT-SAT Isolation | dB | >30 |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978097135 | |
| Packaging dimensions | mm | 330 x 245 x 50 |
| Product dimensions | mm | 120 x 310 x 40 |
| Packaging weight | Kg | 1.1 |
