PSU1220JA
Code 287405
Jack EJA

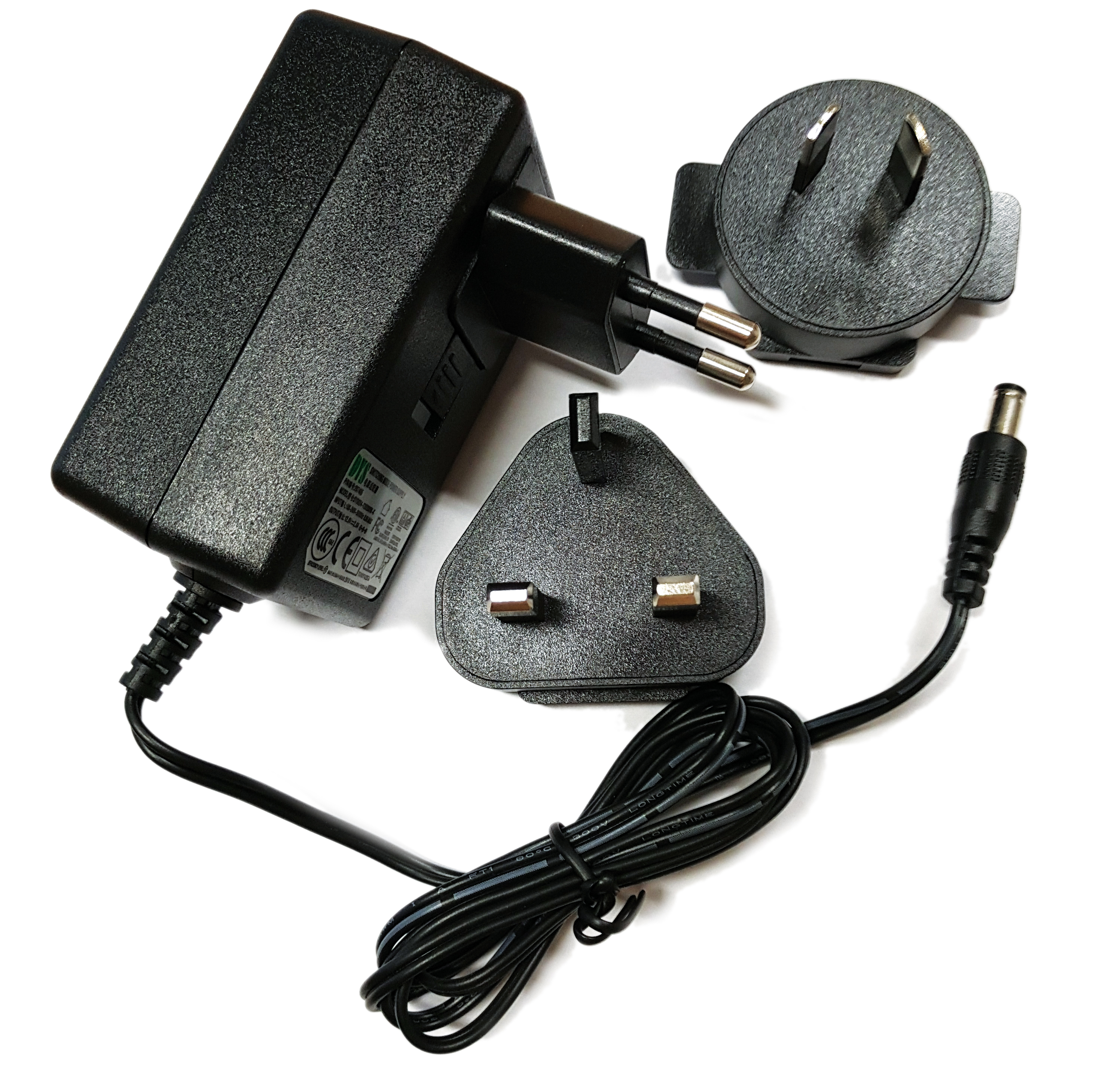

12V 2A power supply with Male Jack connector (2.5x5.5x12; inside positive, outside negative) and adapters for standard plugs of different countries.
Technical chars
- Ideal as a replacement power supply for SWP5..QD series multiswitches.
- Protected against overloads to ensure perfect system efficiency.
- Easily connectable to sockets in different countries via adapters for Europe, South America and Asia(type C), England, Ireland, Malta, Malaysia and Singapore(type G) USA, Canada, Mexico and Japan(type A) and Australia, New Zealand, China and Argentina(type I).
- Insulation class II.
- Compact dimensions.
| PSU1220JA | ||
| Code | 287405 | |
| Power supply voltage | Vac/Hz | 220-240 / 50–60 |
| Mains plug | with adapters | |
| Isolation class | II | |
| Output voltage | V | 12 |
| Max current | mA | 2000 |
| Connector | M-Type Jack 2,1x5,5x12 | |
| Polarity | Inner positive, outer negative | |
| Features | ||
|---|---|---|
| Working temperature | °C | From 0 to +45 |
| Dimensions and packaging | ||
| EAN code | 8016978099474 | |
| Product dimensions | mm | 78x48x35 |
