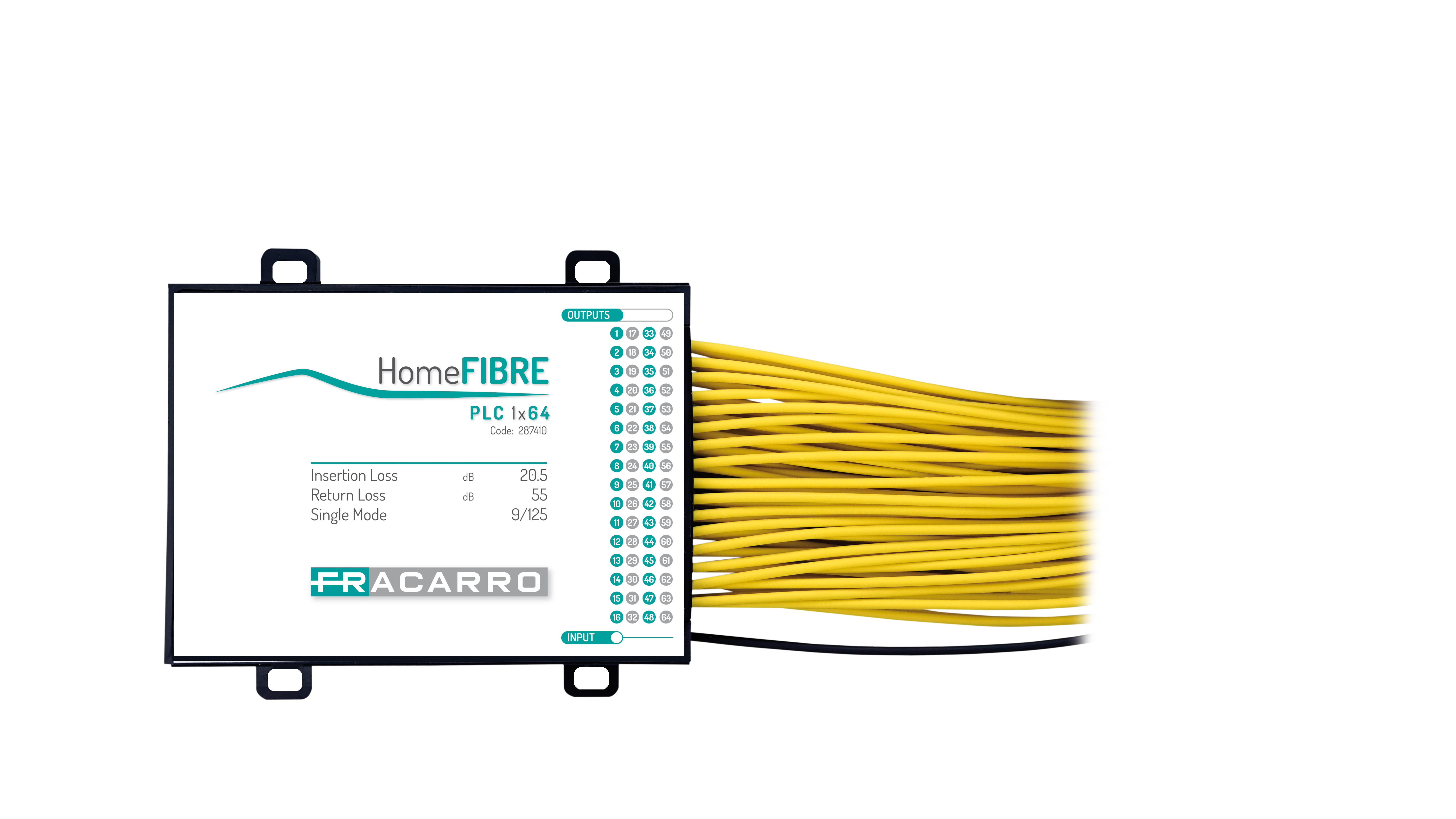

PLC 1x64
Code 287410
PLC
64-way optical partition suitable for building ROEs, with planar waveguide technology enabling very low insertion losses.
Suitable for low-cost, high-performance optical distribution, it is suitable for use in countless installation types.
Technical chars
SC/APC connectors
Very high return loss
1 m patch cords
Compact design
| PLC 1x64 | ||
| Code | 287410 | |
| Input | 1 | |
| Outputs | 64 | |
| Connectors | SC/APC - SC/APC | |
| Insertion loss | dB | <20.5 |
| Return loss | dB | >55 |
| Isolation | dB | >40 |
| Wavelength input | nm | 1260-1650 |
| Fiber type | Single-mode 9/125 | |
| Sheath | G657 A1 | |
| Fibre length | m | 1 |
| Connector type | Simplex | |
| Specifications | ||
|---|---|---|
| Operating temperature | °C | -20 to +55 |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978099542 | |
| Packaging dimensions | mm | 240 x 200 x 20 |
| Product dimensions | mm | 90 x 100 x 20 |
| Packaging weight | Kg | 0.5 |
