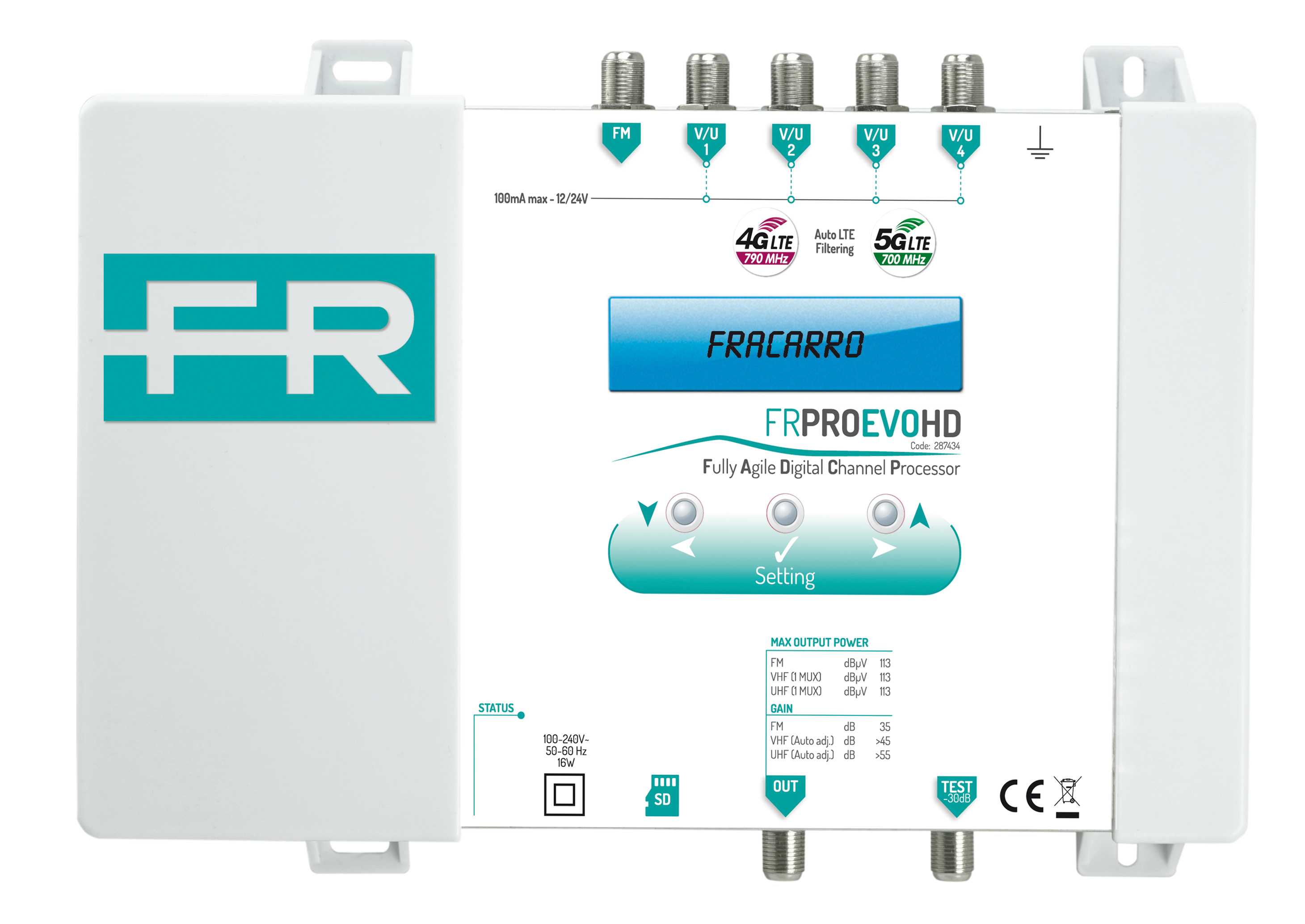

Programmable headends

5-input (B1+FM, 4x VHF/UHF flexible) programmable head-end to carry out high selectivity filters with up to 118dBμV output level for each filter. 32 filters from 1 to 6 channels, each with 9 selectivity levels.

New features Self equalizer and RMC have been added from Rev.03.

Technical chars

  • Self Equalizer: the product scans the signals received in the inputs and automatically amplifies the detected channels, equalizing them in the output. It can be done automatically after each short power failure or, via SW executed or disabled.

  • Repeated Mux Conversion: in case of isofrequency channels present on multiple inputs, you can choose to keep only the higher power channel, or convert the lower power channel on the free 5G and 4G LTE frequencies (694 - 862 MHz).

  • The station can filter, convert, amplify and distribute many DVB-T/T2 digital terrestrial multiplexes available in both VHF and UHF bands.

  • Perfect equalization of output signals.

  • Isofrequency filtering or channel conversion.

  • Automatic gain control on each individual mux.

  • Automatic 5G LTE filtering.

  • Reduces noise when a channel is turned off by the broadcaster so as not to affect adjacent channels.

  • Quick and easy installation and programming with on-board display and keypad and real-time readout of input and output levels.

Code 287434
Inputs B1+FM, 4x VHF/UHF
Input no. 5
Connectors F female
Filter Flexible Matrix 32/1..6
Frequency FM MHz 47 - 108
DAB, III Frequency MHz 174 - 240
Frequency MHz 470-862 or 470-694 AUTO LTE Filter
Dynamic adj dB >75 (auto AGC)
VHF input level dBµV 40-109
Maximum input level UHF dBµV 40-109
Outputs number 1
Connectors F female
Mixed band MHz 47 - 108/174 - 240/470 - 862
Max output level FM dBµV 113 (60dBIM3)
UHF Max Output level dBµV 118 (for each filter VHF/UHF)
Gain adjustment dB 20
TV tilt adjustment dB 15
VHF gain adjustment dB 15
Cluster selectivity filter dB 50 @1MHz
Return loss dB >10
Power supply voltage Vdc/A 100-230 / 50-60
Power supply voltage V -
Current consumption W 15
Isolation class II
Remote feeding 100 (12/24V)
Output test dB -30
Operating temperature °C -5 to +50
Protection IP20
Conformity EN60065: 2004-06, EN50083-2: 2002-05
Dimensions and packaging
Pieces 1
EAN code 8016978100507
Packaging dimensions mm 270 x 228 x 68
Product dimensions mm 217 x 165 x 59
Packaging weight Kg 1.24
Net Weight Kg 1
Weight Kg 0.8
