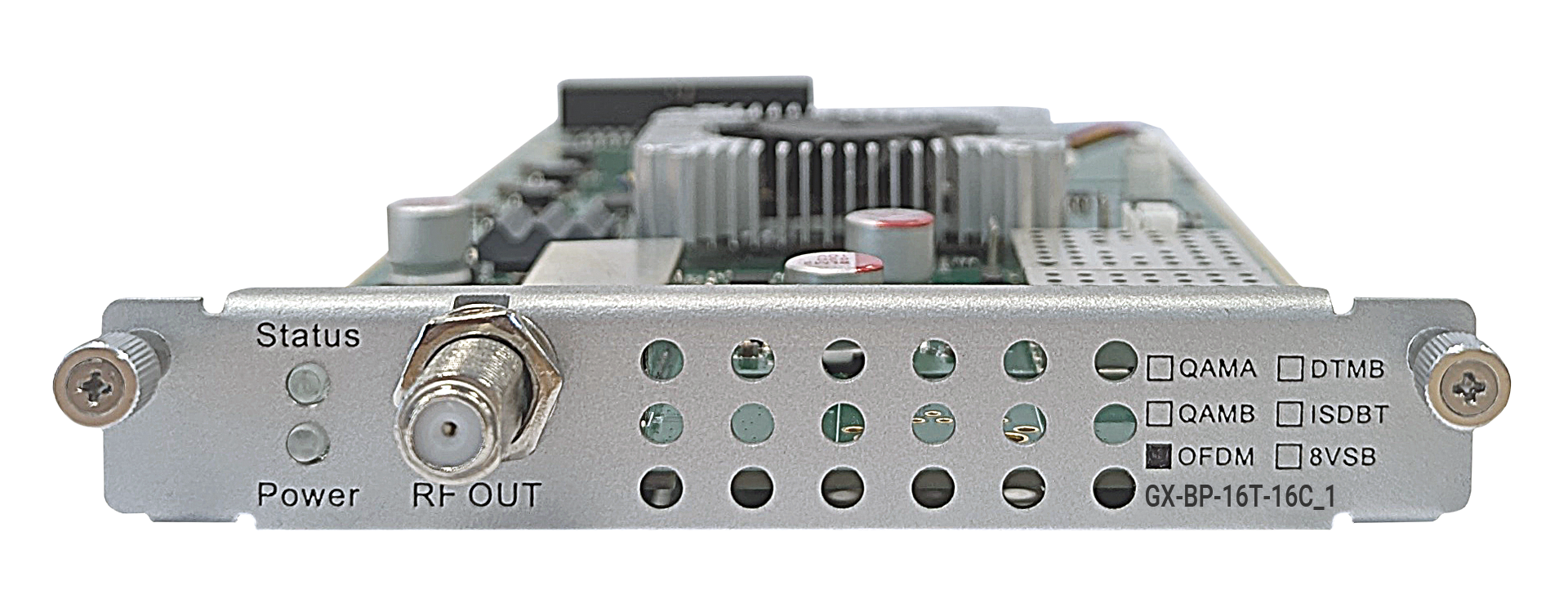

The GX-BP-16T-16C digital multi-modulator is equipped with an RF coaxial output connector (F female) and can generate up to 16 DVB-T/C digital multiplexes. The multi-modulator is the ideal and efficient transmodulation solution for distributing programs tuned by satellite or terrestrial digital modules installed in the same chassis or shared on the same GALAXIA backplane, including IPTV multicast input streams.
• 1 RF coaxial output connector (F female)
• Up to 16 digital multiplex outputs (DVB-T or DVB-C)
• Hot-swappable module
• On-board WEB interface: all parameters can be easily configured via the HTML web interface
| GX-BP-16T-16C | ||
| Code | 287818 | |
| Input | ||
|---|---|---|
| Input no. | 4 | |
| Demodulators | DVB-S2 (8-PSK, QPSK), DVB-S (QPSK) | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8, AUTO | |
| Remote feeding | mA | 4 x125 max (14/18V) |
| Back panel | ||
| Output type TS | Serial | |
| TS outputs | 48 pins on Back Panel | |
| TS max bitrate | Mbps | 1,000 (bi-directional) |
| Outputs | ||
| Multiplexes created | 4 (2 pairs of adjacent digital multiplexes) | |
| Output | S2-E69 | |
| Output frequency | dB | 47-862 |
| Max output level | dBµV | 102 |
| Level adjustment | dB | From 0 to 20 |
| MER RF | dB | ≥36 |
| Spectrum | Normal, inverted | |
| Operating method | Normal, single carrier | |
| DVB-T Modulation | ||
| Band | MHZ | 6,7,8 |
| Output | QPSK, 16-QAM, 64-QAM | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Carriers | 2k | |
| Guard interval modulation | 1/4, 1/8, 1/16, 1/32 | |
| DVB-C Modulation | ||
| Output | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | |
| Single channel band | Related to output symbol rate | |
| FEC | Reed Solomon (204, 188) | |
| Symbol rate | Mbps | From 1,000 to 6,999 |
| IP output | ||
| Connectors | 4 | |
| Specifications | ||
| Connectors | SW update and video playback (type A, FAT32 filesystem, .TS file playback) | |
| Programming mode | Web interface, keyboard and front display | |
| Current consumption | W | 23 |
| Common interface | 2 x PCMCIA (Standard EN50221, TS10169) Flex CAM or Standard Mode | |
| Operating temperature | °C | -5 to +50 |
| Conformity | EN IEC 62368-1:2020+A11:2020; EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A2:2021 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978109692 | |
| Packaging dimensions | mm | 330 x 185 x 80 |
| Product dimensions | mm | 270 x 115 x 20 |
| Packaging weight | kg | 1.5 |
