RKM12U66DCPRO
Code 287877
On the wall

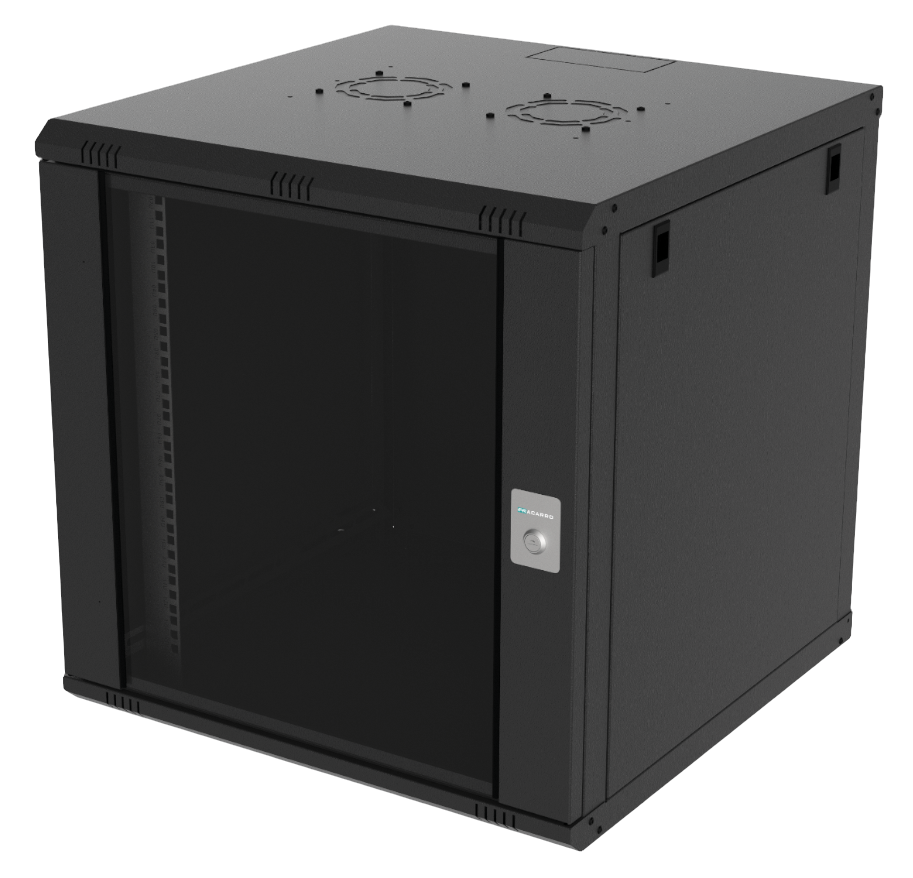

The 12U Rack from the PRO range is designed to simplify cabling in offices, small businesses, and homes without compromising on aesthetics and flexibility.
Thanks to the pre-installable bracket and reversible front door, the installer is assisted in the system reorganization phase.
Technical chars
Steel structure
Depth-adjustable uprights
Reversible tempered glass front door
Removable side panels
Prepared for the installation of a ventilation kit
Pre-cut on 3 sides for cable passage (top, rear, and bottom)
Wall mounting bracket included as standard
Screws and cage nuts supplied
Grounding kit supplied as standard
| RKM12U66DCPRO | ||
| Code | 287877 | |
| Specifications | ||
|---|---|---|
| Unit | 12 | |
| Product dimensions | mm | 600x600x620 |
| Net Weight | kg | 29 |
| Load capacity | kg | 80 |
| Base and roof structure | ||
| Material | Lamiera di acciaio | |
| Thickness | mm | 12/10 |
| Predisposition | Base e tetto pre-tranciati per installazione ventole di raffreddamento e ingresso cavi | |
| Side panels | ||
| Typology | Removibili tramite sgancio rapido | |
| Quantity | 2 | |
| Thickness | mm | 8/10 |
| Front door | ||
| Typology | Reversibile in vetro temperato con chiave di blocco | |
| Opening angle | ° | 236 |
| Internal uprights | ||
| Typology | Regolabili in profondità e numerati | |
| Quantity | 2 | |
| Material | Acciaio galvanizzato | |
| Thickness | mm | 17/10 |
| Typology | Verniciatura a polvere | |
| RAL | 9005 | |
| Colour | Nero | |
| Packaging | ||
| Pieces | 1 | |
| EAN code | 8016978110964 | |
| Packaging dimensions | mm | 650x650x650 |
| Packaging weight | kg | 31 |
Rack cabinet details
