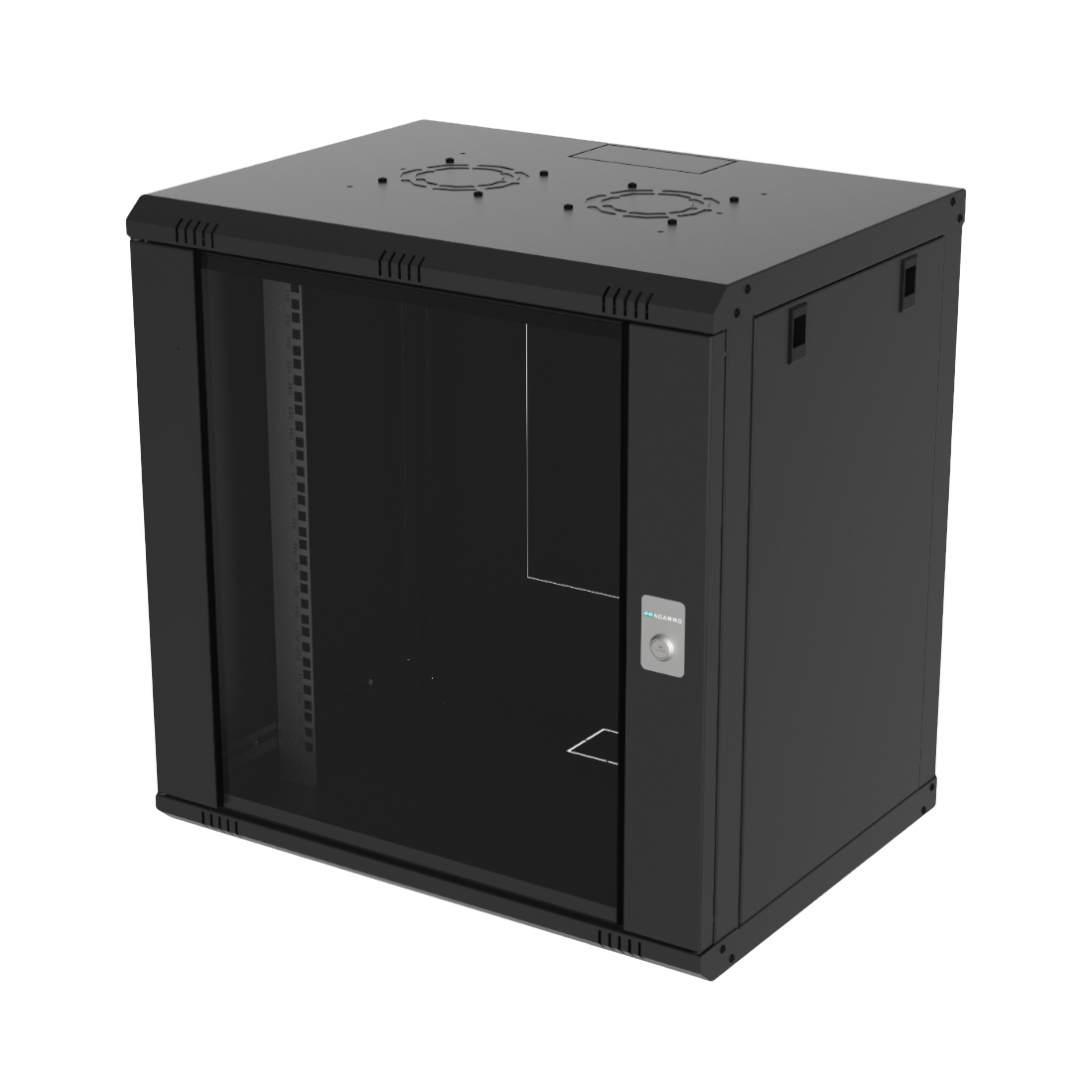

The 12U Rack from the PRO range is designed to simplify cabling in offices, small businesses, and homes without compromising on aesthetics and flexibility.
Thanks to the pre-installable bracket and reversible front door, the installer is assisted in the system reorganization phase.
Steel structure
Depth-adjustable uprights
Reversible tempered glass front door
Removable side panels
Prepared for the installation of a ventilation kit
Pre-cut on 3 sides for cable passage (top, rear, and bottom)
Wall mounting bracket included as standard
Screws and cage nuts supplied
Grounding kit supplied as standard
| RKM12U64DCPRO | ||
| Code | 287878 | |
| Specifications | ||
|---|---|---|
| Unit | 12 | |
| Product dimensions | mm | 600x450x620 |
| Load capacity | kg | 80 |
| Single net weight | kg | 27 |
| Single gross weight | kg | 29 |
| Base and roof structure | ||
| Material | Steel sheet | |
| Thickness | mm | 12/10 |
| Predisposition | Pre-cut base, bottom, and top panels for installing cooling fans and cable entry | |
| Side panels | ||
| Typology | Removable via quick-release mechanism | |
| Quantity | 2 | |
| Thickness | mm | 10/10 |
| Front door | ||
| Typology | Reversible tempered glass with locking mechanism | |
| Opening angle | ° | 236 |
| Internal uprights | ||
| Typology | Depth-adjustable and numbered | |
| Quantity | 2 | |
| Material | Galvanized steel | |
| Thickness | mm | 17/10 |
| Typology | Verniciatura a polvere | |
| RAL | 9005 | |
| Colour | Nero | |
| Packaging | ||
| Pieces | 1 | |
| EAN code | 8016978110957 | |
| Packaging dimensions | mm | 650x500x650 |
| Single net weight | kg | 27 |
| Single gross weight | kg | 29 |
Porta vetro anteriore
Supporto porta anteriore
Pannello inferiore
Montanti
Pannello laterale
Pannello posteriore
Staffa montaggio
Pannello superiore
