P85RX10-A
Code 211216
Penta 85 Series

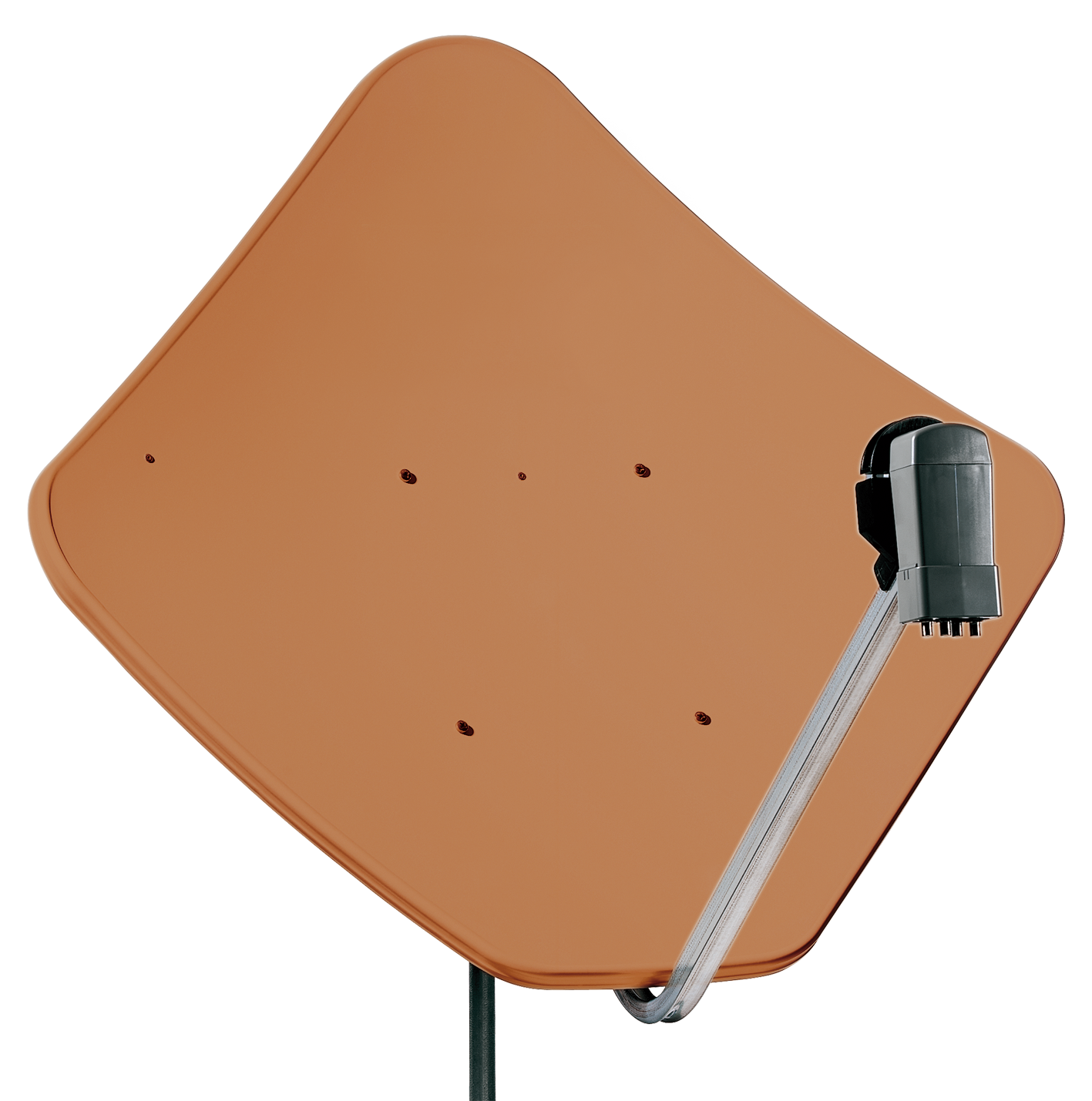

Steel offset brown-red dish with 85 cm equivalent diameter. 10 pcs multiple packaging.
Technical chars
- Steel disc holder with Aluminium/Zinc treatment.
- Double fire support available on all models.
- Single pack models all have a mounting kit ZNC85 included, for multi pack models the bracket must be ordered separately (ZNC85X10 cod. 211208).
- Highest reception quality for all high-definition programmes.
- High efficiency and excellent isolation from cross polarisation.
- Available in aluminium or steel in white, grey and brick red colours.
- Fracarro patent.
| P85RX10-A | ||
| Frequency range | MHz | 10700-12750 |
| Dimensions | cm | 77.5 x 77.5 |
| Offset angle | ° | 22.1 |
| Efficiency | % | ≥ 70 |
| Gain 10.95GHz | dB | 39 |
| Cross polarisation | dB | ˃38 |
| Side beam | dB | ˂-34 |
| Noise temperature | °K | 40 |
| Fornt back ratio | dB | 0.7 |
| Beam width (3dB) | ° | 2.2 |
| LNB Clamp | mm | 23-28; 40; 60 |
| Elevation angle | ° | ≤ 60 |
| Mast clamp | mm | 35-80 |
| Bracket material | Steel - aluminium/zinc treated | |
| Diameter | cm | 85 |
| Material | Steel | |
| Colour | Brick red | |
| Dual feed | DFP85 code 211001 | |
| Mounting kit | ZNC85X10 code 211208 | |
| Dimensions and packaging | ||
|---|---|---|
| Pieces | 10 | |
| EAN code | 8016978024513 | |
| Multiple EAN | 8016978024520 | |
| Packaging dimensions | mm | 840 x 840 x 300 |
| Packaging weight | Kg | 50 |
